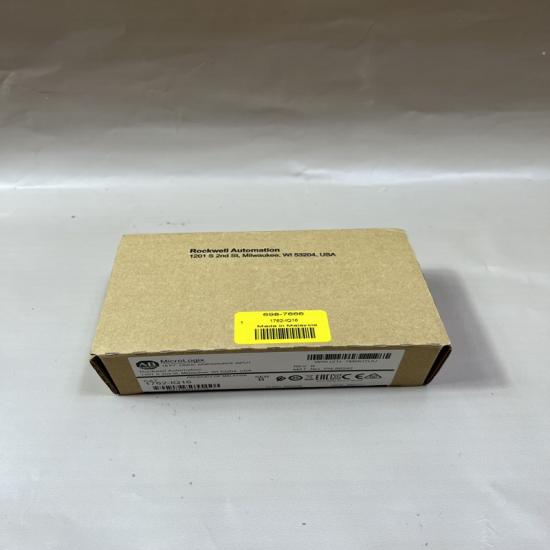

Allen-Bradley 1762-IQ16 MicroLogix Digital Input Module

Product Overview

The Allen-Bradley 1762-IQ16 MicroLogix Digital Input Module is a 16-point 24V DC digital input expansion module designed for the MicroLogix 1200 PLC system. It provides additional discrete input channels for monitoring switches, sensors, push buttons, and other field devices in industrial automation applications. The module supports sink/source input wiring and features LED status indicators for easy troubleshooting.

Specifications

Advantages & Features

• 16-channel digital input expansion capability
• Compatible with MicroLogix 1200 PLC systems
• Supports both sink and source input devices
• 24V DC industrial signal compatibility
• LED indicators simplify system diagnostics
• Compact modular design saves cabinet space
• Reliable signal acquisition for automation systems
• Easy installation with screw terminal wiring

Applications

• Industrial Automation Systems
• PLC Control Panels
• Machine Control Equipment
• Factory Production Lines
• Packaging Machinery
• Conveyor Systems
• Sensor Monitoring Systems
• Manufacturing Equipment

Precautions

• Confirm PLC compatibility before installation.
• Verify input voltage and wiring type.
• Ensure correct sink/source wiring configuration.
• Do not apply voltage beyond rated limits.
• Check module power consumption when expanding I/O.
• Disconnect power before installation or maintenance.
