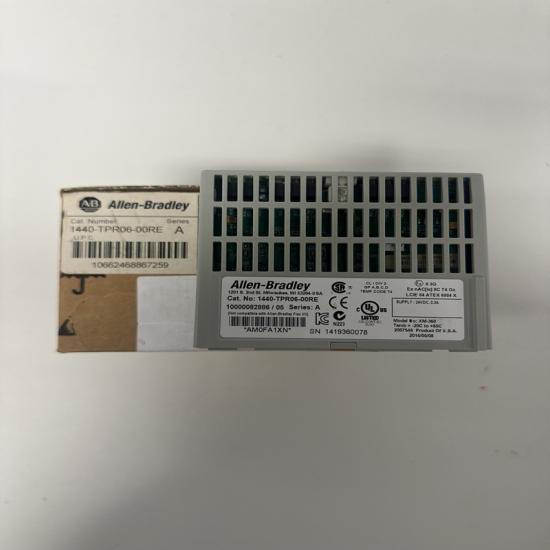

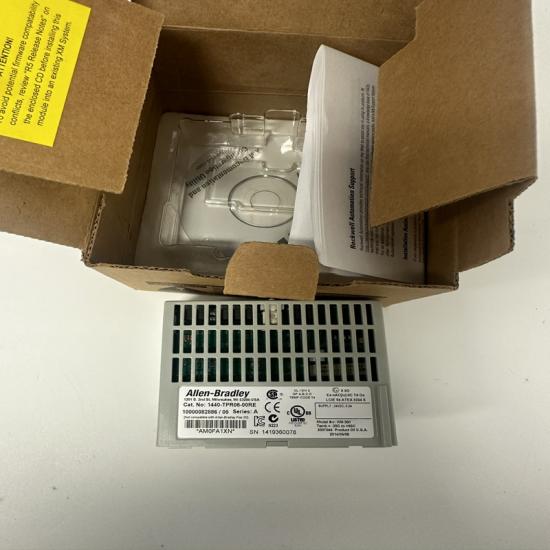

A-B 1440-TPR06-00RE Vibration Monitoring Module

A-B 1440-TPR06-00RE | Vibration Monitoring Module

Specifications

• Channels: 6 isolated analog inputs (voltage / current)
• Input Signals: ±10 VDC, 0–20 mA, 4–20 mA
• Resolution: 16‑bit
• Sampling Rate: Up to 100 Hz per channel
• Measurement Types: Vibration, pressure, flow, temperature, position
• Communication: Ethernet/IP, Modbus TCP (via 1440‑TB‑A base)
• Power Supply: 24 VDC ±10%, 150 mA
• Operating Temperature: 0 °C to +60 °C
• Protection: IP20 (module), IP65 (with terminal base)
• Mounting: DIN rail (with 1440‑TB‑A)
• Dimensions (W×H×D): 35 × 120 × 110 mm
• Weight: Approx. 0.45 kg

Key Features

1. Multi‑Purpose Monitoring: Measures vibration, process signals, and auxiliary parameters in one module.
2. High Channel Density: 6 channels reduce system cost and panel space.
3. Industrial Communication: Ethernet/IP for real‑time data integration with ControlLogix/CompactLogix.
4. Onboard Diagnostics: Channel‑level fault detection, overrange, and open‑circuit alarms.
5. Predictive Maintenance: Trend data and rate‑of‑change alerts enable condition‑based monitoring.

Applications

• Rotating machinery: motors, pumps, fans, compressors, turbines
• Process industries: oil & gas, chemical, power, water treatment
• Conveyor and material handling systems
• Factory automation and OEM equipment monitoring
