SIEMENS VIPA 331-7BF70 S7 Analog Input Module

Product Overview

Brand: SIEMENS VIPA
Model: 331-7BF70
Product Type: Analog Input Module
Series: VIPA System 300S / SM 331S FAST SPEED-Bus
Application: Industrial Automation / PLC Analog Signal Acquisition

The VIPA 331-7BF70 is an SM 331S FAST analog input module designed for the VIPA System 300S SPEED-Bus platform. It provides 8 analog voltage input channels with 16-bit resolution and is suitable for high-speed measurement applications requiring fast signal acquisition.

Technical Specifications

General Data

Brand: SIEMENS VIPA
Model: 331-7BF70
Series: System 300S
Module Type: SM 331S FAST Analog Input Module
Bus Type: SPEED-Bus
Input Channels: 8 Analog Inputs
Resolution: 16 Bit (15 Bit + Sign)
Input Type: Voltage Input
Isolation: Channel-to-channel and bus isolation
Mounting: VIPA System 300S rack / SPEED-Bus

Analog Input Specifications

Input Channels

Number of Analog Inputs: 8 channels
Signal Type: Voltage
Measuring Range: ±10 V DC
Input Resistance: Approx. 120 kΩ
Sensor Connection: Voltage sensors
Shielded Cable Length: Max. 50 m

Conversion Performance

High-Speed Sampling

Conversion Method: Successive approximation
Resolution: 16-bit
Conversion Time: Approx. 25 μs per channel
Synchronous Reading: All 8 channels
Fast acquisition function: Supported

Suitable for:

Fast process monitoring
Motion control feedback
Machine measurement systems

Electrical Specifications

Parameter	Specification
Supply Voltage	DC 24 V
Current Consumption (Backplane Bus)	Approx. 530 mA
Load Voltage Current	Approx. 62 mA
Power Dissipation	Approx. 4 W
Input Voltage Range	-10 V … +10 V
Maximum Input Voltage	30 V DC

Diagnostic Functions

The module supports:

Parameterizable diagnostic interrupt
Process alarm
Error monitoring
Group fault indication
SF (System Fault) LED indication

Diagnostic information can be read through the PLC system.

Isolation Characteristics

Provides electrical isolation:

Between input channels
Between channels and backplane bus
Between channels and power supply

Isolation test voltage:

DC 500 V

Maximum potential difference:

Input channels: DC 30 V
Channel to system: DC 75 V / AC 60 V

Communication Interface

SPEED-Bus Interface

The module communicates through VIPA SPEED-Bus:

Supported functions:

High-speed analog data transfer
Parameter configuration
Diagnostic communication
PLC process data exchange

Compatible with:

VIPA System 300S CPUs
VIPA SPEED-Bus controllers
Siemens S7-300 compatible systems

Mechanical Specifications

Mounting: DIN rail / System 300S rack
Dimensions: Approx. 40 × 125 × 120 mm
Weight: Approx. 235 g
Protection Class: IP20
Operating Temperature: 0…60 °C

Features & Advantages

High-Speed Analog Acquisition

Provides fast 16-bit analog signal processing for demanding industrial applications.

8-Channel Voltage Input

Supports multiple analog sensors in a compact module.

High Accuracy

Suitable for precise measurement and control applications.

Electrical Isolation

Improves system reliability and protects PLC components.

SPEED-Bus Performance

Provides faster communication compared with standard backplane modules.

Typical Applications

Industrial automation systems
Machine control
Motion control systems
Process monitoring
Pressure measurement
Position feedback
Temperature signal conditioning (with suitable transmitter)
Test and measurement equipment

Compatible Equipment

Commonly used with:

VIPA System 300S PLC CPUs
VIPA SPEED-Bus modules
Siemens S7-300 compatible automation systems
Analog voltage sensors
Industrial transmitters

Installation Precautions

Confirm the module is configured for voltage input (-10…+10 V) before wiring.
Do not connect current signals directly to this module.
Use shielded cables for analog signals.
Ensure correct polarity of analog input terminals.
Verify SPEED-Bus compatibility before replacement.
Avoid exceeding the maximum input voltage of 30 V DC.
Perform hardware configuration before operation.

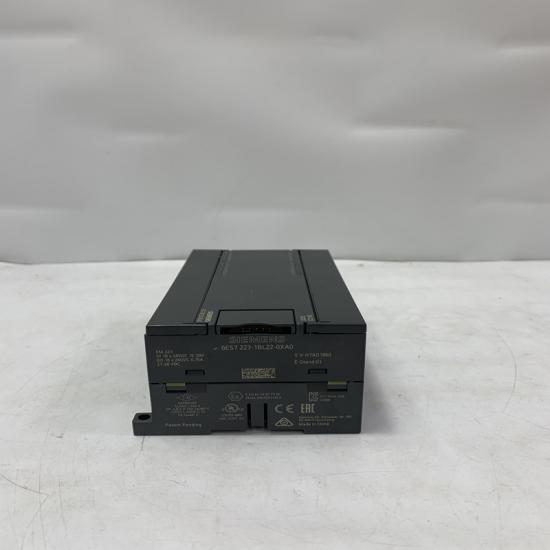

.The structure and details of the product：
