SIEMENS PXC100.D Programmable Controller

Product Description

The SIEMENS PXC100.D is a modular programmable controller from the PXC series, designed for building automation and industrial control systems. It serves as part of the APOGEE Automation System, offering flexible I/O expansion, advanced control algorithms, and multi-protocol communication (Ethernet TCP/IP, BACnet/IP, RS-485). Unlike compact PXC models (e.g., PXC16/24), the PXC100.D does not have built-in I/O points but supports extensive expansion via TX-I/O modules, enabling configurations of up to 500 physical points across 64 modules.

Key Features & Advantages

1. Flexible I/O Expansion

   • Supports two expansion methods:

     • "Self-Organized" Bus: Direct connection to TX-I/O modules (up to 64 modules/500 points)8.

     • "Extended" Bus: Uses PXX.485.3 expansion modules to add three FLN (Floor-Level Network) buses, each supporting additional TX-I/O modules.

   • TX-I/O technology allows software-configurable signal types (0–10V, 4–20mA, RTD, thermistors, digital I/O).

2. High-Performance Processing

   • 133 MHz PowerPC® MPC885 processor with 72 MB memory (for program execution and data storage).

   • Adaptive Control Algorithm (MFA): Self-learning PID logic for HVAC systems, reducing energy consumption and equipment wear.

3. Multi-Protocol Communication

   • Dual-network support:

     • Ethernet TCP/IP (10/100 Mbps) for BACnet/IP or APOGEE P2 protocols.

     • RS-485 (1200 bps–115.2 Kbps) for BACnet MS/TP or legacy P1 networks.

   • RS-232/USB ports for local programming and diagnostics.

4. Industrial Durability

   • U-type DIN rail or screw mounting for robust installation.

   • Wide operating temperature (standard and extended-range models for outdoor use).

5. Energy Management & Diagnostics

   • Built-in functions for peak load control, optimized start-stop scheduling, and fault detection.

   • LED status indicators for real-time monitoring.

Technical Specifications

Applications

• HVAC Control: Air handlers, chillers, VAV system.

• Lighting & Energy Management: Peak demand limiting, load shedding.

• Industrial Automation: Process monitoring, motor control.

Installation & Compatibility Notes

• Required Modules:

  • PXX.485.3 for FLN expansion.

  • TXS.12F4 power module for self-organized bus configurations.

• Software: Configured via Siemens PPCL (similar to BASIC) or APOGEE Insight.

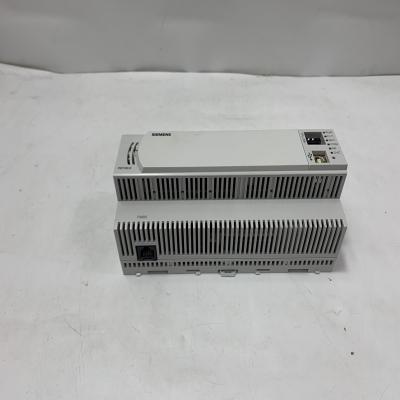

The structure and details of the product：
