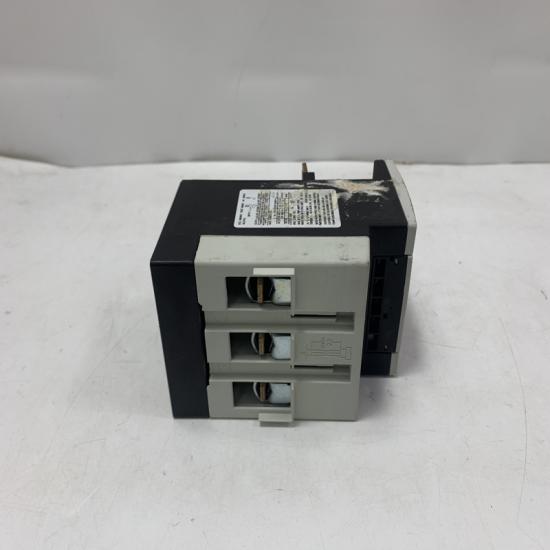

SIEMENS 6SL3040-1LA01-0AA0 Drive Control Unit

Overview

Key Specifications

1. Electrical Power

• Supply voltage: DC 24 V (20.4 ~ 28.8 V)
• Max power consumption: ≤20 W, rated input current ≤1.0 A
• Built-in encoder power supply: 5 V DC / 0.35 A or 24 V DC / 0.35 A

2. Onboard I/O Resources

• 11 fixed isolated digital inputs (24 V DC)
• 8 bidirectional configurable DI/DO (max 0.5 A per output channel, short-circuit protected)
• 1 analog input (0–10 V DC)
• High-speed capture input (5 μs trigger) for home position detection
• Integrated failsafe safety I/O supporting STO, SS1 safety functions (SIL3 / PL e)

3. Communication Interfaces

• Dual RJ45 PROFINET ports: Support RT real-time & IRT isochronous motion, also compatible with EtherNet/IP
• DRIVE-CLiQ port: Connect DRIVE-CLiQ motors, SMC encoder modules for TTL / HTL / SSI encoders
• RS232 diagnostic port: PC commissioning via STARTER / TIA Portal
• Slot for CF memory card for drive parameters, firmware and trace data

4. Mechanical & Environmental

• Dimensions (W×H×D): 73 mm × 191 mm × 75 mm
• Mounting: Standard DIN rail snap-on installation
• Protection class: IP20 (only for cabinet internal installation)
• Operating temperature: 0 °C ~ +55 °C (horizontal mounting)
• Max installation altitude: 1000 m without derating
• Compatible accessory: BOP20 basic operator panel for on-site parameter adjustment

Main Functions

1. Full single-axis servo motion control

   Supports vector control, sensorless vector control and high-precision closed-loop servo control; built-in electronic cam, flying shear, positioning table and synchronous gearing functions for high-speed positioning tasks.
2. Real-time industrial network communication

   Exchange motion commands, actual position, speed and fault data with S7-1200 / S7-1500 PLC via PROFINET IRT, realizing synchronized multi-axis coordination.
3. Universal encoder signal processing

   Directly read DRIVE-CLiQ motor encoders; expandable to TTL, HTL, SSI external encoders via SMC modules for various positioning feedback demands.
4. Integrated machine safety control

   Hardware STO safe torque off function and PROFIsafe communication, safely cut motor torque without external safety relays, complying with international machinery safety standards.
5. Comprehensive channel & drive diagnosis

   Real-time monitoring of overcurrent, overvoltage, overload, overheat, encoder failure, wire break and communication loss; fault codes displayed locally and uploaded to PLC/HMI.
6. Flexible on-site commissioning

   Support parameter configuration, motion trace debugging and firmware upgrade through TIA Portal or STARTER software; BOP20 panel enables quick parameter modification without laptop.

Advantages

• Compact single-axis dedicated design saves cabinet space compared with multi-axis CU320 series
• Dual-port PROFINET switch simplifies daisy-chain network wiring without extra switches
• Built-in safety I/O reduces external safety component costs and wiring workload
• Wide compatibility with DRIVE-CLiQ servo motors and standard incremental/absolute encoders
• High-speed IRT bus achieves microsecond-level synchronous motion for high-speed machines
• Complete fault diagnosis system shortens downtime for troubleshooting
• Wide temperature range fits continuous 24/7 operation in harsh industrial workshops
