SIEMENS 6ES7512-1DK01-0AB0 PLC CPU Module

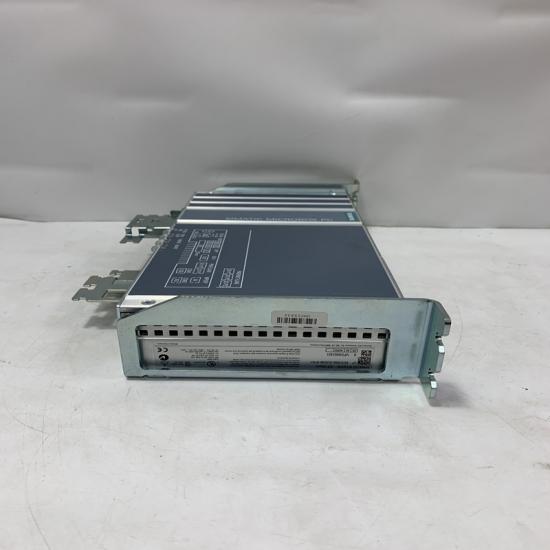

Siemens 6ES7512-1DK01-0AB0 PLC CPU Module (SIMATIC ET 200SP CPU 1512SP-1 PN)





The Siemens 6ES7512-1DK01-0AB0 is a SIMATIC ET 200SP CPU 1512SP-1 PN, a high-performance distributed PLC CPU for the ET 200SP automation platform. It combines the processing capabilities of an S7-1500 controller with the compact ET 200SP distributed I/O system, making it ideal for machine and process automation.

Key Specifications

• Model: 6ES7512-1DK01-0AB0
• Brand: Siemens
• Series: SIMATIC ET 200SP
• CPU Type: CPU 1512SP-1 PN
• Supply Voltage: 24 V DC
• Program Memory: 200 KB
• Data Memory: 1 MB
• Communication:
  • Integrated PROFINET IRT
  • Built-in 3-port Ethernet switch
• Processing Speed:
  • Bit operation: 48 ns
  • Word operation: 58 ns
• Memory Card: Requires a SIMATIC Memory Card
• Network: BusAdapter required for Ports 1 and 2
• Engineering Software: Siemens TIA Portal (V13 SP1 Update 4 or later, depending on firmware)

What it does (simple explanation)

Sensors / Field Devices

↓

CPU 1512SP-1 PN

↓

Executes PLC program

↓

Communicates via PROFINET

↓

Controls motors, valves, drives, and machines

It is the main controller (CPU) of an ET 200SP automation system.

Main Functions

• Executes PLC logic programs
• Processes digital and analog I/O data
• Controls industrial machinery and production lines
• Supports high-speed PROFINET communication
• Performs motion and process control
• Provides diagnostics and system monitoring
• Supports distributed I/O architecture

Key Features

• High-performance S7-1500 class CPU
• Compact ET 200SP design
• Integrated PROFINET IRT with 3-port switch
• Fast instruction execution
• Supports hot swapping of I/O modules
• Easy configuration using Siemens TIA Portal
• Expandable with ET 200SP I/O modules

Applications

• Manufacturing automation
• Packaging machinery
• Material handling systems
• Process control
• Assembly lines
• Water and wastewater treatment
• Food and beverage production
