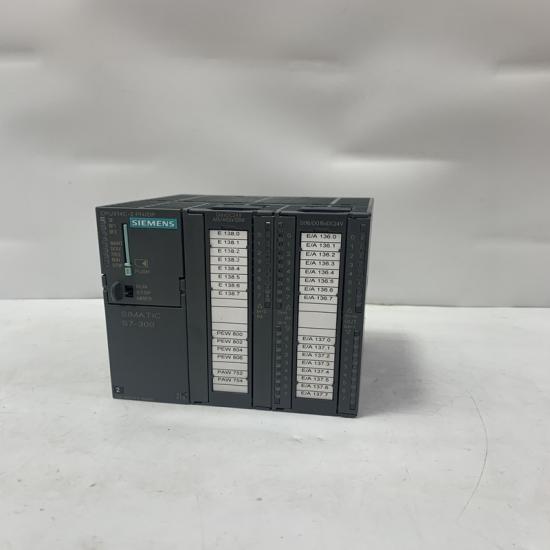

SIEMENS 6ES7314-6EH04-0AB0 Compact CPU module

The SIEMENS 6ES7314-6EH04-0AB0 compact CPU module is a core product of the SIMATIC S7-300 series, specifically designed for small and medium-sized automation control tasks. With its excellent computing performance, rich integrated functions, and reliable stability, this module is widely used in industries such as machinery manufacturing, food and beverage, and building automation, providing efficient and precise control solutions for industrial automation systems.

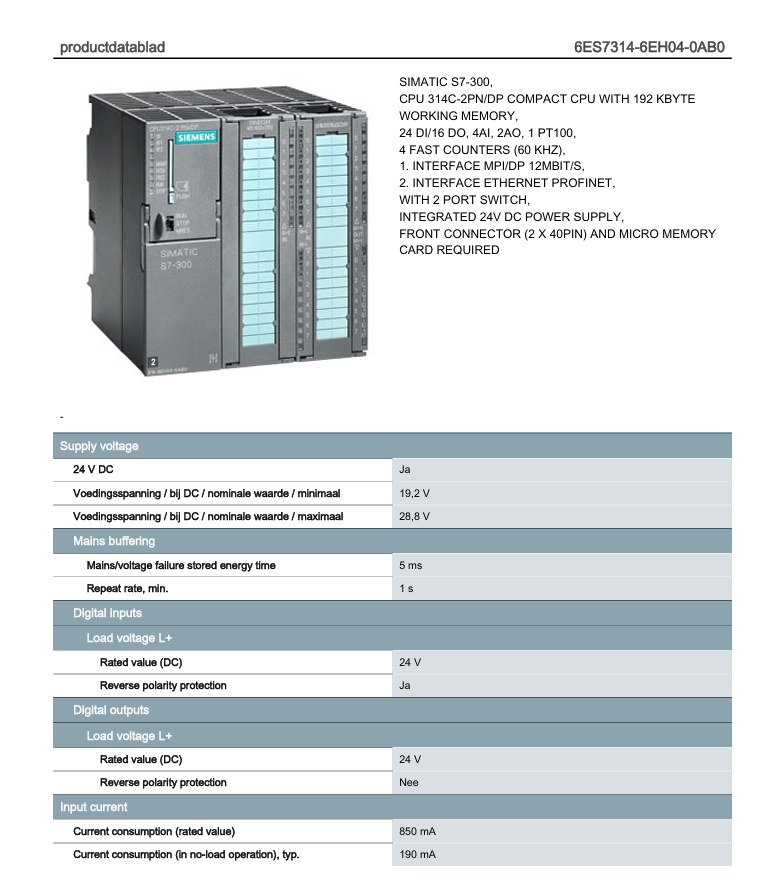

Product Specifications

Series Affiliation：As an important member of the SIMATIC S7-300 series, the 6ES7314-6EH04-0AB0 is highly compatible with other I/O modules, communication modules, etc. in the same series, and can be seamlessly integrated into the SIEMENS automation ecosystem to meet diverse industrial control requirements.

Performance Parameters：

Processor Performance: Equipped with a high-performance processor, it has fast instruction processing capabilities. The execution time of basic instructions is as short as 0.08 μs, which can efficiently handle complex control logic and ensure the real-time response of the automation system.

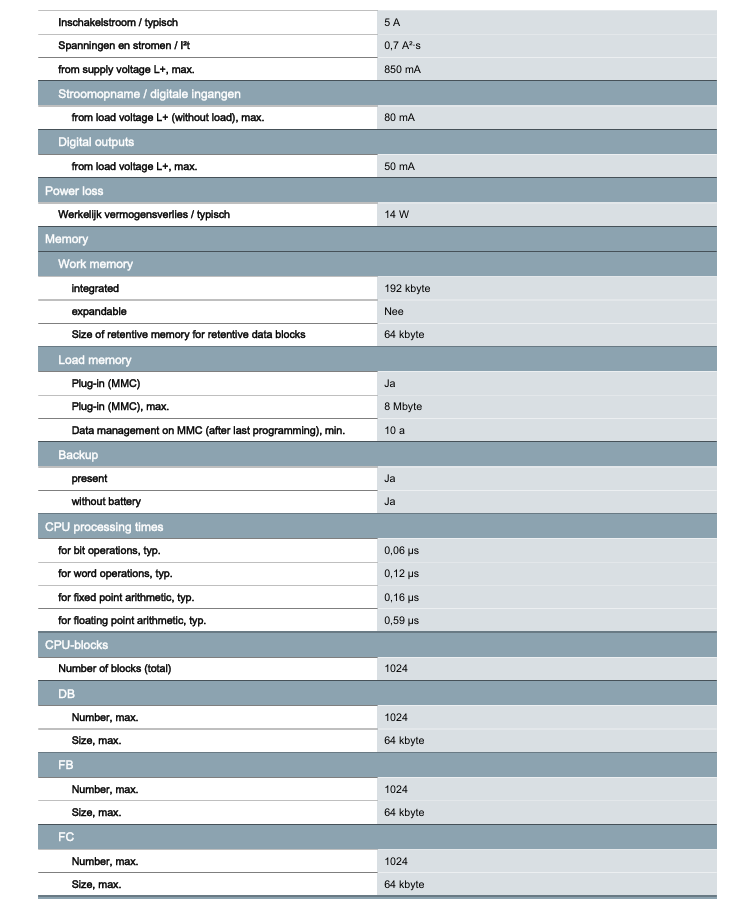

Memory Capacity: It is equipped with 192 KB of working memory, which can store a large number of user programs and data; it supports a maximum of 512 KB of load memory, facilitating the expansion of program capacity and the storage of recipes, data records, and other information.

Integrated Functions：

Digital I/O: It integrates 24 digital inputs and 16 digital outputs, which can be directly connected to devices such as buttons, indicator lights, and contactors to meet basic switching quantity control requirements.

Analog I/O: It has 4 analog input channels and 2 analog output channels, supporting multiple signal types (such as voltage, current), and can accurately collect and control analog parameters such as temperature, pressure, and flow rate.

Communication Interfaces：

Integrated with MPI (Multi-Point Interface), it supports communication with programming devices, HMIs, and other S7 series CPUs, with a transmission rate of up to 12 Mbps.

Equipped with a PROFINET interface, it supports IRT (Isochronous Real-Time) communication, and can connect distributed I/O devices, intelligent sensors, etc., to achieve high-speed and stable data interaction and build an efficient industrial communication network.

Programming and Debugging：It supports programming using STEP 7 programming software, covering multiple programming languages such as LAD (Ladder Diagram), FBD (Function Block Diagram), and ST (Statement List), making it convenient for engineers with different habits. At the same time, it has powerful diagnostic functions. Through LED indicators and the diagnostic buffer, faults can be quickly located, shortening the debugging and maintenance time.
