SIEMENS 6ES7288-2DR08-0AA0 SIMATIC S7-200 SMART Digital Module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • .

                                                                                                                                                                                                                    • Product Overview

                                                                                                                                                                                                                      The SIEMENS 6ES7288-2DR08-0AA0 is a SIMATIC S7-200 SMART EM DR08 digital output expansion module with 8 relay outputs. Each relay output can switch loads up to 2 A, making it suitable for controlling various AC or DC loads in industrial automation systems.

                                                                                                                                                                                                                      Technical Specifications

                                                                                                                                                                                                                      Item	Specification
                                                                                                                                                                                                                      Brand	SIEMENS
                                                                                                                                                                                                                      Model	6ES7288-2DR08-0AA0
                                                                                                                                                                                                                      Product Family	SIMATIC S7-200 SMART
                                                                                                                                                                                                                      Module Type	Digital Output Expansion Module
                                                                                                                                                                                                                      Model	EM DR08
                                                                                                                                                                                                                      Digital Outputs	8
                                                                                                                                                                                                                      Output Type	Relay / Dry Contact
                                                                                                                                                                                                                      Rated Supply Voltage	24 V DC
                                                                                                                                                                                                                      Permitted Supply Range	20.4–28.8 V DC
                                                                                                                                                                                                                      Rated Output Current	2 A per channel
                                                                                                                                                                                                                      Relay Coil Voltage	24 V DC
                                                                                                                                                                                                                      Output Delay	Max. 10 ms ON/OFF
                                                                                                                                                                                                                      Short-Circuit Protection	No
                                                                                                                                                                                                                      Channel Isolation	Yes
                                                                                                                                                                                                                      Isolation Test	1500 V AC / 1 min
                                                                                                                                                                                                                      Protection Rating	IP20
                                                                                                                                                                                                                      Dimensions	45 × 100 × 81 mm
                                                                                                                                                                                                                      Weight	Approx. 166.3 g
                                                                                                                                                                                                                      Mounting	DIN Rail

                                                                                                                                                                                                                      The relay contacts support 5–30 V DC or 5–250 V AC, subject to the applicable load and switching specifications.

                                                                                                                                                                                                                      Advantages & Features

                                                                                                                                                                                                                      • 8 independent relay outputs for flexible load control.
                                                                                                                                                                                                                      • 2 A switching capacity per channel.
                                                                                                                                                                                                                      • Relay dry contacts allow switching of different voltage types.
                                                                                                                                                                                                                      • Electrical isolation between output channels.
                                                                                                                                                                                                                      • Compact design for space-saving control cabinets.
                                                                                                                                                                                                                      • LED status indication for output monitoring.
                                                                                                                                                                                                                      • Designed specifically for the S7-200 SMART expansion system.

                                                                                                                                                                                                                      Typical Applications

                                                                                                                                                                                                                      • Factory automation
                                                                                                                                                                                                                      • Machine control
                                                                                                                                                                                                                      • Conveyor systems
                                                                                                                                                                                                                      • Packaging equipment
                                                                                                                                                                                                                      • Motor and actuator control
                                                                                                                                                                                                                      • Solenoid valve control
                                                                                                                                                                                                                      • Industrial control panels
                                                                                                                                                                                                                      • Production line automation

                                                                                                                                                                                                                      Installation & Usage Notes

                                                                                                                                                                                                                      • Designed for use with the SIMATIC S7-200 SMART system.
                                                                                                                                                                                                                      • Use a 24 V DC supply within the specified 20.4–28.8 V DC range.
                                                                                                                                                                                                                      • Do not exceed the 2 A rated current per relay output.
                                                                                                                                                                                                                      • External protection may be required for inductive loads.
                                                                                                                                                                                                                      • Verify AC/DC voltage and load type before wiring.
                                                                                                                                                                                                                      • Disconnect power before installation or maintenance.
                                                                                                                                                                                                                      • Configure the module using compatible STEP 7-Micro/WIN SMART software.
                                                                                                                                                                                                                      • This is an 8-channel relay output expansion module, not a CPU

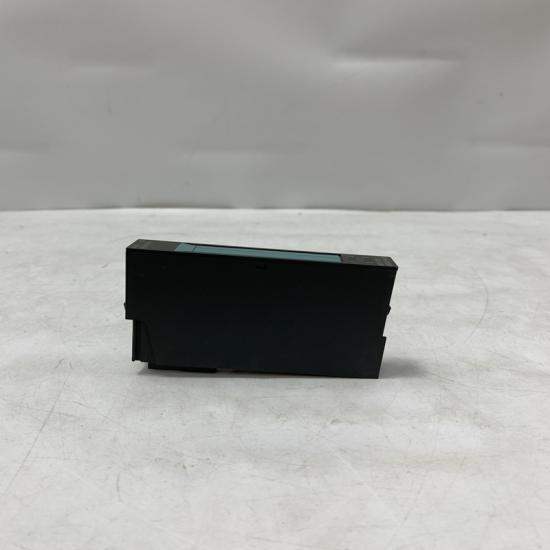

.The structure and details of the product：
