                                                                                                                                                                                                                                                                                                                                                                Product Overview
                                                                                                                                                                                                                                                                                                                                                                The SIEMENS 6ES7231-4HD32-0XB0 is a SIMATIC S7-1200 SM 1231 analog input module with 4 analog input channels. It supports both differential voltage and current signals, making it suitable for connecting analog sensors and transmitters to S7-1200 PLC systems. Siemens specifies 12-bit + sign resolution (13-bit ADC).

                                                                                                                                                                                                                                                                                                                                                                Key Technical Specifications

                                                                                                                                                                                                                                                                                                                                                                Parameter	Specification
                                                                                                                                                                                                                                                                                                                                                                Brand	Siemens
                                                                                                                                                                                                                                                                                                                                                                Model	6ES7231-4HD32-0XB0
                                                                                                                                                                                                                                                                                                                                                                Series	SIMATIC S7-1200
                                                                                                                                                                                                                                                                                                                                                                Module Type	SM 1231 Analog Input
                                                                                                                                                                                                                                                                                                                                                                Analog Inputs	4 AI
                                                                                                                                                                                                                                                                                                                                                                Input Type	Differential voltage/current
                                                                                                                                                                                                                                                                                                                                                                Voltage Ranges	±10 V, ±5 V, ±2.5 V
                                                                                                                                                                                                                                                                                                                                                                Current Ranges	0–20 mA, 4–20 mA
                                                                                                                                                                                                                                                                                                                                                                Resolution	12 bit + sign / 13-bit ADC
                                                                                                                                                                                                                                                                                                                                                                Rated Supply Voltage	24 V DC
                                                                                                                                                                                                                                                                                                                                                                Typical Current Consumption	45 mA
                                                                                                                                                                                                                                                                                                                                                                Backplane Bus Current	80 mA @ 5 V DC
                                                                                                                                                                                                                                                                                                                                                                Typical Power Loss	1.5 W
                                                                                                                                                                                                                                                                                                                                                                Max. Cycle Time	625 μs for all channels
                                                                                                                                                                                                                                                                                                                                                                Voltage Input Resistance	≥9 MΩ
                                                                                                                                                                                                                                                                                                                                                                Current Input Resistance	280 Ω
                                                                                                                                                                                                                                                                                                                                                                Thermocouple Input	No
                                                                                                                                                                                                                                                                                                                                                                RTD Input	No
                                                                                                                                                                                                                                                                                                                                                                Approx. Dimensions	45 × 100 × 75 mm
                                                                                                                                                                                                                                                                                                                                                                Approx. Weight	0.152 kg

                                                                                                                                                                                                                                                                                                                                                                Specifications are based on Siemens' official datasheet and product catalog.

                                                                                                                                                                                                                                                                                                                                                                Advantages & Features

                                                                                                                                                                                                                                                                                                                                                                • 4-channel analog input module
                                                                                                                                                                                                                                                                                                                                                                • Supports both voltage and current signals
                                                                                                                                                                                                                                                                                                                                                                • Wide input ranges: ±10 V, ±5 V, ±2.5 V, 0–20 mA and 4–20 mA
                                                                                                                                                                                                                                                                                                                                                                • 12-bit + sign resolution
                                                                                                                                                                                                                                                                                                                                                                • Differential inputs for improved signal acquisition
                                                                                                                                                                                                                                                                                                                                                                • Fast conversion with a maximum all-channel cycle time of 625 μs
                                                                                                                                                                                                                                                                                                                                                                • Designed specifically for SIMATIC S7-1200 systems

                                                                                                                                                                                                                                                                                                                                                                Typical Applications

                                                                                                                                                                                                                                                                                                                                                                • Industrial process monitoring
                                                                                                                                                                                                                                                                                                                                                                • Pressure, flow and level measurement
                                                                                                                                                                                                                                                                                                                                                                • Temperature transmitter signal acquisition
                                                                                                                                                                                                                                                                                                                                                                • Machine automation
                                                                                                                                                                                                                                                                                                                                                                • Production-line monitoring
                                                                                                                                                                                                                                                                                                                                                                • Analog sensor and transmitter interfaces

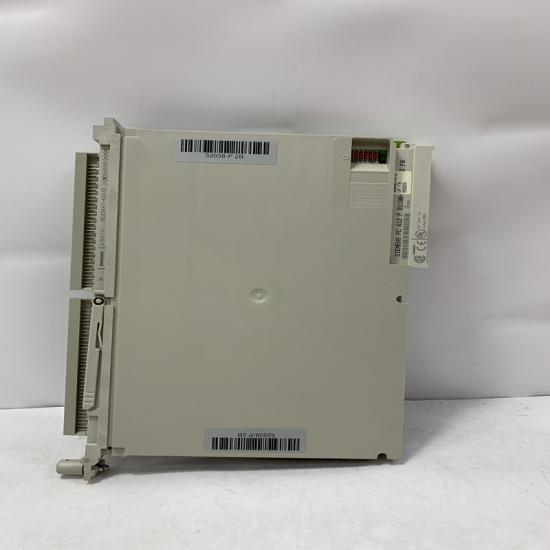

.The structure and details of the product：
