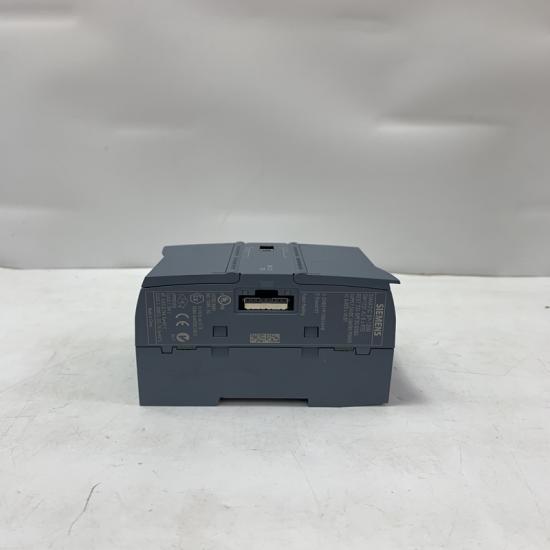

SIEMENS 6ES7214-1AG40-0XB0 PLC CPU Module

Siemens 6ES7214-1AG40-0XB0 PLC CPU Module (S7-1200 CPU 1214C DC/DC/DC)





The Siemens 6ES7214-1AG40-0XB0 is a SIMATIC S7-1200 series PLC CPU (CPU 1214C DC/DC/DC) used as a compact controller for small to medium industrial automation systems. It is the main logic controller (brain) of the PLC system, integrating CPU, power, digital I/O, and communication in one unit.

Key Specifications

• Model: 6ES7214-1AG40-0XB0
• Brand: Siemens
• Series: SIMATIC S7-1200
• Type: Compact PLC CPU (CPU 1214C)
• Power Supply: 24V DC
• Integrated I/O:
  • 14 × Digital Inputs (24V DC)
  • 10 × Digital Outputs (24V DC transistor)
  • 2 × Analog Inputs (0–10V)
• Communication:
  • Built-in PROFINET (Ethernet port)
• Memory:
  • Program memory ~100–150 KB (depending firmware)
• High-Speed Functions:
  • High-speed counters up to 100 kHz
  • Pulse outputs (PTO/PWM)
• Expansion:
  • Supports SM modules, SB signal boards, CM communication modules

What it does (simple explanation)

Sensors / switches / field devices
↓
S7-1200 CPU 1214C (this module)
↓
Processes logic program (ladder / FBD / STL)
↓
Outputs signals to machines
↓
Drives / relays / actuators

It is the central brain of the automation system.

Main Functions

• Executes PLC logic programs (LAD / FBD / SCL)
• Reads digital and analog inputs
• Controls outputs (motors, relays, valves)
• Communicates via PROFINET Ethernet
• Performs timing, counting, and PID control
• Handles high-speed signal processing (encoders, pulses)

Key Features

• All-in-one compact PLC (CPU + I/O integrated)
• Industrial Ethernet (PROFINET) built-in
• Expandable system architecture
• High-speed counters for motion/pulse applications
• Suitable for small machine automation
• Easy integration with Siemens TIA Portal

Applications

• Small and medium machine control
• Conveyor systems
• Packaging machines
• Pump and HVAC systems
• Assembly automation
• Simple motion control applications
