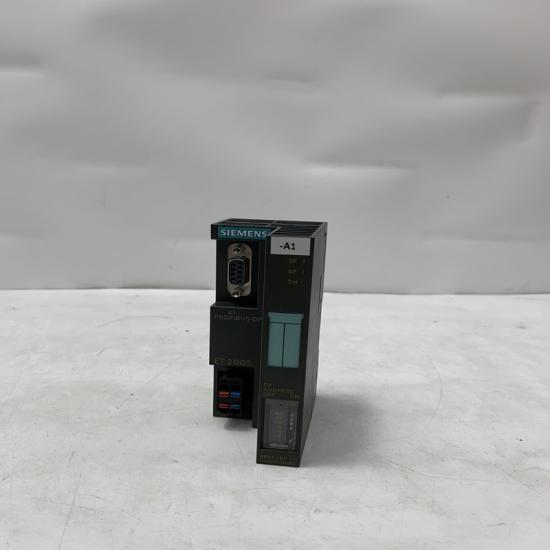

SIEMENS 6ES7151-1AA06-0AB0 IM151-1 STANDARD Interface Module

Product Overview

The SIEMENS 6ES7151-1AA06-0AB0 is a PROFIBUS-DP interface module designed for the ET 200S distributed I/O system. It serves as a standard communication gateway, enabling seamless integration of up to 63 I/O modules with PROFIBUS-DP networks (V0 and V1). This module is widely used in industrial automation for machine control, process monitoring, and distributed I/O applications .

Key Features

PROFIBUS-DP Communication
- Supports PROFIBUS-DP V0/V1 with transmission rates up to 12 Mbps .
- 9-pin Sub-D connector for bus connection .
High I/O Capacity
- 244 bytes of input/output data per module .
- Supports up to 63 I/O modules (max. 2m width per station) .
Robust Industrial Design
- Power supply: 24V DC (200 mA max. current draw) .
- Operating temperature: 0°C to +60°C .
- Compact dimensions: 45 × 119.5 × 75 mm (W × H × D) .
Diagnostics & Safety
- LED indicators for bus fault (BF), system fault (SF), and power status (ON) .
- 500V AC isolation between PROFIBUS and backplane bus .
Easy Integration
- Plug-and-play installation with ET 200S I/O modules .
- Hot-swappable (with 20 ms power interruption tolerance) .

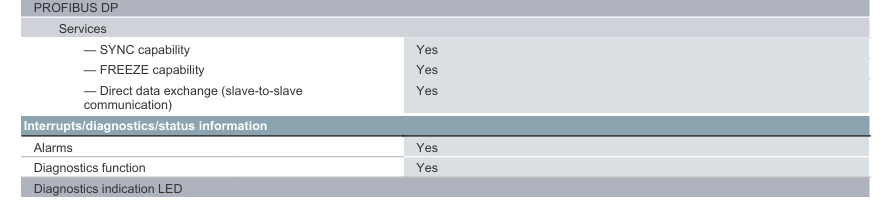

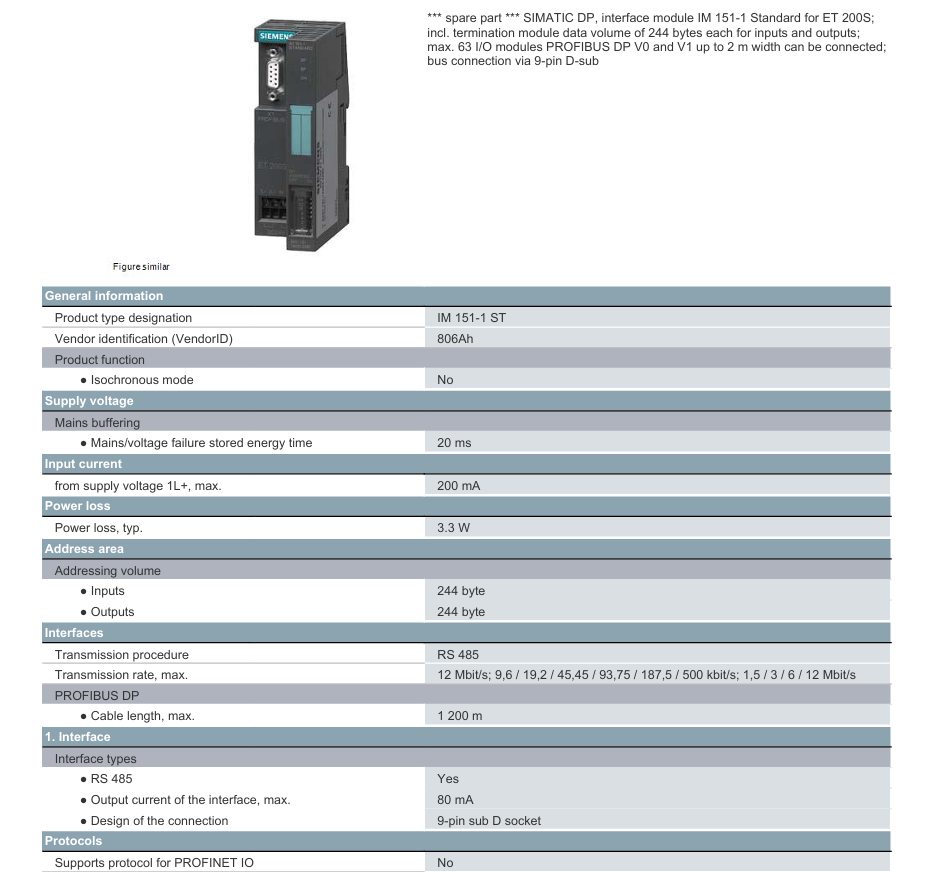

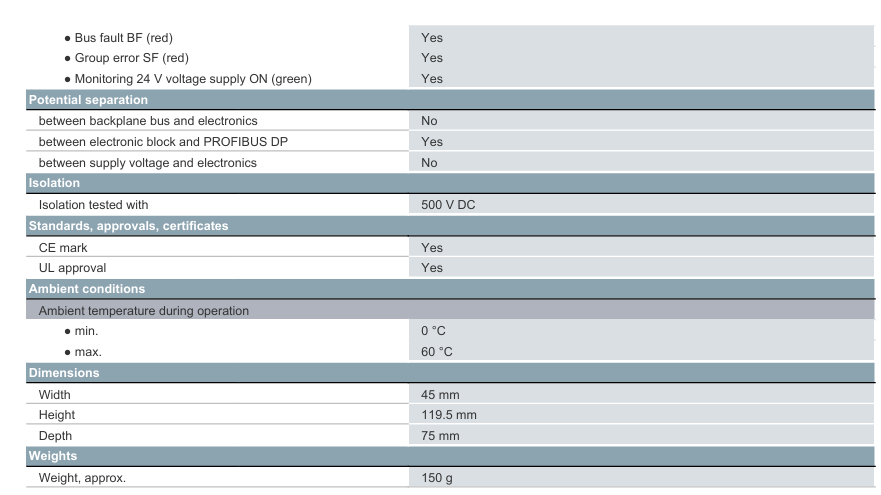

Technical Specifications

Parameter	Specification
Model	6ES7151-1AA06-0AB0
Series	SIMATIC ET 200S (IM151-1 STANDARD)
Communication	PROFIBUS-DP (V0/V1)
Max. I/O Modules	63
Data Capacity	244 bytes (input/output)
Power Supply	24V DC (200 mA max.)
Dimensions	45 × 119.5 × 75 mm
Certifications	CE, UL, RoHS
