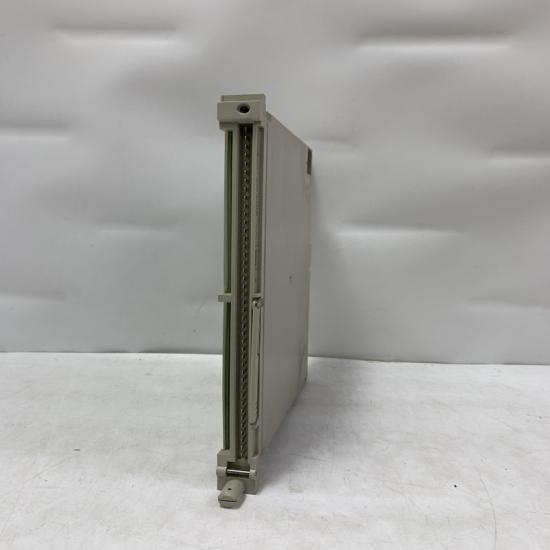

SIEMENS 6ES5470-4UC12 Analog Output Module

Product Description

The SIEMENS 6ES5470-4UC12 is a floating analog output module from the SIMATIC S5 series, designed for industrial automation systems. It provides 8 channels of analog outputs with configurable voltage (+1 to 5V) and current (+4 to 20mA) ranges, making it ideal for precise control of actuators, valves, and other analog devices in PLC-based systems .

Key Features & Advantages

High-Precision Analog Outputs
- 8 isolated channels supporting +1 to 5V (voltage) and +4 to 20mA (current) outputs .
- Floating (ungrounded) design for noise immunity in harsh industrial environments .
Compact & Modular Design
- Compact version (U-type) for space-efficient integration into S5-115U/F PLC racks .
- Screw terminal connections for secure wiring .
Industrial Durability
- Wide operating temperature range (standard industrial ratings) .
- EMC-compliant for stable performance in electrically noisy environments .
Compatibility
- Designed for SIMATIC S5-115U/F PLCs and compatible with ET 200 distributed I/O systems .

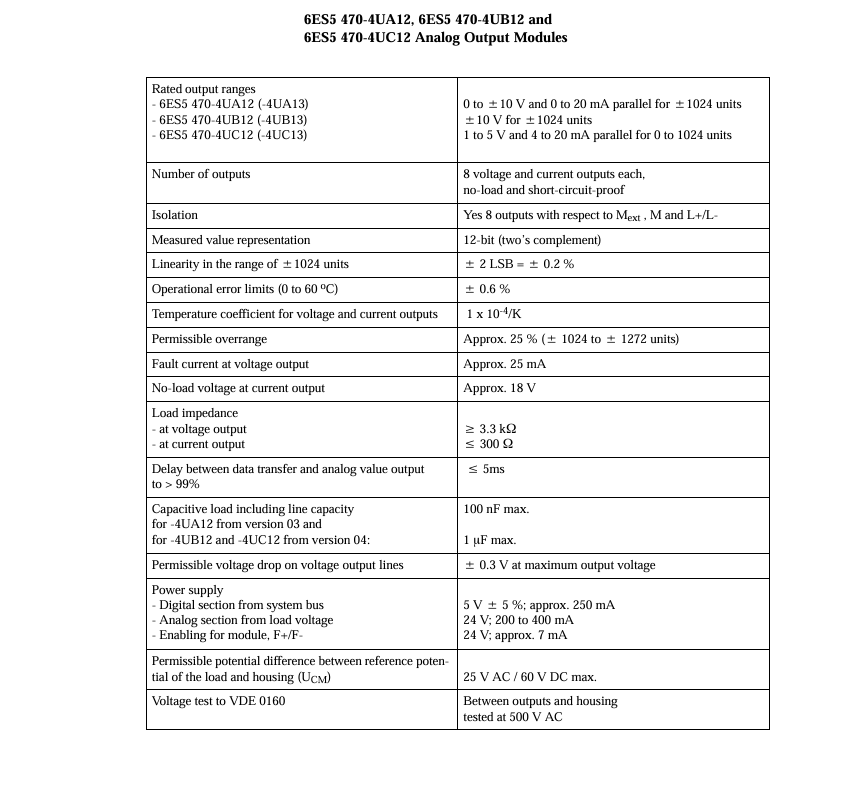

Technical Specifications

Parameter	Specification
Output Channels	8 (floating)
Voltage Range	+1 to 5V
Current Range	+4 to 20mA
Resolution	12-bit (typical for S5 analog modules)
Isolation	Channel-to-backplane (500V DC)
Power Supply	24V DC (via PLC backplane)
Dimensions	Standard S5 module size
Weight	0.32kg

Applications

Process Control: Regulating valves, pumps, and heaters.
Industrial Automation: Analog signal generation for motor speed control.
Test & Measurement Systems: Precision current/voltage sourcing .

Installation & Safety Notes

Wiring: Use shielded twisted-pair cables for analog outputs to reduce EMI .
Grounding: Ensure proper grounding of the PLC rack to avoid noise interference .
Environment: Avoid condensation and dust (IP20 protection assumed) .
