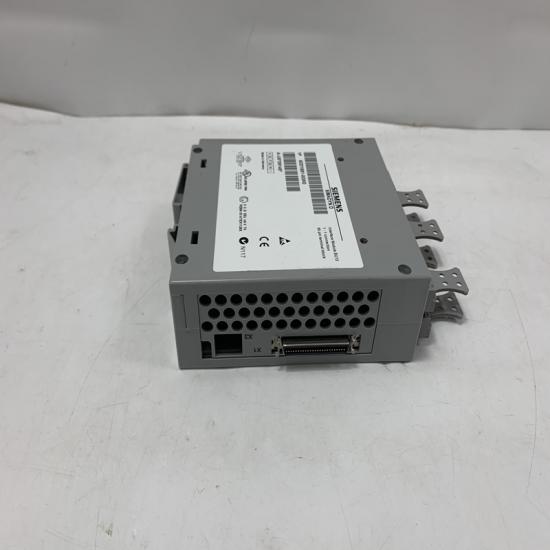

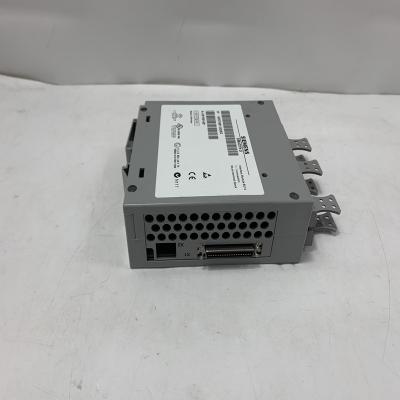

SIEMENS 6EQ2020-0AB12-5XX0 Industrial Controller Module

Siemens 6EQ2020-0AB12-5XX0 Industrial Controller Module





The Siemens 6EQ2020-0AB12-5XX0 is an industrial controller / industrial computer module used in Siemens APACS+ / QUADLOG control systems. It is based on a SIMATIC Box PC 627B platform, integrating industrial Ethernet communication, system processing, and control functions for legacy process automation systems.

It is mainly found in older distributed control systems (DCS) and is now considered a discontinued legacy automation controller.

Key Specifications

• Model: 6EQ2020-0AB12-5XX0
• Product Type: Industrial Controller / Industrial PC Module
• Platform: Siemens SIMATIC Box PC 627B
• System: APACS+ / QUADLOG DCS
• Communication: Industrial Ethernet (RJ45 onboard)
• Storage: CompactFlash system memory
• Power Supply: 100–240 V AC, 50/60 Hz
• Function: Process control + system communication + data processing
• Software: APACS+/QUADLOG system software (legacy V2.1)
• Installation: Cabinet-mounted industrial computer module
• Status: Discontinued / legacy product

Features & Advantages

• Integrated industrial PC + control system architecture
• Ethernet-based communication for APACS+/QUADLOG systems
• Stable operation in continuous industrial environments
• Designed for large-scale process control systems
• Modular system integration with Siemens legacy DCS
• Suitable for long-life industrial installations
• Reliable hardware for mission-critical plant control

Applications

• APACS+ distributed control systems
• QUADLOG industrial automation systems
• Power generation plants
• Oil & gas process control systems
• Chemical and petrochemical industries
• Heavy industrial legacy automation systems
• Large-scale process monitoring and control

Precautions

• This is a legacy/discontinued system component
• Compatibility limited to APACS+/QUADLOG platforms
• Replacement requires system-level configuration and software support
• Sensitive to firmware/software version matching
• Ensure proper industrial grounding and cabinet cooling
• Handling and maintenance should be done by qualified engineers
• Spare parts availability may be limited
