SIEMENS 3RN1012-1CB00 Thermistor Motor Protection Relay

Product Description

The SIEMENS 3RN1012-1CB00 is a thermistor-based motor protection relay designed to directly monitor motor winding temperature via PTC (Positive Temperature Coefficient) sensors. It provides overheating protection for motors in industrial applications where conventional current-based protection (e.g., circuit breakers) may fail, such as variable-speed drives, frequent starts/stops, or poor cooling conditions.

Key Features & Advantages

1. Precise Temperature Monitoring

   • Uses PTC sensors embedded in motor windings for direct temperature measurement, eliminating the need for current-based calibration

   • Dual-sensor channels: One for alarm (warning) and another for trip (shutdown), allowing preventive actions (e.g., cooling) before motor failure.

2. Robust Industrial Design

   • Hard gold-plated contacts for reliable switching in harsh environments (e.g., dust, humidity).

   • LED indicators for sensor circuit faults (open/short circuit detection).

   • Screw-type terminals for secure wiring.

3. Flexible Configuration

   • Supports 24V AC/DC power supply and wide voltage ranges (e.g., 230V AC variants available).

   • 1 NO (Normally Open) + 1 NC (Normally Closed) auxiliary contacts for integration with control systems.

4. Certifications & Safety

   • ATEX-certified for explosive atmospheres.

   • IP20 protection against dust and accidental contact.

Technical Specifications

Applications

• Motor Protection: Centrifugal pumps, conveyors, fans.

• HVAC Systems: Compressors, blowers.

• Heavy Industry: Rolling mills, paper machines.

Installation & Safety Notes

• Sensor Wiring: Use shielded cables for PTC sensors to avoid interference.

• Testing: Regularly verify sensor continuity and relay response.

• Environment: Avoid installation in condensation-prone areas (IP20 rating).

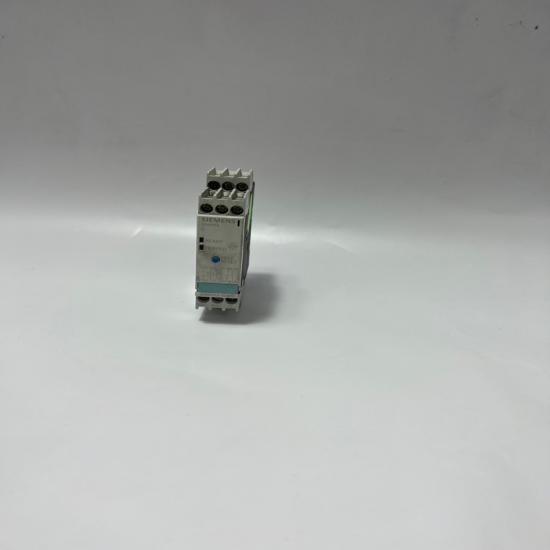

The structure and details of the product：
