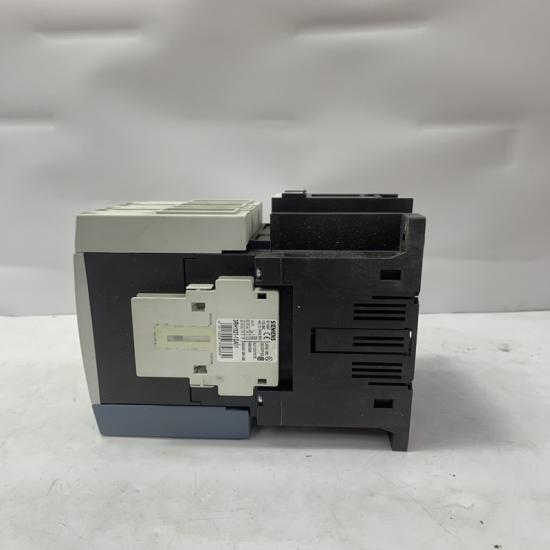

SIEMENS 3RK1308-0BD00-0CP0 Motor Starter

Item NO.:
3RK1308-0BD00-0CP0
Market Price:
$500
Product Origin:
Germany
Color:
NEW
Product weight:
0.01KG
Lead Time:
In stock

The SIEMENS 3RK1308-0BD00-0CP0 is an ET 200SP High Feature Reversing Motor Starter with electronic switching and electronic overload protection. It is designed for controlling the forward and reverse rotation of three-phase AC motors, with an adjustable current range of 2.8–9 A and motor power up to 4 kW at 400 V.

Key Technical Specifications

Specification	Details
Manufacturer	SIEMENS
Model	3RK1308-0BD00-0CP0
Series	SIMATIC ET 200SP
Product Type	Reversing Motor Starter
Version	High Feature
Switching Technology	Electronic / Hybrid
Motor Type	3-phase AC motor
Rated Operating Voltage	48–500 V AC
Rated Frequency	50/60 Hz
Adjustable Current	2.8–9 A
Rated Current at 400 V	9 A
Motor Power at 400 V	1.5–4 kW
Overload Protection	Electronic / Solid-state
Short-Circuit Protection	Fuse
Control Supply	24 V DC
Permitted Control Voltage	20.4–28.8 V DC
Communication	PROFINET / PROFIBUS DP
PROFIenergy	Supported
Protection Rating	IP20
Dimensions	30 × 142 × 150 mm
Weight	Approx. 0.577 kg
Operating Temperature	-25 to +60 °C
Mounting	Plug-in ET 200SP BaseUnit

Siemens identifies this exact model as the RS 2.8–9 A HF reversing starter. It supports both direct and reverse starting, with a maximum short-circuit breaking capacity of 55 kA at 400/500 V.

Advantages & Features

High Feature ET 200SP reversing motor starter
Forward/reverse motor control
Adjustable electronic overload protection
2.8–9 A adjustable current range
Supports motors up to 4 kW at 400 V
Electronic/hybrid switching technology
Integrated short-circuit protection
PROFINET and PROFIBUS DP communication
PROFIenergy support
Compact design for distributed automation systems

Typical Applications

Industrial motor control
Conveyor systems
Pumps and fans
Material handling equipment
Production machinery
Automated machinery
SIMATIC ET 200SP distributed I/O systems

Installation & Usage Notes

Requires a compatible ET 200SP BaseUnit.
Set the overload current according to the motor's rated current.
Verify the motor voltage and current before commissioning.
Use a 24 V DC control supply within the specified range.
Ensure proper short-circuit protection and cabinet ventilation.
Observe Siemens derating requirements, especially at elevated ambient temperatures.
The unit supports vertical or horizontal mounting, with derating requirements for horizontal installation.
