HIMA X-CB 001 02 Safety Controller Module

Product Overview

Brand: HIMA
Model: X-CB 001 02
Product Type: Connector Board / Base Interface Board
Series: HIMax Safety System
Application: Safety Instrumented System (SIS) Hardware Interface

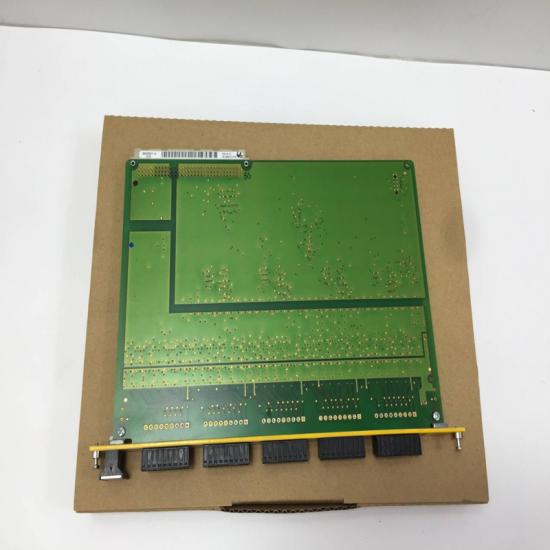

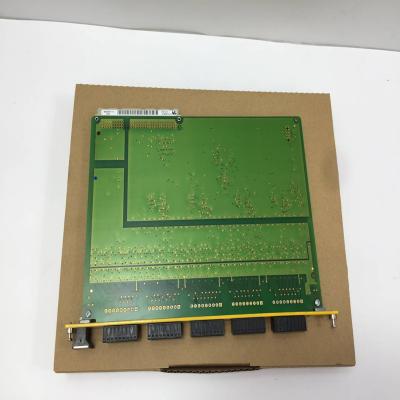

The HIMA X-CB 001 02 is a HIMax connector board used to connect HIMA HIMax safety modules with external systems through Ethernet and fieldbus interfaces. It is not a standalone safety controller CPU module; instead, it works together with modules such as X-COM 01 communication module to provide the required electrical connections and field interfaces.

Technical Specifications

General Data

• Brand: HIMA
• Model: X-CB 001 02
• Series: HIMax
• Type: Connector Board / Interface Board
• Function: Module interface and communication connection
• Compatible System: HIMax Safety Controller Platform
• Installation: HIMax baseplate mounting
• Protection Rating: IP20 (system dependent)

Main Functions

Module Connection Interface

The X-CB 001 02 provides the connection between HIMax modules and external wiring systems.

Functions include:

• Module electrical connection
• Ethernet interface connection
• Fieldbus interface connection
• Signal routing between module and external devices

Each compatible module forms a functional unit with the connector board.

Compatible Modules

Commonly used with:

• HIMA X-COM 01 Communication Module
• HIMax processor and system modules
• HIMax safety I/O modules

For example:

• X-COM 01 + X-CB 001 02 form a communication module assembly.

Interface Features

Communication Interfaces

Supports connection for:

• Ethernet communication
• Fieldbus interfaces
• External automation networks

Typical communication protocols used in HIMax systems include:

• SafeEthernet
• Modbus TCP
• PROFIBUS DP
• PROFINET / PROFIsafe
• Modbus RTU
• OPC communication

Mechanical Specifications

Features & Advantages

High Reliability Safety Architecture

Designed for HIMA HIMax safety systems used in SIL-rated applications.

Flexible Communication Expansion

Provides the physical interface required for communication modules.

Modular Design

Allows easy replacement and expansion of HIMax system components.

Industrial Safety Application

Supports high-availability safety control solutions.

Typical Applications

• Safety Instrumented Systems (SIS)
• Emergency Shutdown Systems (ESD)
• Fire & Gas Systems (F&G)
• Burner Management Systems
• Turbomachinery Protection
• Process Safety Automation
• Railway safety systems

Compatible Systems

Commonly used in:

• HIMA HIMax Safety Controller
• SIL 3 / SIL 4 safety applications
• Industrial process protection systems
• Critical infrastructure automation

Installation Precautions

• Confirm compatibility with the specific HIMax module before installation.
• Install only on the correct HIMax baseplate position.
• Ensure proper grounding and shielding.
• Do not replace connector boards while the system is energized.
• Verify communication module configuration after replacement.
• Perform safety system validation after maintenance.
