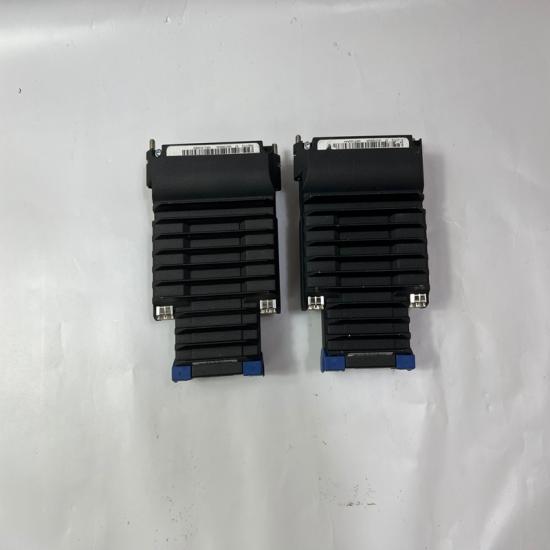

FOXBORO FBM207C Fieldbus Module

Overview

Model Matching

• Main module part: FBM207C (circuit board P0917GY)
• Supporting terminal base: RH917GY spring-clamp termination assembly (tool-free wiring)

Core Technical Specifications

1. Channel & Signal Features

• Total channels: 16 independent galvanically isolated discrete input channels
• Signal type: Dry contact NO/NC switch, solid-state proximity switch
• Isolation performance: 1500V AC channel-to-channel & channel-to-ground optical isolation, single-channel short circuit will not crash the whole module
• Debounce filter: Configurable 0 / 4 / 8 / 16 / 32ms anti-jitter filtering to eliminate contact bounce interference
• Pulse counting support: Capture pulses up to 250Hz without missing pulses, suitable for flow pulse meters
• SOE event timestamp: High-precision time stamp for interlock trip, fault alarm sequence recording

2. Electrical Parameters

• System power supply: 24VDC (18~32VDC)
• On-board excitation: 24VDC internal field power for contact sensing
• Matching terminal assemblies support multi-level external signals: 60VDC / 120VAC/125VDC / 240VAC high-voltage contact signals
• Max power consumption: ~5W
• Internal bus: Redundant 2Mbps proprietary I/A Fieldbus (dual bus redundancy support)

3. Mechanical & Environmental

• Mounting: Snap-on pluggable onto RH917GY terminal base, standard DCS rack installation
• Protection grade: Module IP40; terminal side IP20 (cabinet installation only)
• Operating temperature: 0℃ ~ +60℃; storage -40℃ ~ +85℃
• Humidity: 5%~95% RH non-condensing
• Status indicators: Per-channel LED status lamp; global Module OK green LED, Fault red alarm LED
• Dimensions: 120 × 80 × 35 mm, aluminum alloy industrial anti-interference housing

4. Safety & Certifications

• Certifications: CE, UL, CSA, FM; Class I Division 2 hazardous area applicable
• Redundancy support: Two FBM207C can form redundant I/O pair with shared termination base for critical safety loops
• Conformal coated PCB: Resist oil mist, dust, humidity for chemical & power plant harsh environments

Main Functions

1. Field contact state centralized acquisition

   Collect valve open/close limit feedback, pump running auxiliary contacts, emergency stop buttons, safety door interlock, pressure/temperature switch trip signals, transmit digital status to DCS controller.
2. High-precision SOE sequence of events recording

   Capture millisecond-level fault trigger time sequence for accident post-analysis of ESD emergency shutdown systems.
3. Pulse signal counting for flow measurement

   Receive pulse output from turbine flowmeters, accumulate flow totalizer inside the module to reduce controller load.
4. Configurable anti-bounce filtering

   Adjust input filter time according to on-site contact quality to avoid false triggering caused by mechanical contact vibration.
5. Redundant I/O high-reliability acquisition

   Dual-module hot standby redundancy design for critical safety interlock loops, single module failure does not lose field signal collection.
6. Complete self-diagnosis & fault upload

   Detect module communication failure, base connection abnormality, channel open circuit; upload fault codes to DCS HMI for remote alarm.

Advantages

• 16-channel high-density integration, save cabinet rack space compared with small 8-channel DI modules
• Full channel independent isolation, strong anti-electromagnetic interference, compatible with inverter/servo strong noise workshop environment
• Built-in SOE timestamp function, no extra dedicated event recording hardware required
• Support redundant deployment, meet petrochemical SIL safety loop high availability requirements
• Spring-clamp terminal base tool-free wiring, greatly shorten on-site wiring and maintenance time
• Aluminum sealed housing, wide temperature range, stable long-term operation in power plant, refinery outdoor control rooms
• Perfect seamless matching with Foxboro I/A Series & Foxboro Evo DCS system, unified system debugging tools
