                                    • Foxboro FBM201 Input Module

                                      Product Overview

                                      The Foxboro FBM201 Input Module is an Analog Input Interface Module designed for the Foxboro I/A Series Distributed Control System (DCS). It provides 8 isolated analog input channels for collecting signals from field transmitters and sensors, and converts these signals for communication with the Foxboro control system.

                                      The FBM201 is commonly used for process measurement applications such as pressure, temperature, flow, level, and other analog instrumentation signals in industrial automation systems.

                                      ---

                                      Main Specifications

                                      • Manufacturer: Foxboro (Schneider Electric / Invensys)
                                      • Model: FBM201
                                      • Series: I/A Series 200 Series Fieldbus Module
                                      • Product Type:
                                        • Analog Input Module
                                        • DCS I/O Interface Module
                                        • Process Signal Acquisition Module
                                      • Input Channels:
                                        • 8 analog input channels
                                      • Input Signal Type:
                                        • 0–20 mA DC (standard FBM201)
                                        • Compatible versions:
                                          • FBM201b: 0–100 mV DC
                                          • FBM201c: 0–5 V DC
                                          • FBM201d: 0–10 V DC

                                      ---

                                      Technical Specifications

                                      Analog Input

                                      • Number of Channels:
                                        • 8 channels
                                      • Input Type:
                                        • Two-wire DC analog sensor input
                                      • Typical Signals:
                                        • 4–20 mA transmitters
                                        • 0–20 mA sensors
                                        • Voltage output transmitters (depending on model version)
                                      • Isolation:
                                        • Each channel is galvanically isolated from other channels and ground
                                      • Accuracy:
                                        • Approx. ±0.03% of span
                                      • A/D Conversion:
                                        • Independent Sigma-Delta converter per channel



                                      ---

                                      Communication & Power

                                      Communication

                                      • Communicates with:
                                        • Foxboro FCM (Fieldbus Communication Module)
                                        • Foxboro FCP Controller
                                      • Communication Method:
                                        • Redundant 2 Mbps module Fieldbus



                                      Power Supply

                                      • Input Voltage:
                                        • 24 VDC
                                      • Power Consumption:
                                        • Approx. 7 W maximum
                                      • Installation:
                                        • Foxboro FBM baseplate / termination assembly



                                      ---

                                      Functional Features

                                      The FBM201 provides:

                                      • Analog signal acquisition from field devices
                                      • Signal conversion from field transmitters to DCS data
                                      • Channel-to-channel electrical isolation
                                      • Field device diagnostics
                                      • Reliable operation in harsh industrial environments
                                      • Redundant communication capability



                                      ---

                                      Features & Advantages

                                      • Original Foxboro I/A Series DCS module
                                      • 8-channel analog input capability
                                      • High signal accuracy and stability
                                      • Galvanic isolation improves signal reliability
                                      • Suitable for continuous process operation
                                      • Supports industrial-grade environments
                                      • Simplifies integration of field instruments into DCS systems

                                      ---

                                      Applications

                                      Used in:

                                      • Oil & gas plants
                                      • Petrochemical facilities
                                      • Power generation
                                      • Chemical processing
                                      • Water treatment
                                      • Manufacturing automation

                                      Typical applications:

                                      • Pressure transmitter monitoring
                                      • Temperature measurement
                                      • Flow measurement
                                      • Level monitoring
                                      • Process variable acquisition

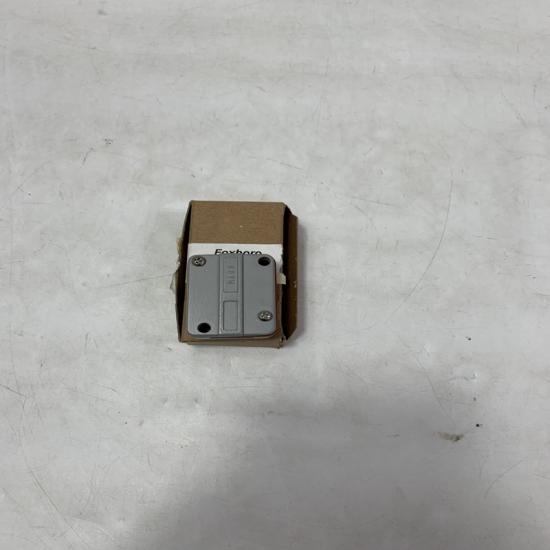

The structure and details of the product：
