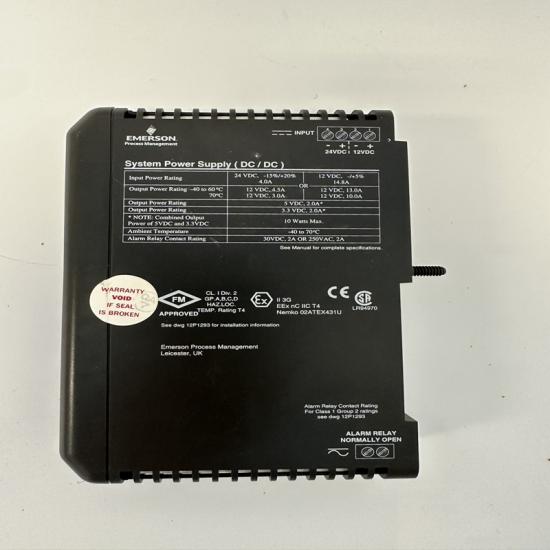

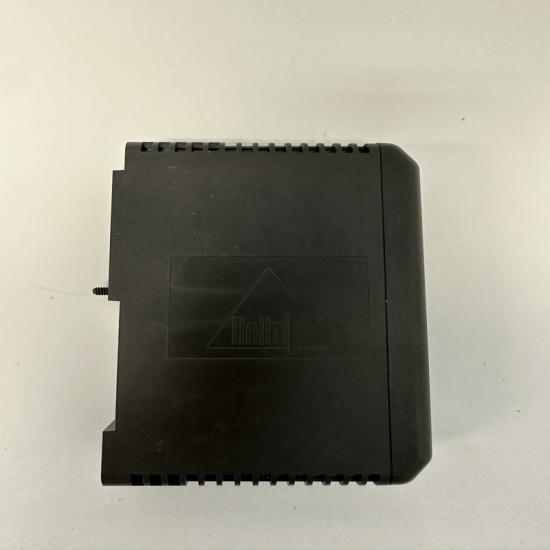

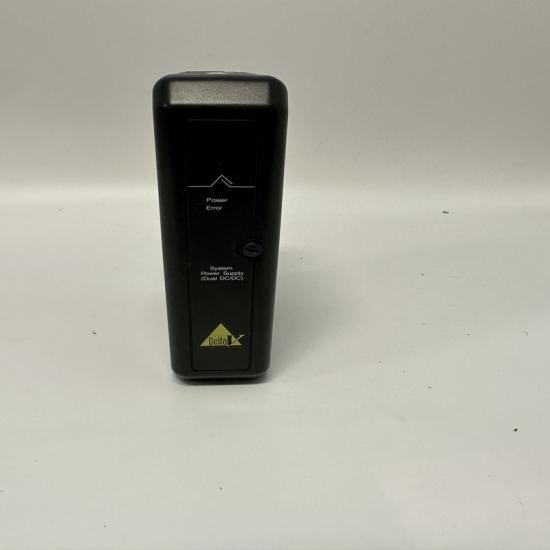

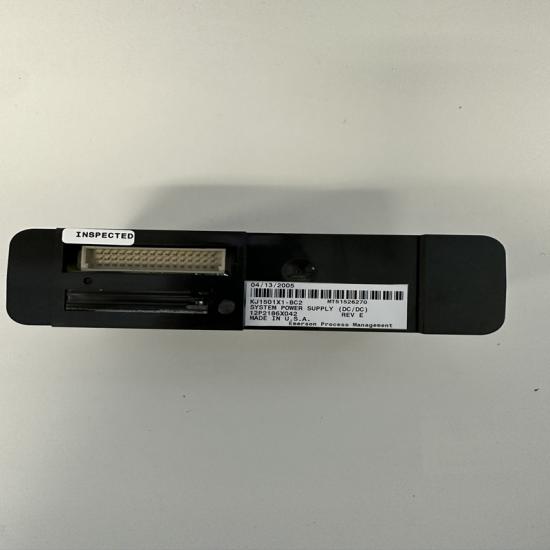

Emerson KJ1501X1-BC2 | System Power Supply Module

Specifications

• Input: 12 VDC (±5%, 14.8 A), 24 VDC (-15% ~ +20%, 4.0 A)
• Output:
  • 12 VDC: 13 A (12 V input) / 8 A (24 V input) @ 60 °C
  • 12 VDC: 10 A (12 V input) / 3 A (24 V input) @ 70 °C
  • 5.1 VDC @ 2.0 A, 3.4 VDC @ 2.0 A
  • Total power for 5.1 V & 3.4 V: 10.2 W
• Operating Temperature: -40 °C to +70 °C
• Humidity: 5% ~ 95% (Non-condensing)
• Shock: 10 g, 11 ms
• Vibration: 1 mm (2–13.2 Hz); 0.7 g (13.2–150 Hz)
• Alarm Contact Rating: 2 A @ 30 VDC / 2 A @ 250 VAC
• Redundancy: 1:1 redundant support
• Hot Swap: Not supported
• Cooling: Natural convection
• Dimensions (W×H×D): 25 × 145 × 120 mm
• Weight: Approx. 0.67 kg
• Certifications: CE, UL, CSA, ATEX Zone 2, FM Class I Div 2, T4

Key Features

1. Dual input design with redundant operation to prevent single point of failure
2. Wide temperature range for harsh industrial environments
3. Multiple regulated DC outputs to feed various DCS cards
4. High resistance to shock and vibration, compliant with industrial standards
5. Built-in alarm relay for power fault monitoring
