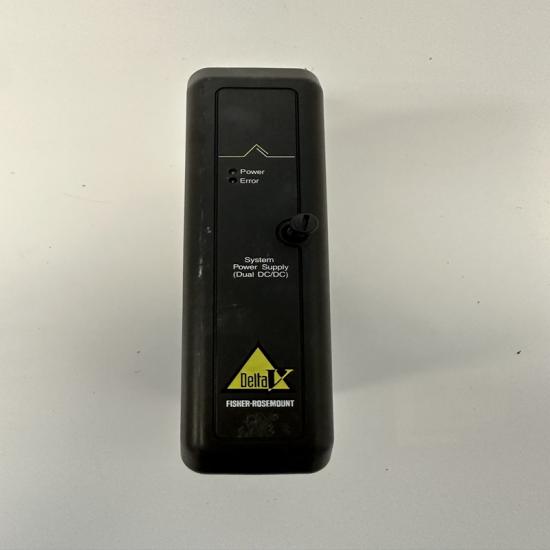

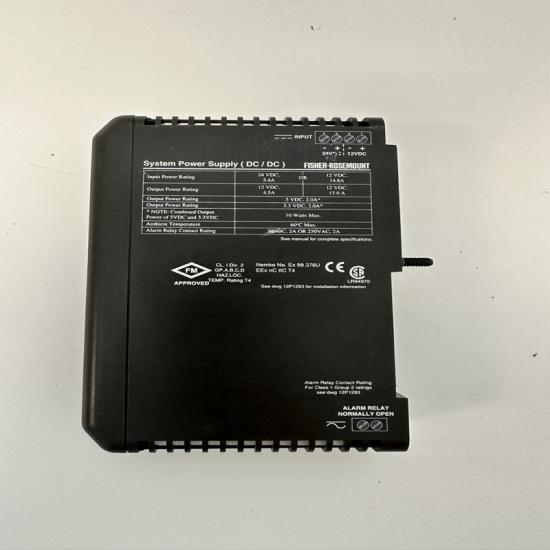

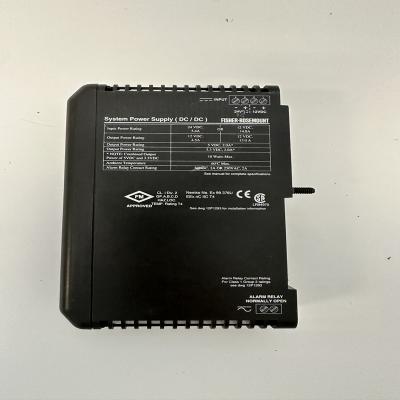

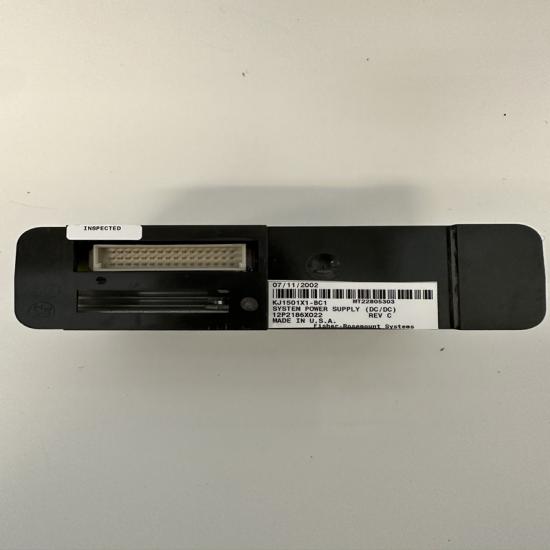

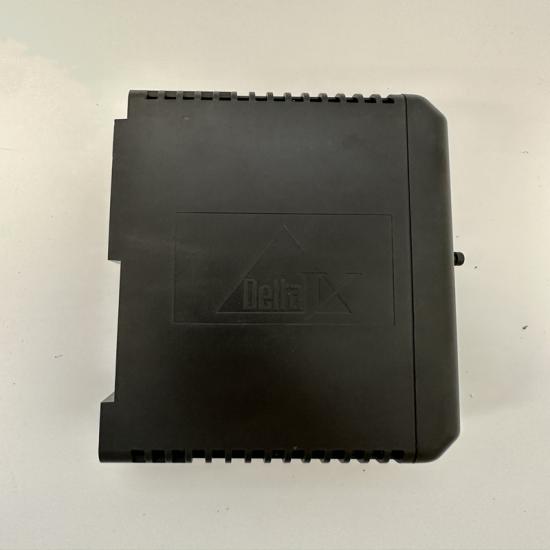

Emerson KJ1501X1-BC1 System Power Supply Module

Emerson KJ1501X1-BC1 | System Power Supply Module

Specifications

• Input:
  • 12 VDC ±5%, 14.8 A
  • 24 VDC −15%/+20%, 4.0 A
• Output:
  • 12 VDC: 13 A (12 V input) / 8 A (24 V input) @ 60°C
  • 12 VDC: 10 A (12 V input) / 3 A (24 V input) @ 70°C
  • 5.1 VDC @ 2.0 A
  • 3.4 VDC @ 2.0 A
  • 5.1 V + 3.4 V total: 10.2 W
• Environment:
  • Operating Temp: −40 °C ~ +70 °C
  • Humidity: 5%–95% non‑condensing
  • Shock: 10 g, 11 ms
  • Vibration: 1 mm (2–13.2 Hz); 0.7 g (13.2–150 Hz)
• Redundancy: 1:1 redundant capable
• Hot‑Swap: ❌ No (power‑off replacement)
• Cooling: Natural convection
• Dimensions (W×H×D): 25 × 145 × 120 mm
• Weight: ~0.67 kg
• Certifications: CE, UL, CSA, ATEX Zone 2, FM Class I Div 2, T4

Key Features

1. Dual‑input redundant design eliminates single‑point failure.
2. Wide operating temperature for harsh industrial environments.
3. Multiple regulated outputs (12 V, 5.1 V, 3.4 V) for DCS controllers and I/O cards.
4. Industrial‑grade ruggedness (shock/vibration resistant).
5. Alarm relay contact (30 VDC/2 A, 250 VAC/2 A) for fault monitoring.

Applications

• DeltaV DCS cabinet power distribution
• Oil & gas, chemical, petrochemical, pharmaceutical
• Power generation, water treatment, pulp & paper
