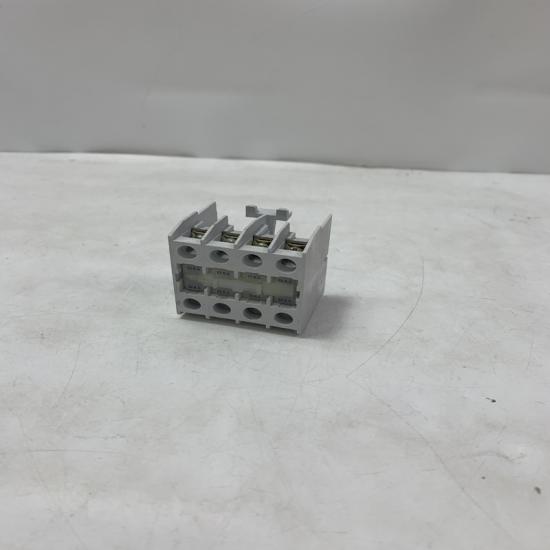

Eaton Z530 Mk2 Safety Relay

Eaton Z530 Mk2 Safety Relay

Product Description

The Eaton Z530 Mk2 Safety Relay is a safety monitoring relay module designed for industrial machine safety applications. It is used to monitor emergency stop circuits, safety door switches, and other protective devices, providing reliable shutdown control when a safety condition is triggered. It helps achieve enhanced machine safety by monitoring safety circuits and controlling safety-related outputs. Eaton safety relay products are designed for applications such as emergency-stop monitoring and protective door monitoring.

Technical Specifications

• Brand: Eaton / Moeller
• Model: Z530 Mk2
• Product Type: Safety Relay Module
• Function: Safety circuit monitoring and emergency shutdown control
• Safety Applications:
  • Emergency stop monitoring
  • Safety guard / door monitoring
  • Machine protection circuits
• Supply Voltage: 24 V AC/DC (typical safety relay supply)
• Input Type: Dual-channel safety inputs
• Output Type: Safety relay contacts
• Mounting: DIN rail mounting
• Protection Rating: IP20
• Connection: Screw terminal connection
• Safety Category: Up to Category 4 / Performance Level e (depending on system configuration)

Advantages & Features

• Reliable monitoring of safety circuits
• Supports two-channel emergency stop circuits
• Provides electrical isolation between safety input and output circuits
• DIN rail compact design for control cabinets
• Improves machine operator protection
• Suitable for integration into industrial automation systems
• Helps meet industrial safety requirements

Applications

• Industrial machinery
• Automated production lines
• CNC equipment
• Packaging machines
• Robot workstations
• Safety door monitoring systems
• Emergency stop circuits

Notes / Precautions

• Verify supply voltage and wiring configuration before installation
• Confirm required safety category with the complete safety system design
• Check compatibility with emergency stop switches and safety sensors
• Ensure correct feedback loop wiring when used with contactors
• Installation and safety validation should be performed by qualified personnel
