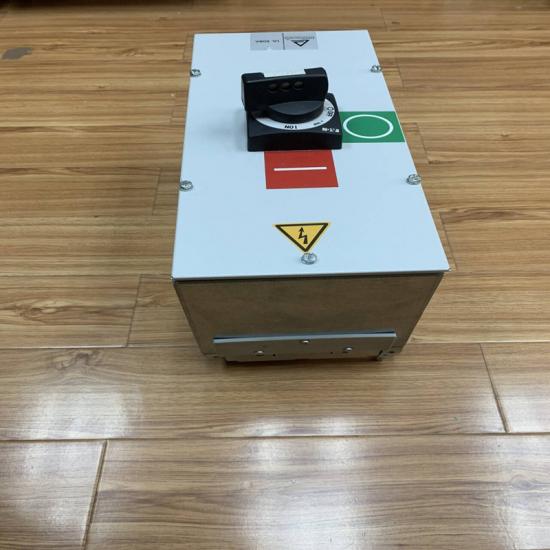

Eaton PDG23G0040TFFJ Circuit Breaker

Eaton PDG23G0040TFFJ Circuit Breaker (Power Defense MCCB – 40A, Frame 2, 3-Pole)





The Eaton PDG23G0040TFFJ is a Power Defense series molded case circuit breaker (MCCB) used for industrial low-voltage power protection and distribution systems.

Product Information

• Brand: Eaton (USA)
• Series: Power Defense (PD2 Global)
• Model: PDG23G0040TFFJ
• Type: Molded Case Circuit Breaker (MCCB)
• Frame size: Frame 2
• Poles: 3-pole
• Rated current: 40A
• Voltage rating: up to 600 VAC
• Interrupt rating: up to 35 kAIC @ 480 VAC
• Protection type: Thermal magnetic (long-time + instantaneous trip)

What it actually is

This is a heavy-duty protection switch, meaning it:

• Protects circuits from overload
• Protects against short-circuit faults
• Used in industrial distribution panels
• Works in 3-phase AC power systems

It does NOT control automation logic, signals, or communication.

System Role (Simple)

Power supply (3-phase AC)
→ Eaton PDG23G0040TFFJ breaker (this unit)
→ distribution busbar
→ loads (drives, PLC panels, motors, machines)

So it is a “core safety protection device in electrical distribution systems.”

Key Features

• Thermal + magnetic trip protection
• High short-circuit interruption capability
• Compact Frame 2 industrial design
• Suitable for switchgear and MCC panels
• Stable operation for continuous industrial duty
• UL/IEC certified safety standard

Typical Applications

• Industrial distribution panels
• Motor control centers (MCC)
• Factory machinery power protection
• HVAC systems
• UPS and backup power distribution
• General low-voltage electrical systems

Advantages

• High fault protection reliability
• Compact but industrial-grade performance
• Strong interrupt capacity for safety
• Standard global certification (UL/IEC)
• Long service life in harsh environments

Important Notes

• Not PLC module ❌
• Not controller ❌
• Not sensor ❌
• Not drive ❌
• Not communication module ❌
• It is a 40A molded case circuit breaker (MCCB) ✔

Precautions

• Must match correct Frame 2 specification
• Tightening torque must be followed strictly
• Installation must be in certified electrical panel
• Not interchangeable with other frame sizes
• High voltage risk — professional installation required
