EATON C320KGT13 auxiliary contact block

EATON C320KGT13 Auxiliary Contact Block

Product Overview

The EATON C320KGT13 is a heavy-duty auxiliary contact block designed for industrial applications requiring high-current switching (10A at 600V AC). It features silver-cadmium alloy contacts for enhanced durability and is compatible with EATON’s motor control contactors (15–75A range). This module provides 1 normally open (NO) + 1 normally closed (NC) contact configuration, making it suitable for interlocking, signaling, and control circuit extensions in automation systems .

Key Features & Technical Specifications

1. Electrical Performance

• Contact Configuration: 1NO + 1NC (dual contacts) .

• Rated Current: 10A at 600V AC (resistive load) .

• Contact Material: Silver-cadmium alloy for high wear resistance .

• Isolation Voltage: 500V RMS between contacts and coil .

2. Mechanical & Environmental

• Mounting: Side-mounted (compatible with EATON contactors like C320 series) .

• Terminals: Screw-type for secure wiring .

• Operating Temperature: -25°C to +50°C .

• Protection Rating: IP20 (dust-resistant) .

3. Durability & Certifications

• Electrical Life: 100,000 operations (minimum) .

• Certifications: UL, CE, IEC/EN 60947-5 (safety standards) .

Applications

1. Motor Control:

   • Extends control circuits for EATON C320 contactors in industrial motors .

2. Safety Interlocks:

   • Used in emergency stop circuits and machine safety systems .

3. Automation Signaling:

   • Provides status feedback in PLC-controlled systems .

Installation Notes

1. Compatibility: Verify pairing with EATON C320KG-series contactors .

2. Wiring: Use shielded cables for noise-sensitive applications .

3. Maintenance: Inspect contacts periodically for wear or oxidation .

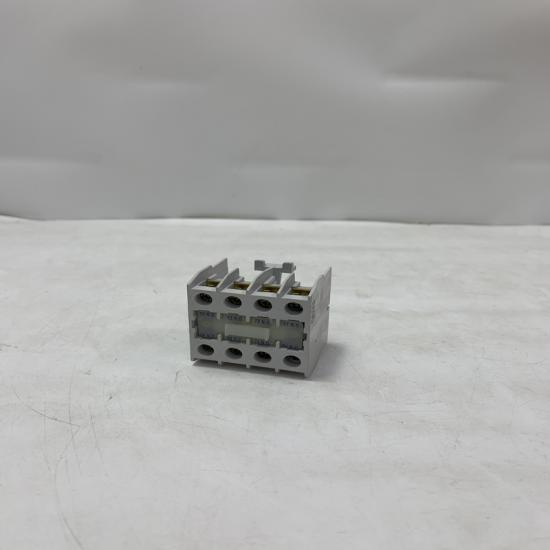

The structure and details of the product：
