EATON C320KGS3 auxiliary contact block

EATON C320KGS3 Auxiliary Contact Block

Product Overview

The EATON C320KGS3 is a side-mounted auxiliary contact block designed for EATON’s C320 series contactors. It provides 1 normally closed (NC) + 1 normally open (NO) contact configuration, making it suitable for interlocking, signaling, and control circuit extensions in industrial automation systems. This module is rated for 10A at 600V AC, ensuring reliable switching in high-power applications .

Key Features & Technical Specifications

1. Electrical Performance

• Contact Configuration: 1NC + 1NO (dual contacts) .

• Rated Current: 10A at 600V AC (resistive load) .

• Contact Material: Silver-cadmium alloy for high wear resistance .

• Isolation Voltage: 500V RMS between contacts and coil .

2. Mechanical & Environmental Specs

• Mounting: Side-mounted (compatible with EATON C320KG-series contactors) .

• Terminals: Screw-type for secure wiring .

• Operating Temperature: -25°C to +50°C .

• Protection Rating: IP20 (dust-resistant) .

3. Durability & Certifications

• Electrical Life: 100,000 operations (minimum) .

• Certifications: UL, CE, IEC/EN 60947-5 (safety standards) .

Applications

1. Motor Control:

   • Extends control circuits for EATON C320 contactors in industrial motors .

2. Safety Interlocks:

   • Used in emergency stop circuits and machine safety systems .

3. Automation Signaling:

   • Provides status feedback in PLC-controlled systems .

Installation Notes

1. Compatibility: Verify pairing with EATON C320KG-series contactors .

2. Wiring: Use shielded cables for noise-sensitive applications.

3. Maintenance: Inspect contacts periodically for wear or oxidation .

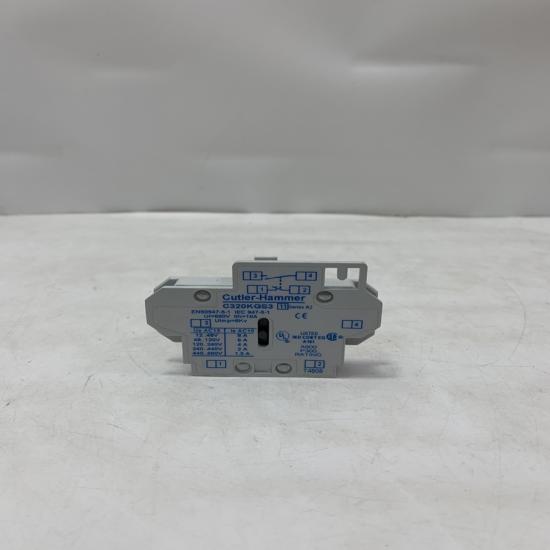

The structure and details of the product：
