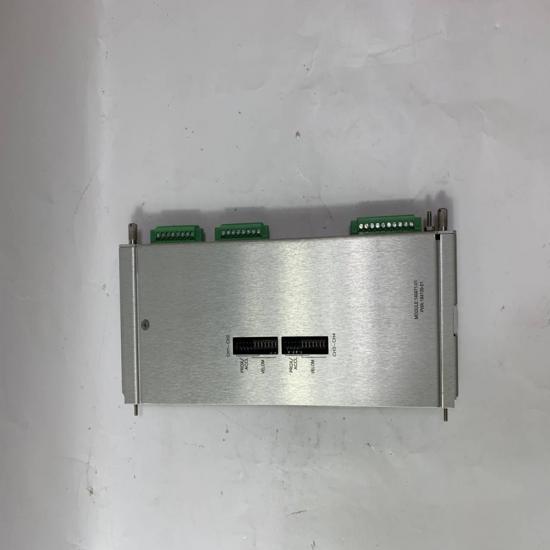

Bently Nevada 3500/92-04-01-01 Communication Gateway Module

Product Overview

The Bently Nevada 3500/92-04-01-01 Communication Gateway Module is a communication interface module used in the 3500 Machinery Condition Monitoring System. It provides network access to all monitored values and statuses from the 3500 rack, allowing integration with DCS, PLC, SCADA, and plant monitoring systems through Ethernet and serial communication interfaces.

The module acts as a data bridge between the Bently Nevada vibration monitoring rack and higher-level control systems, transmitting real-time machine condition data such as vibration values, alarm status, and module health information.

Main Specifications

• Manufacturer: Bently Nevada (Baker Hughes)
• Model: 3500/92-04-01-01
• Part Number: 136180-01
• Series: 3500 Machinery Condition Monitoring System
• Product Type:
  • Communication Gateway Module
  • Machinery Monitoring Network Interface
  • Rack Communication Module
• Rack Installation:
  • 3500 System Rack
  • Occupies 1 rack slot
• Primary Function:
  • Provides communication between 3500 monitoring rack and external control systems

Communication Specifications

Ethernet Communication

• Network Interface:
  • Ethernet TCP/IP
• Connector:
  • RJ45
• Ethernet Type:
  • 10BASE-T
• Functions:
  • Rack data access
  • Configuration communication
  • Data acquisition communication

Serial Communication

• Serial Interface:
  • RS485 Modbus
• Supported Protocols:
  • Modbus RTU
  • Modbus/TCP
  • Bently Nevada proprietary communication protocol
• Communication Purpose:
  • PLC/DCS integration
  • SCADA data collection
  • System 1™ monitoring software communication

Technical Features

Data Monitoring Capability

The module can provide access to:

• Vibration measurement values
• Shaft displacement data
• Speed measurements
• Temperature values
• Alarm and danger status
• Module status information
• Event records

Electrical Specifications

• Power Consumption:
  • Approx. 5.6 W (RS485 configuration)
• Power Supply:
  • Supplied through 3500 rack backplane

Mechanical Specifications

• Mounting:
  • 3500 rack slot mounting
• Rack Position:
  • Communication module position
• Operating Temperature:
  • Industrial environment suitable
• Weight:
  • Approx. 1–2 kg depending on configuration

Features & Advantages

• Original Bently Nevada 3500 series communication module
• Provides direct connection between machinery monitoring systems and control networks
• Supports Ethernet and Modbus communication
• Enables remote monitoring of rotating equipment
• Reduces need for separate data acquisition hardware
• Improves integration with DCS/PLC/SCADA systems
• Suitable for continuous machine protection applications

Applications

Used in:

• Power plants
• Steam turbines
• Gas turbines
• Compressors
• Pumps
• Industrial rotating machinery
• Petrochemical plants
• Process industries

Typical applications:

• Turbine vibration monitoring
• Machinery protection systems
• Condition monitoring networks
• Predictive maintenance systems
