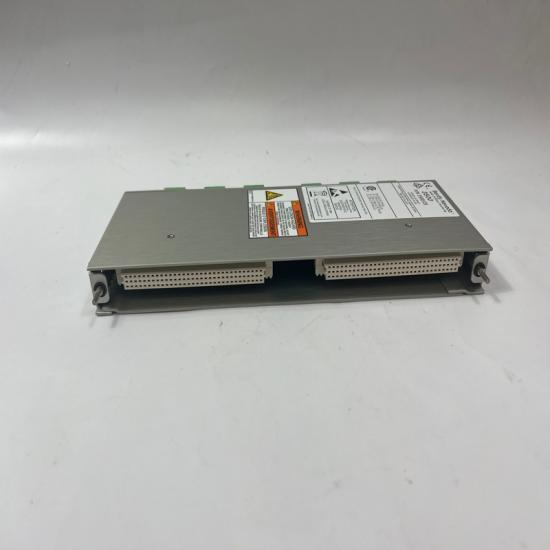

BENTLY NEVADA 149992-01 3500/33 16-Channel Relay Output Module

Product Overview

The Bently Nevada 149992-01 is a spare 16-channel relay output module for the Bently Nevada 3500 Machinery Protection System. It provides relay contacts for alarm signaling, equipment interlocks, and machinery protection control actions. Each relay channel can be configured using the compatible 3500 system software to respond to alarm states, equipment status, and measured variables.

Key Technical Specifications

• Brand: Bently Nevada

• Model: 149992-01

• Product Series: 3500 Machinery Protection System

• Product Type: 16-Channel Relay Output Module (I/O Module)

• Compatible System: 3500/33 16-Channel Relay Module

• Number of Relay Channels: 16

• Relay Contact Type: SPDT (Single-Pole Double-Throw)

• Relay Configuration: Normally Energized (NE) or Normally De-energized (ND), selectable in four groups of four channels

• Maximum Switching Current: 5 A for standard relay contacts

• Maximum AC Switching Voltage: 250 V AC for standard systems

• Maximum DC Switching Voltage: 125 V DC for standard systems

• Maximum Switching Power: 1,200 VA AC; DC ratings depend on the applied voltage

• Typical Power Consumption: 5.8 W for the 3500/33 relay module system

• Module Dimensions (H × W × D): Approximately 241 × 24.4 × 99.1 mm

• Module Weight: Approximately 0.4 kg

• Installation: Rear I/O slot of a compatible 3500 rack assembly

• Configuration Software: 3500 Rack Configuration Software, version 3.3 or later

Key Features

• Provides 16 relay output channels for industrial control.

• Supports configurable alarm-drive and voting logic through the compatible control module.

• Offers normally energized and normally de-energized operating modes.

• Supports alarm signaling and protection-related switching functions.

• Includes a compact rack-mounted design for integration into 3500 systems.

• Designed for use with compatible Bently Nevada machinery monitoring equipment.

Applications

• Turbine and compressor protection systems

• Rotating machinery monitoring

• Industrial alarm and interlock control

• Process equipment shutdown circuits

• Power generation and petrochemical installations

• Maintenance and replacement of Bently Nevada 3500 systems

Important Notes

• This model is a relay output I/O module, not a signal conditioner.

• The 149992-01 output module is distinct from the 149986-01 relay control module; verify that the required components are present for the intended assembly.

• Switching ratings depend on the load type and installation conditions. Hazardous-area and functional-safety applications may require reduced voltage limits.

• Confirm rack compatibility, relay contact requirements, and the existing system configuration before ordering.

• Verify the complete part number, revision, and product condition before installation.
