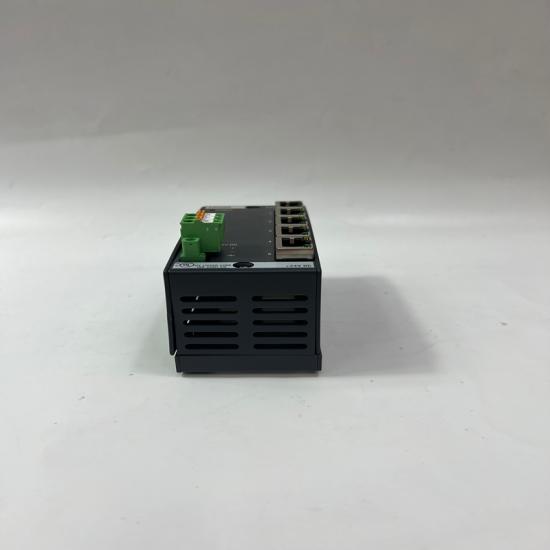

BACHMANN SWI205 Industrial Ethernet Switch

1. Product Overview

The BACHMANN SWI205 is a rugged industrial-grade Ethernet switch designed for reliable network connectivity in harsh industrial environments. As part of BACHMANN's industrial automation portfolio, this switch provides robust networking solutions for critical control systems.

2. Key Features

1. Industrial hardened design for extreme environments

2. 8-port 10/100Base-TX configuration with auto-negotiation

3. Support for Fast Ethernet (100Mbps) and standard Ethernet (10Mbps)

4. DIN-rail mounting for easy installation in control cabinets

5. Extended operating temperature range (-40°C to +75°C)

6. Redundant power supply inputs (24V DC)

7. LED status indicators for port activity and system status

8. Fanless operation for reduced maintenance

3. Technical Specifications

3.1 Network Specifications

• Ports: 8 x 10/100Base-TX RJ45

• Switching capacity: 1.6Gbps

• MAC address table: 8K entries

• Packet buffer memory: 1.5MB

• Standards: IEEE 802.3, 802.3u, 802.3x

3.2 Electrical Specifications

• Power supply: 24V DC (18-36V range)

• Power consumption: <5W

• Redundant power inputs: Yes

• Isolation: 1.5kV (port-to-port)

3.3 Mechanical Specifications

• Housing: Metal enclosure

• Dimensions: 35 x 125 x 110mm (WxHxD)

• Weight: Approx. 600g

• Mounting: DIN-rail (EN 60715)

• Protection class: IP30

3.4 Environmental Specifications

• Operating temperature: -40°C to +75°C

• Storage temperature: -40°C to +85°C

• Relative humidity: 5% to 95% (non-condensing)

• Shock resistance: 15g, 11ms

• Vibration resistance: 2g, 10-150Hz

4. Typical Applications

1. Wind turbine control systems

2. Industrial automation networks

3. Factory automation systems

4. Process control applications

5. Distributed control systems

6. Transportation systems

7. Energy management systems

5. Installation and Operation

1. Ensure proper power supply (24V DC) before installation

2. Use shielded Ethernet cables for optimal performance

3. Mount securely on DIN-rail in control cabinet

4. Connect redundant power inputs for increased reliability

5. Verify link status via LED indicators

6. Configure network settings as required

6. Product Advantages

1. High reliability in harsh industrial environments

2. Compact design saves control cabinet space

3. Easy integration with BACHMANN control systems

4. Low power consumption

5. Maintenance-free operation

6. Long-term availability for industrial applications
