Bachmann RS204 Interface Module

1. Product Overview

2. Core Specifications

3. Key Functions

3.1 Multi-Protocol Communication Gateway

• Protocol Translation: Acts as a bridge between incompatible systems by translating data between protocols. For example, it can convert Modbus RTU signals from legacy sensors into Modbus TCP/IP for transmission to a SCADA system, or translate CANopen messages from a motor drive into M1 controller-compatible data—eliminating the need for custom hardware or software.
• Dual Serial + Ethernet Support: The combination of 2 RS-485 ports and 1 Ethernet port enables simultaneous communication with multiple devices:
  • RS-485 Port 1: Connect to Modbus RTU sensors (e.g., temperature transmitters, flow meters).
  • RS-485 Port 2: Interface with CANopen devices (e.g., servo drives, actuators).
  • Ethernet: Communicate with Modbus TCP/IP SCADA or HMI systems.

3.2 Flexible Master/Slave Operation

• Configurable Roles: Each protocol interface can operate as a master (initiating communication) or slave (responding to requests) via Bachmann’s M1 Configurator software. For example:
  • Act as a Modbus RTU master to poll data from 16 slave devices (e.g., pressure sensors).
  • Function as a Modbus TCP/IP slave to provide data to a SCADA system.
  • Operate as a CANopen master to control and monitor up to 127 CANopen nodes (e.g., conveyor drives).

3.3 Robust Data Integrity & Security

• Error Handling: Built-in error detection (checksum validation for Modbus, CRC for CANopen) ensures data accuracy. Automatically retries failed communications (configurable retry count) to handle temporary network disruptions (e.g., cable interference).
• Electrical Isolation: 2.5kV isolation on serial ports and 1kV isolation on Ethernet protects the M1 controller from voltage spikes, ground loops, and electrical noise—critical for industrial environments with high EMI (e.g., near motors or inverters).

3.4 Seamless Integration with M1 System

• Backplane Communication: Exchanges data with the M1 CPU via the high-speed internal bus (100 Mbps), ensuring low-latency (≤1ms) data transfer between the interface module and controller. This enables real-time monitoring and control of external devices through the M1 automation logic.
• Centralized Configuration: All protocol settings (baud rate, node addresses, data mapping) are managed via M1 Configurator, with a user-friendly interface for defining data points (e.g., mapping a Modbus register to an M1 variable). No low-level programming is required, simplifying setup.

4. Typical Applications

• Manufacturing Line Integration: Connects the M1 controller to:
  • Modbus RTU temperature sensors on a production line (via RS-485).
  • CANopen servo drives controlling robotic arms (via second RS-485).
  • Modbus TCP/IP SCADA system for centralized monitoring (via Ethernet).
• Renewable Energy Systems: Integrates a solar inverter (Modbus RTU) and battery management system (CANopen) with an M1 controller, then transmits aggregated data to a cloud-based monitoring platform via Modbus TCP/IP.
• Building Automation: Links legacy BACnet devices (via Modbus RTU gateway) and modern IP-based lighting controls (Modbus TCP/IP) to the M1 controller, enabling unified building management.
• Material Handling: Facilitates communication between the M1 controller, Modbus RTU barcode scanners (RS-485), and a CANopen conveyor drive system, with Ethernet connectivity to a warehouse management HMI.

5. Usage Notes

1. Protocol Configuration:
   • Set appropriate baud rates and parity (e.g., 9600 bps, 8N1 for Modbus RTU) to match connected devices. Mismatched settings cause communication failures—verify with a protocol analyzer (e.g., Bachmann M1 Diagnostics Tool) if data transfer fails.
   • For CANopen, configure the module’s node ID and bit rate (e.g., 500 kbps) to match the network; avoid conflicts with other CANopen devices.
2. Wiring Best Practices:
   • Use twisted-pair shielded cables for RS-485 connections (0.14–0.5mm²) and terminate with 120Ω resistors at both ends to prevent signal reflection. Ground the shield at one end only.
   • For Ethernet, use CAT5e or higher cables with RJ45 connectors, and limit cable length to 100m. Avoid routing Ethernet cables alongside high-voltage power lines to reduce EMI.
3. Network Load Management:
   • When operating as a Modbus master, limit the number of polled devices to avoid bus saturation. Schedule non-critical data (e.g., historical logs) to be polled at longer intervals (e.g., 100ms) than real-time data (e.g., 10ms).
   • For CANopen, use message prioritization to ensure critical control data (e.g., emergency stops) takes precedence over non-essential status messages.
4. Diagnostics & Troubleshooting:
   • Use M1 Configurator’s built-in diagnostics to monitor communication status (e.g., "Modbus RTU: 127 successful polls, 3 retries"). Frequent retries indicate noisy wiring or a faulty device.
   • If Ethernet communication fails, check IP address settings (ensure compatibility with the SCADA/HMI network) and verify the Ethernet port’s link status (LED indicator: green = active, flashing = data transfer).
5. Environmental Protection:
   • Mount the RS204 in a temperature-controlled cabinet, away from heat sources (e.g., power supplies) to maintain the -25°C~+60°C operating range.
   • In humid environments (e.g., food processing), use a dehumidifier to keep relative humidity <85% (non-condensing) to prevent corrosion of electrical contacts

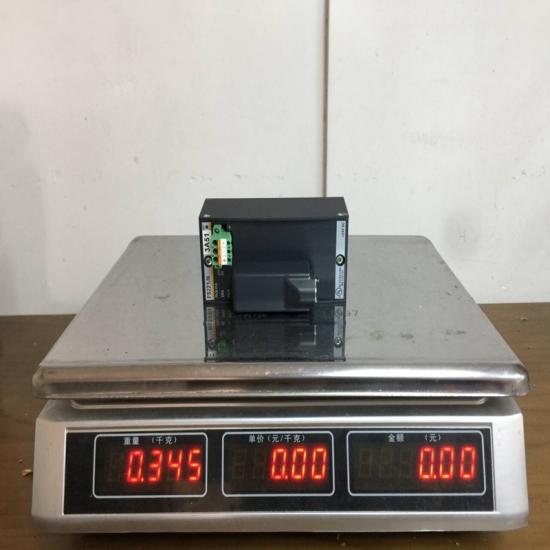

The structure and details of the product：
