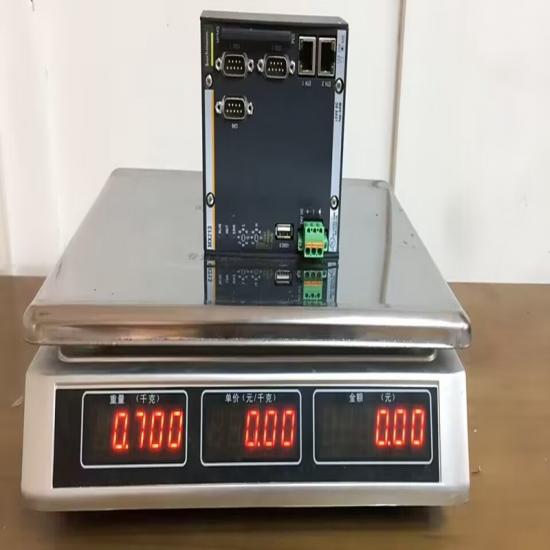

Bachmann MC210 processor module

• Powerful Processor and Memory Configuration​

• At its heart, the MC210 is equipped with a 1.6 GHz Atom E680 CPU. This processor provides the computational muscle required to handle the real - time data processing and complex algorithm execution that are characteristic of industrial control applications. Whether it's processing sensor data from multiple sources, executing control logic for machinery, or managing communication between different parts of the system, the Atom E680 ensures smooth and efficient operation.​

• In terms of memory, it comes with 1 GB of DRAM DDR2, which allows for quick data access and storage during operation. This ample amount of random - access memory enables the module to handle large - scale data processing tasks without significant slowdowns. Additionally, it has a 512 KB NVRAM - 0 for data memory, which retains important data even in the event of a power loss. The internal flash memory, with a capacity of 64 MB, offers 40 MB of free space specifically dedicated to the application program. This allows users to store and run their custom - developed control software, ensuring that the module can be tailored to meet the unique requirements of their industrial processes.​

• I/O Bus and Communication Interfaces​

• The module features an I/O bus designed as a process image controller. This interface is crucial for communicating with various I/O modules, enabling the MC210 to receive input signals from sensors (such as temperature sensors, pressure sensors, and proximity sensors) and send output signals to actuators (like motors, valves, and relays). It acts as a bridge, facilitating the transfer of data between the central processing unit and the field - level devices, ensuring that the control system can respond in real - time to changes in the industrial environment.​

• For network connectivity, the MC210 is equipped with 2 x 10/100/1000 Base - T Ethernet ports. These ports support high - speed data transfer, making it easy to integrate the module into industrial networks. Additionally, they comply with the IEEE 1588 standard, which is essential for achieving precise time synchronization across different devices in a distributed control system. This time synchronization is crucial for applications where the coordination of events in different parts of the system is critical, such as in power generation plants or high - speed manufacturing lines.​

• In terms of serial communication, it has 1x RS232 and 1x RS232/422/485 (software - configurable) ports. These serial ports are useful for connecting to devices that use serial communication protocols, such as certain types of sensors, actuators, or legacy equipment. The ability to configure the second serial port for different protocols provides added flexibility in integrating the MC210 into existing industrial setups.​

• There is also 1x USB 2.0 host interface, which can be used to connect external devices such as USB flash drives for data storage or backup, or to interface with other USB - enabled peripherals. Additionally, it has a 1x service USB interface (USB device), which can be used for programming, debugging, or system maintenance purposes.​

• Mass Storage and Environmental Adaptability​

• The MC210 includes 1 x integrated Cfast (mass storage) slot, accessible from the side. With a capacity of more than 8 GB, this storage option provides a convenient way to store large amounts of data, such as historical process data, configuration files, and software updates. The Cfast storage is fast and reliable, ensuring that data can be quickly accessed when needed.​

• In terms of environmental adaptability, the module is designed to operate in a wide temperature range, from - 30℃ to + 60℃, without the need for a fan. This fan - free design not only reduces the risk of mechanical failures due to fan malfunctions but also makes the module more suitable for dusty or dirty industrial environments. Its storage temperature range extends even further, from - 40℃ to + 85℃. It can withstand vibration as per the IEC 60068 - 2 - 6 standard (10 - 500 Hz, 10 g acceleration) and humidity levels ranging from 5 - 95% non - condensing. Moreover, it complies with the IEC 61000 - 6 - 2 standard for EMC immunity, ensuring stable performance in the presence of strong electromagnetic fields generated by industrial equipment.​

• Status Monitoring and Synchronization​

• The module is equipped with LED indicators for easy status monitoring. There are indicators for power, which show whether the module is receiving power correctly. The "RUN" indicator (green) lights up when the controller is operating in the normal run mode, indicating that the system is functioning properly. The "ERR" indicator (red) alerts users when there are errors, such as hardware malfunctions or software crashes. The "INT" indicator (yellow) is used to show when the system is in the initialization phase.​

• It also has a synchronizing pulse feature, which is used for synchronizing the I/O bus, as well as field buses like SERCOS and CAN, and Ethernet. This synchronization ensures that all components in the industrial control system are operating in harmony, with accurate timing of data transfer and control actions.​

• High - Performance Computing for Complex Tasks​

• The 1.6 GHz Atom E680 CPU, combined with the 1 GB of DRAM DDR2, enables the MC210 to handle complex control tasks with ease. In manufacturing plants, for example, it can simultaneously process data from hundreds of sensors located throughout the production line. This data may include information about product quality, machine performance, and environmental conditions. Based on this data, the MC210 can execute complex control algorithms to adjust the operation of machinery in real - time, ensuring optimal production efficiency and product quality.​

• Versatile Connectivity for Seamless Integration​

• The multiple communication interfaces, including Ethernet, serial ports, and USB, make the MC210 highly versatile in terms of integration. In a renewable energy installation, such as a wind farm, the Ethernet ports can be used to connect the MC210 to a central monitoring and control system, allowing for remote monitoring and control of the wind turbines. The serial ports can be used to interface with individual turbine sensors and actuators, while the USB ports can be used for local data backup or software updates. This seamless integration ability reduces the need for complex and costly custom - made interfaces, making it easier and more cost - effective to implement industrial control systems.​

• Reliable Operation in Harsh Environments​

• The ability of the MC210 to operate in extreme temperatures, withstand vibration, and resist EMI makes it extremely reliable in harsh industrial environments. In a chemical plant, for instance, where there are high levels of electromagnetic interference from large motors and chemical processing equipment, and where the temperature can vary significantly depending on the process, the MC210 can continue to operate without interruption. This reliability reduces the risk of system failures, which can lead to costly production downtimes and potential safety hazards.​

• Easy Configuration and Customization​

• With its 40 MB of free space in the internal flash for application programs, users can easily customize the MC210 to meet their specific industrial needs. Bachmann's SolutionCenter software provides a user - friendly interface for programming and configuring the module. Users can write custom control software using languages like C/C++, and then download it to the MC210. They can also set up parameters for communication interfaces, define input/output mapping, and configure alarm settings. This ease of configuration and customization allows industrial operators to tailor the control system to their unique processes, rather than being limited to one - size - fits - all solutions.​

• Manufacturing Industries​

• In automotive manufacturing plants, the MC210 can be used to control the entire production line. It can receive input from sensors that detect the position of car parts on the assembly line, the status of robotic arms, and the quality of welded joints. Based on this data, it can send output signals to control the movement of conveyor belts, the operation of robotic arms, and the activation of quality inspection equipment. This ensures that the production process is smooth, efficient, and that the final product meets high - quality standards.​

• Process Industries​

• In a chemical processing plant, the MC210 can be used to monitor and control chemical reactions. It can receive temperature, pressure, and flow rate data from sensors located in reactors and pipelines. Using this data, it can adjust the flow of reactants, control the heating and cooling systems, and ensure that the chemical reactions occur under the optimal conditions. In case of any abnormal conditions, such as a sudden increase in temperature or pressure, the MC210 can trigger alarms and take corrective actions to prevent accidents.​

• Renewable Energy Installations​

• In a solar power plant, the MC210 can be used to manage the operation of solar panels and inverters. It can monitor the temperature of the solar panels, the voltage and current output of the inverters, and the power grid connection status. Based on this data, it can optimize the operation of the solar panels, for example, by adjusting the angle of the panels to maximize sunlight exposure. It can also control the inverters to ensure that the power generated by the solar panels is efficiently converted and fed into the grid.​

• Power Generation and Distribution​

• In a power generation plant, whether it's a thermal, hydro, or nuclear plant, the MC210 can play a crucial role in controlling the generation and distribution of power. It can monitor the status of generators, turbines, and transformers, and adjust their operation based on factors such as load demand, grid frequency, and voltage levels. In the power distribution network, it can be used to manage the operation of substations, ensuring that power is distributed safely and efficiently to consumers.​
•
