Bachmann GIO212 Universal Input/Output Module
1. Product Overview
The Bachmann GIO212 is a highly versatile universal input/output (I/O) module engineered to meet the diverse needs of industrial automation systems. Hailing from Austria, Bachmann has designed this module to simplify the integration of various sensors and actuators, offering a cost - effective solution by eliminating the need for multiple, specialized I/O modules.
Measuring compactly, it can be easily installed in standard control cabinets, making it suitable for a wide range of industrial setups. With its ability to handle different signal types, the GIO212 acts as a central hub for signal processing, whether in a small - scale manufacturing unit or a large - scale industrial complex.
2. Core Technical Features
- Channel Configuration: The GIO212 comes equipped with 12 configurable channels. Each of these channels has the flexibility to function as either an analog or digital input or output. This means that in a single module, it can interface with a variety of devices. For example, some channels can be used to receive analog voltage signals from temperature sensors, while others can be configured to output digital signals to control relays.
- Analog Input Capabilities: It supports a broad spectrum of analog voltage inputs, ranging from ±10 V to as low as ±10 mV. This wide range makes it compatible with a vast number of sensors, such as precision voltage - based sensors used in scientific or high - accuracy industrial processes. Additionally, it can handle analog current inputs in the range of 0(4) mA to 20 mA, which is a standard range for many industrial sensors, like pressure sensors and flow meters.
- Temperature Sensor Compatibility: Temperature monitoring is crucial in numerous industrial applications. The GIO212 is well - equipped in this regard, as it is compatible with PT100/PT1000 sensors in 2 - , 3 - , and 4 - wire configurations. This allows for accurate temperature measurement in different environmental conditions and installation requirements. Moreover, it supports all standard thermocouples, including types J, K, T, N, E, R, S, and B. This comprehensive temperature sensor compatibility makes it suitable for applications in industries such as food and beverage, where precise temperature control is essential for product quality, and in power generation, where monitoring the temperature of various components is crucial for safe operation.
- Digital I/O Features: On the digital side, it has 24 V digital inputs, which are suitable for receiving signals from standard industrial switches and sensors. It also includes 32 - bit digital counters, which can be used for applications such as counting the number of products passing on a conveyor belt or measuring the rotational speed of a motor by counting encoder pulses. The digital outputs are highly flexible, with the ability to operate in various modes. They can be configured as push - pull, high - side, or low - side outputs, and can also function as PWM (Pulse - Width Modulation)/frequency modulation outputs. This makes the GIO212 suitable for controlling a wide range of devices, from simple solenoid valves to more complex devices like stepper motors.
- Galvanic Isolation: To ensure signal integrity and safety, the GIO212 provides 500 V galvanic isolation from the system. This isolation helps protect the module and the connected devices from electrical transients, ground loops, and other potential electrical hazards. In industrial environments where electrical noise and voltage spikes are common, this galvanic isolation feature is essential for reliable operation.
3. Key Advantages
- Cost - Effectiveness: By serving as a universal module that can handle multiple signal types, the GIO212 significantly reduces the need for purchasing and maintaining different I/O modules for each specific signal type. This not only cuts down on hardware costs but also simplifies logistics and servicing. In a factory with a large number of sensors and actuators, using the GIO212 can lead to substantial savings in terms of both equipment procurement and long - term maintenance expenses.
- Flexibility in Configuration: The module offers a high degree of flexibility in configuration. Each channel can be independently set to operate as an analog or digital input or output, and different modes can be combined easily. This flexibility allows for the customization of the module to suit the specific requirements of different industrial processes. For example, in a process control application where some sensors require analog input and some actuators need digital output control, the GIO212 can be configured accordingly without the need for additional hardware or complex wiring changes.
- Simple Setup with Configuration Wizard: Setting up the GIO212 is a straightforward process, thanks to the configuration wizard available in the Solution Center engineering tool. This wizard guides users through the process of configuring the module, making it accessible even to those with limited technical expertise. It simplifies the process of selecting the appropriate input/output modes, setting parameters for sensors and actuators, and ensuring proper communication between the module and other components in the industrial control system.
4. Typical Applications
- Manufacturing Industry: In manufacturing plants, the GIO212 can be used in a variety of applications. It can interface with sensors on production lines, such as proximity sensors, temperature sensors, and pressure sensors, to monitor the production process. For example, it can measure the temperature of a machine tool during operation to ensure it stays within the optimal range. On the output side, it can control actuators like solenoid valves, which are used to control the flow of fluids in cooling systems or the movement of mechanical parts in assembly processes. In an automotive manufacturing plant, it can be used to control the operation of robotic arms, where the digital outputs can be used to send control signals to the motors of the robotic arm, and the analog inputs can be used to receive feedback from sensors on the arm's position and force.
- Process Control in Industries: In industries such as chemical, pharmaceutical, and food and beverage, precise process control is essential. The GIO212 can be used to monitor and control various process parameters. In a chemical reactor, it can measure the temperature, pressure, and chemical composition of the reactants using its analog input capabilities. Based on these measurements, it can control the opening and closing of valves and the speed of pumps using its digital output capabilities. In a pharmaceutical manufacturing process, it can be used to ensure the accurate dosing of ingredients by controlling the operation of metering pumps. In the food and beverage industry, it can be used to monitor and control the temperature and humidity in storage areas to maintain product quality.
- Building Automation: In commercial buildings, the GIO212 can play a role in building automation systems. It can be used to connect and control various building systems, such as lighting, heating, ventilation, and air - conditioning (HVAC). For example, it can receive analog input signals from temperature and humidity sensors in different areas of the building and use its digital outputs to control the operation of HVAC equipment, such as fans and dampers, to maintain a comfortable indoor environment. It can also be used to control the lighting system, where digital inputs can be used to detect the presence of people in a room, and digital outputs can be used to turn the lights on or off.
-

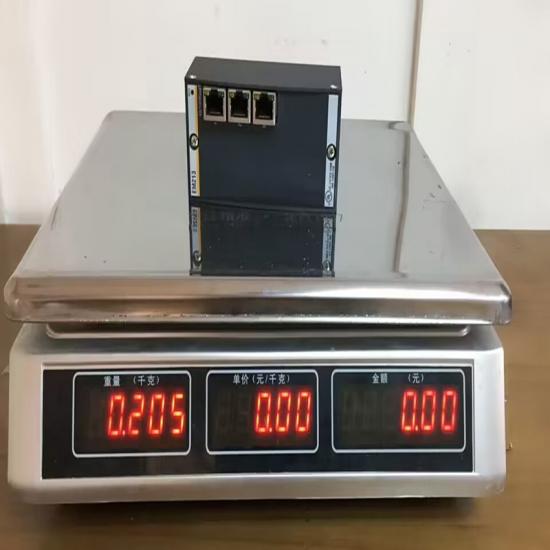

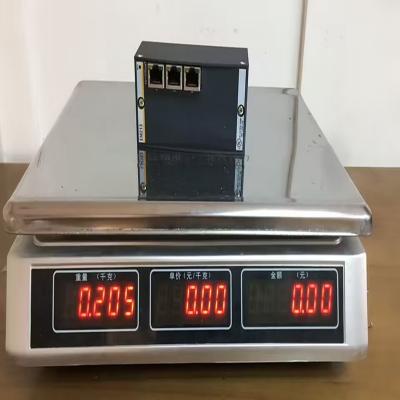

- The structure and details of the product：
