- Bachmann FM221 FASTBUS module
-
1. Product Overview
The Bachmann FM221 FASTBUS module is a crucial component in industrial communication and distributed control systems. It is engineered to enable seamless and efficient data transfer between various sub - devices in a network, playing a vital role in modern industrial automation setups.
Originating from Austria, Bachmann has designed the FM221 as part of its FASTBUS series, which is renowned for its high - speed and reliable communication capabilities. This module serves as a master in the FASTBUS network, coordinating data flow and ensuring that all connected sub - stations can communicate effectively. Its compact design and robust construction make it suitable for installation in diverse industrial environments, from large - scale manufacturing plants to power - intensive facilities.
2. Technical Features
- Fiber Optic Connectivity: The FM221 is equipped with a single Fiber Optic (FO) interface, specifically an LC connector. This fiber optic connection is a key feature that enables high - speed data transmission. It supports multimode fiber with core diameters of 50/125 μm and 62.5/125 μm. Multimode fiber is well - suited for short - to - medium - range communication in industrial settings, offering the advantage of being able to carry multiple light rays (modes) simultaneously, which increases the data - carrying capacity. The use of fiber optic technology also provides excellent resistance to electromagnetic interference, ensuring reliable data transfer even in electrically noisy industrial environments.
- Transmission Distance: One of the remarkable features of the FM221 is its ability to support long - distance communication. It can achieve a maximum distance of up to 2000 meters between stations. This extended reach is crucial for industrial applications where sub - stations may be spread out over large areas. For example, in a sprawling manufacturing complex with multiple production lines located in different buildings, the FM221 can effectively connect these distant sub - stations. The total system length that can be supported is 2300 meters, which allows for the creation of extensive and comprehensive industrial networks.
- FOC Guide Wavelength and Link Budget: The FOC guide wavelength of the FM221 is set at 1310 nm. This wavelength is commonly used in fiber optic communication systems as it offers a good balance between signal attenuation and performance. The module also has a link budget of 8 dB, with a 3 dB reserve. The link budget is a measure of the total amount of signal loss that the communication link can tolerate while still maintaining reliable communication. The 3 dB reserve provides additional margin for potential signal degradation due to factors such as cable losses, connector imperfections, or environmental conditions, ensuring consistent and stable data transfer.
- Temperature and Humidity Tolerance: The FM221 is designed to operate in a wide range of environmental conditions. It can function within an operating temperature range from - 30 °C to + 60 °C. This wide temperature tolerance makes it suitable for use in various industrial settings, including cold storage facilities and hot manufacturing plants. The storage temperature range is even broader, from - 40 °C to + 85 °C, allowing for safe storage of the module in different environments. In terms of humidity, it can handle relative humidity levels from 5 % to 95 % (non - condensing). This non - condensing humidity range ensures that the module remains operational without the risk of water vapor condensing on its components, which could lead to electrical short - circuits or corrosion.
- Pollution Degree and Certification: The module is rated for pollution degree 2 according to IEC 60664 - 1. This rating indicates that the module is suitable for use in environments where non - conductive pollution is present, and occasional condensation may occur. In addition, the FM221 has marine - certification, making it highly suitable for use in harsh marine environments. Marine applications often involve exposure to saltwater, high humidity, and mechanical vibrations, and the FM221's marine - certification ensures that it can withstand these challenging conditions and maintain reliable operation.
3. Functional Advantages
- High - Speed and Low - Delay Communication: The FM221 offers minimal signal delay, which is crucial for high - speed communication in industrial processes. In applications where real - time data transfer is essential, such as in automated production lines or power grid control systems, the low - delay communication of the FM221 ensures that control commands are executed promptly, and sensor data is received in a timely manner. For example, in a high - speed packaging machine, the FM221 can quickly transfer data about the position of products on the conveyor belt to the control system, allowing for precise control of the packaging process.
- Support for Multiple Sub - stations: It can support up to 15 distributed sub - stations. This scalability is a significant advantage in industrial networks, as it allows for the expansion of the control system as the business grows or as new production lines are added. In a large - scale factory, the FM221 can be used to connect multiple sub - stations, each controlling different aspects of the production process, such as machinery operation, quality control sensors, and material handling systems. This enables centralized monitoring and control of the entire production facility from a single location.
- Robust Connection Technology: The module features a flexible and robust connection technology. It can be connected via either a robust Harting push - pull ® connector or an LC patch cable. The Harting push - pull ® connector is known for its durability and ease of use in industrial environments. It provides a secure connection that can withstand vibrations, shocks, and rough handling. The LC patch cable, on the other hand, offers a more flexible and precise connection option, especially for applications where a clean and organized cabling setup is required. This dual - connection option allows for easy integration into different industrial setups, depending on the specific requirements of the installation.
- Integrated Diagnostics: The FM221 comes with integrated diagnostics, which are indicated by a three - color status LED. The LED provides visual feedback on the operational status of the module, making it easy for technicians to quickly identify any issues. For example, a green LED may indicate normal operation, a yellow LED could signal a warning or a minor issue, and a red LED would indicate a critical fault. This integrated diagnostic feature simplifies maintenance and troubleshooting, reducing downtime and improving the overall efficiency of the industrial system.
4. Application Scenarios
- Manufacturing Industry: In manufacturing plants, the FM221 can be used to connect different parts of an automated production line. It can link robotic arms, conveyor belts, and machine tools, enabling seamless communication between these devices. For example, it can transfer data from sensors on a robotic arm, such as its position and movement speed, to the control system of a machine tool. This allows for precise coordination between the two devices, ensuring accurate and efficient manufacturing processes. In a large - scale automotive manufacturing plant, the FM221 can be used to connect multiple sub - stations, each controlling different aspects of the assembly line, such as body welding, painting, and final assembly.
- Power Generation and Distribution: In power plants, whether they are based on fossil fuels, renewable energy sources like wind or solar, or hydroelectric power, the FM221 plays a crucial role in communication between different components. In a wind farm, it can be used to connect the control systems of individual wind turbines to a central monitoring station. The module can quickly transfer data about wind speed, turbine blade pitch, and generator output to the central station, allowing for real - time monitoring and control of the entire wind farm. In a power distribution network, the FM221 can be used to connect remote substations to a main control center, enabling efficient monitoring and management of voltage levels, current flow, and power distribution.
- Marine and Offshore Applications: Due to its marine - certification, the FM221 is highly suitable for marine and offshore applications. On a ship, it can be used to connect various onboard systems, such as the engine control system, navigation equipment, and communication systems. In an offshore oil rig, the module can be used to establish communication between different sub - stations located on the rig, including those for oil production, drilling operations, and safety monitoring. The module's ability to withstand harsh marine environments, including saltwater corrosion, high humidity, and mechanical vibrations, makes it a reliable choice for these critical applications.
- Process Control in Industries: In industries such as chemical, pharmaceutical, and food and beverage, precise process control is essential. The FM221 can be used to connect sensors and actuators in these processes, enabling real - time monitoring and control. In a chemical plant, it can transfer data from sensors measuring temperature, pressure, and chemical composition to the control system, which can then adjust the operation of pumps, valves, and reactors. In a pharmaceutical factory, the module can be used to connect equipment involved in drug manufacturing, such as mixing tanks, filling machines, and sterilization equipment, ensuring accurate and consistent production processes.
-
-

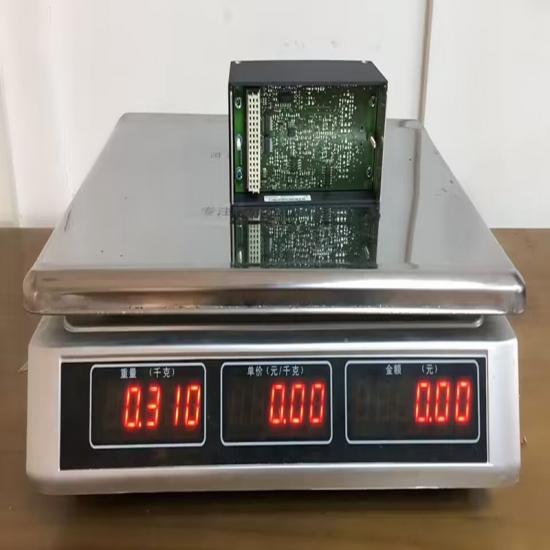

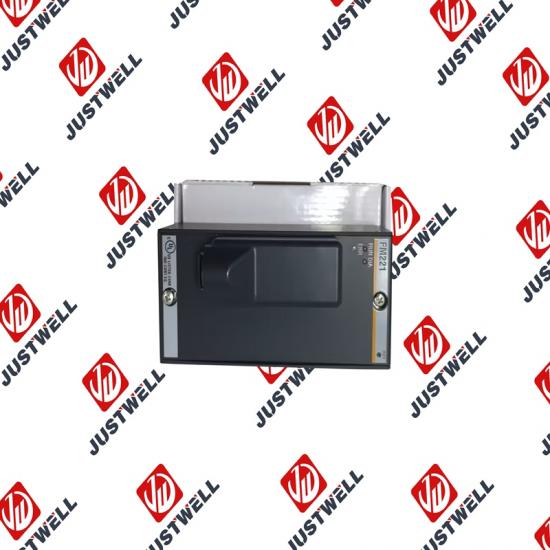

The structure and details of the product：
