1. Product Overview
The Bachmann DMS202 is a high - precision strain gauge input module engineered to meet the exacting demands of industrial applications where accurate measurement and monitoring of strain gauge signals are crucial. This module serves as a vital link between strain gauge sensors and control systems, enabling seamless data acquisition and processing.
With its microcontroller - operated design, the DMS202 is capable of handling rapidly changing strain gauge signals with remarkable speed and precision. It is designed to be integrated into a variety of industrial setups, including those in manufacturing plants, power generation facilities, and research laboratories. The module's compact form factor allows for easy installation in control cabinets, minimizing space requirements while maximizing functionality.
2. Technical Specifications
- Channel Configuration: The DMS202 features 2 strain gauge measurement inputs, providing the flexibility to connect multiple strain gauge sensors simultaneously. This dual - channel design is beneficial in applications where differential measurements are required, such as in stress and strain analysis of mechanical structures. Each input is equipped with a high - quality plug - in connector, ensuring reliable and secure connections for stable signal transfer.
- Sampling Rate and Time: It has an impressive sampling rate of up to 1 kHz, with an incredibly short sample time of only 12.5 µs per channel (25 µs for two - channel operation). This high - speed sampling enables the module to capture rapid changes in strain gauge signals accurately, making it suitable for applications where real - time monitoring of dynamic events is essential. For example, in a high - speed manufacturing process where components are subject to rapid stress and strain changes, the DMS202 can quickly detect and record these variations.
- Measurement Range: The module offers a wide range of input measurement options. The input range selection includes 2.0 / 4.0 / 8.0 / 16.0 mV, or it can be set to auto - range. The auto - range feature is particularly useful as it allows the module to automatically adjust to the appropriate measurement range based on the incoming signal strength. This ensures optimal signal resolution and accuracy, regardless of the magnitude of the strain being measured.
- Resolution: With a 12 - bit resolution, the DMS202 provides high - precision measurements. This level of resolution enables the detection of even the smallest changes in strain, which is critical in applications where minute variations in stress levels can have significant implications. In a materials testing laboratory, for instance, the 12 - bit resolution allows for accurate determination of the mechanical properties of materials under stress.
- Analog Outputs: There are 2 analog measurement outputs, which can be used to interface with other control devices such as Programmable Logic Controllers (PLCs) or data acquisition systems. The output voltage range is typically 0 to 10 V, with an internal resistance of less than 2 ω. These analog outputs provide a convenient way to transfer the processed strain data to other parts of the control system for further analysis and control actions.
- Wire Break Detection and External Supply Voltage Monitoring: The DMS202 is equipped with wire break detection functionality, which continuously monitors the measurement inputs for any signs of wire breaks. This feature is essential for ensuring the integrity of the measurement system, as a broken wire can lead to inaccurate readings or complete loss of signal. Additionally, it monitors the external supply voltage to ensure stable operation of the module. If the supply voltage falls outside the acceptable range, the module can take appropriate action, such as generating an alarm or shutting down safely to prevent damage.
- Carrier Frequency and Common Mode Rejection Ratio: The carrier frequency of the module is 5 kHz ± 2%, which is used in the measurement process to enhance the signal - to - noise ratio. The common mode rejection ratio (CMRR) is an impressive 80 dB (0 to 5 kHz). A high CMRR value indicates that the module is highly effective at rejecting common mode noise, which can interfere with the accurate measurement of strain gauge signals. In industrial environments where there is a lot of electrical noise, such as in a power plant or a factory floor, the high CMRR of the DMS202 helps to ensure reliable and accurate measurements.
- Galvanic Isolation: To enhance safety and reduce noise interference, the DMS202 offers 500 V of galvanic isolation between the system and the module. This isolation protects the module and the connected equipment from electrical transients and ground loops, which can cause damage or inaccurate readings. It also helps to improve the overall electromagnetic compatibility (EMC) of the system, making it suitable for use in a wide range of industrial settings.
3. Functional Advantages
- High - Precision Measurements: The combination of its high - speed sampling, wide measurement range, and 12 - bit resolution allows the DMS202 to deliver highly accurate strain measurements. This precision is crucial in applications where the integrity and performance of mechanical structures, such as in bridges, aircraft components, or industrial machinery, depend on accurate stress and strain data. By providing precise measurements, the module enables engineers and operators to make informed decisions regarding maintenance, safety, and process optimization.
- Automatic Range Selection: The auto - range feature simplifies the setup and operation of the module. It eliminates the need for manual adjustment of the measurement range, reducing the risk of human error and ensuring that the module is always operating at its optimal performance. This is particularly beneficial in applications where the magnitude of the strain being measured can vary widely, such as in a testing laboratory where different materials and specimens are subjected to various levels of stress.
- Reliable Wire Break Detection: The continuous wire break detection functionality provides an added layer of reliability to the measurement system. In industrial applications, where sensors and wiring are often exposed to harsh environments, wire breaks can occur due to factors such as vibration, corrosion, or mechanical stress. The DMS202's ability to detect wire breaks immediately allows for quick troubleshooting and maintenance, minimizing downtime and ensuring the continuous operation of the monitoring system.
- Stable Operation with External Supply Voltage Monitoring: Monitoring the external supply voltage helps to ensure the stable and reliable operation of the DMS202. In industrial settings, power supply fluctuations are common, and these can affect the performance of electronic components. By continuously monitoring the supply voltage, the module can maintain its accuracy and functionality, even in the face of voltage variations. This is important for applications where uninterrupted and accurate strain measurement is critical, such as in a continuous manufacturing process.
- Effective Noise Rejection: The high carrier frequency and excellent CMRR, along with the galvanic isolation, make the DMS202 highly effective at rejecting noise. In industrial environments, electrical noise from motors, generators, and other equipment can interfere with the accurate measurement of strain gauge signals. The module's noise - rejection capabilities ensure that the measured strain data is clean and reliable, enabling accurate analysis and control of industrial processes.
4. Application Scenarios
- Manufacturing Industry: In manufacturing plants, the DMS202 can be used to monitor the stress and strain on machinery components during operation. For example, in a metal stamping press, strain gauges can be attached to critical parts such as the punch and die. The DMS202 can then measure the strain on these components in real - time, providing valuable information about the wear and tear of the equipment. This data can be used to schedule preventive maintenance, optimize the production process, and ensure the quality of the stamped parts. In a robotic assembly line, the module can also be used to monitor the forces exerted by robotic arms, ensuring that they are operating within safe and efficient limits.
- Power Generation: In power plants, whether thermal, hydro, or renewable, the DMS202 plays a crucial role in monitoring the structural integrity of power - generating equipment. For instance, in a steam turbine, strain gauges can be installed on the turbine blades to measure the strain caused by high - speed rotation and thermal stress. The DMS202 can accurately measure these strains and transmit the data to a control system. This information is used to detect any signs of fatigue or impending failure in the turbine blades, allowing for timely maintenance and preventing costly breakdowns. In a wind turbine, the module can be used to monitor the strain on the blades and the tower, ensuring the safe and efficient operation of the wind energy conversion system.
- Materials Testing and Research: In materials testing laboratories and research institutions, the DMS202 is an essential tool for studying the mechanical properties of materials. When conducting tensile, compression, or bending tests on materials samples, strain gauges are used to measure the deformation of the samples under stress. The DMS202 can accurately capture the strain gauge signals, providing researchers with precise data about the stress - strain relationship of the materials. This data is used to develop new materials, improve the performance of existing materials, and validate theoretical models. For example, in the development of advanced composite materials for aerospace applications, the accurate measurement of strain using the DMS202 is crucial for understanding the material's behavior under different loading conditions.
- Structural Health Monitoring: In the field of civil engineering, the DMS202 can be used for structural health monitoring of buildings, bridges, and other infrastructure. Strain gauges can be installed at critical locations on these structures to measure the strain caused by factors such as traffic loads, wind forces, and temperature changes. The DMS202 can continuously monitor these strains and detect any abnormal changes, which could indicate structural damage or deterioration. This early detection of structural problems allows for timely repairs and maintenance, ensuring the safety and longevity of the infrastructure. For example, in a large suspension bridge, the module can be used to monitor the strain on the cables and the main girder, providing valuable information about the bridge's structural integrity.
-

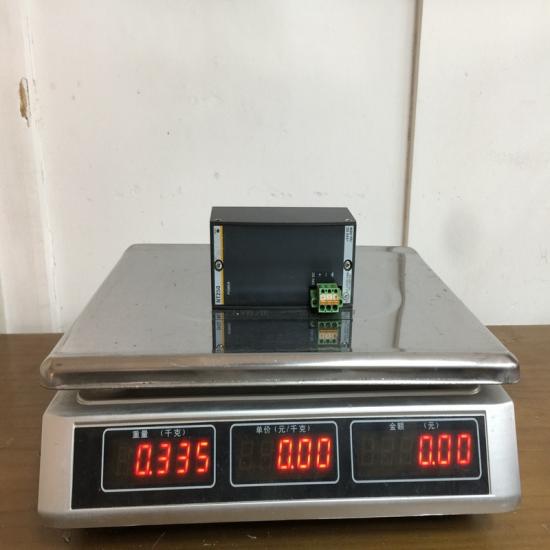

The structure and details of the product：
