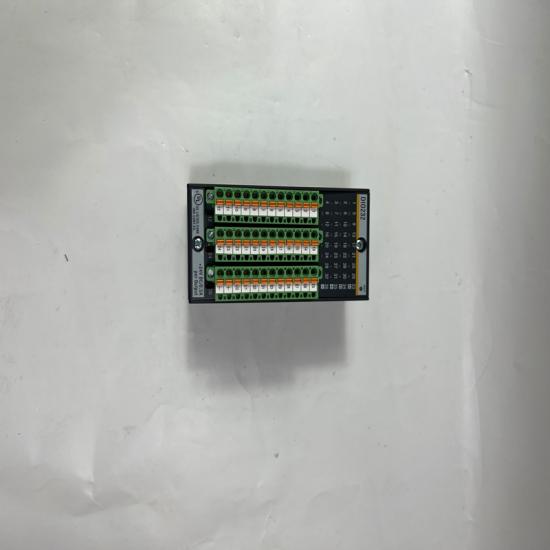

BACHMANN DIO232 Digital Input/Output Module
Item NO.:
DIO232Payment:
T/TPrice:
$600Product Origin:
USAColor:
NEWProduct weight:
0.21KGLead Time:
In stockWe will arrange delivery within 3-5 days after receiving the payment.
Our express delivery: DHL and FedEx.
Quality packing for each product
Destination country all taxes & duty to be paid by buyer
Only part of the brand and model, if you have other product needs, please contact us.
The BACHMANN DIO232 is a flexible digital input/output (I/O) module designed for industrial automation systems. It allows users to configure each channel as either an input or output, making it highly adaptable for various control applications. The module supports 16 to 32 digital inputs and 0 to 16 digital outputs, depending on configuration, and is compatible with BACHMANN’s M1 controller system .
✔ Configurable I/O Channels – Each channel can be set as an input or output for maximum flexibility .
✔ Multiple Voltage Options – Supports 24V DC (18-34V) and 48V DC (30-58V) variants for different industrial needs .
✔ Interrupt Input Capability – Allows critical signals to trigger immediate system responses .
✔ LED Status Indicators – Visual feedback for each channel’s state (ON/OFF, error detection) .
✔ Short-Circuit & Overload Protection – Built-in safety features to prevent damage .
✔ Fast Response Time – Input filtering options (e.g., 3ms typical delay) for noise immunity .
✔ Compact & Modular Design – Saves space in control cabinets and supports FASTBUS, CAN, or PROFINET communication .
| Parameter | Details |
|---|---|
| Input Channels | 16 to 32 (configurable) |
| Output Channels | 0 to 16 (configurable) |
| Input Voltage | 24V DC (18-34V) or 48V DC (30-58V) |
| Output Current | Up to 2.5A per channel (16-channel version) or 1A/0.5A (32-channel version) |
| Isolation | Electrical isolation between input groups |
| Communication | Supports FASTBUS (fiber optic), CAN, PROFINET |
| Status LEDs | RUN (green), INT (yellow), ERR (red) |
| Certifications | RoHS, CE compliant |
The DIO232 is widely used in:
Wind turbine control systems
Industrial machinery automation (e.g., presses, robots)
Process control in power plants
Material handling systems (conveyors, cranes)
Safety interlocks & emergency stop circuits
Distributed I/O systems requiring flexible configuration .
