Bachmann BES212/N bus expansion module
1. Product Overview
The Bachmann BES212/N is a dedicated bus expansion module engineered for industrial distributed control systems, specializing in extending the coverage of Bachmann’s FASTBUS network and enhancing signal reliability in large-scale setups. Originating from Austria, this module acts as a "network bridge" between remote I/O substations and central control units (e.g., MX220 processor, SLC284 safety processor), solving challenges of signal attenuation and distance limitations in expansive industrial environments.
With a compact DIN rail-mounted design, the BES212/N fits seamlessly into standard control cabinets and field-mounted enclosures. It is optimized for harsh industrial conditions, ensuring stable operation in environments with electromagnetic interference (EMI), temperature fluctuations, and mechanical vibration. This module is a key component for scaling FASTBUS networks—ideal for applications where I/O devices are spread across large areas, such as industrial plants, renewable energy farms, and infrastructure projects.
2. Core Technical Features
- Bus Compatibility & Topology: Specifically designed for Bachmann FASTBUS, supporting both linear and ring network topologies. The ring topology enables redundant communication paths, automatically switching to a backup path if the primary line fails, minimizing downtime. It acts as a signal repeater, extending the maximum network distance by amplifying and regenerating FASTBUS signals.
- Signal Transmission Specifications: Supports fiber-optic (FO) communication, compatible with HCS/PCF (150 m) and POF (40 m) cables. For copper-based FASTBUS, it extends the maximum segment distance from the standard 100 m to 200 m per module. This flexibility allows adaptation to different installation environments—fiber for long-distance, EMI-prone areas, and copper for shorter, cost-sensitive setups.
- Power & Electrical Protection: Operates on 24 V DC input (18–34 V DC), with low power consumption (max. 0.8 A @ 24 V, 12 W nominal). Integrates overvoltage protection (up to 36 V DC) and reverse polarity protection (≤-30 V DC) to safeguard against wiring errors and power surges—critical for field-mounted installations with unstable power supplies.
- Environmental Adaptability: Operating temperature range: -30℃ to +60℃; storage temperature: -40℃ to +85℃. Resists vibration (IEC 60068-2-6: 10–500 Hz, 10 g acceleration) and humidity (5–95% non-condensing). Complies with IEC 61000-6-2 for EMC immunity, ensuring stable performance near industrial motors, inverters, and high-voltage equipment.
- Status Monitoring: Equipped with LED indicators for "Power," "Bus Active," and "Fault" statuses. The "Fault" indicator triggers for issues like signal loss, power anomalies, or network overload, enabling quick troubleshooting. It also supports diagnostic data transmission to the central controller via FASTBUS, providing real-time network health insights.
3. Functional Advantages
- Extended Network Coverage: By regenerating FASTBUS signals, the BES212/N overcomes signal attenuation in long-distance transmissions. For example, in a large solar farm with inverters spread 500 m apart, multiple BES212/N modules can be daisy-chained to connect all inverters to the central control system—eliminating the need for costly fiber-optic upgrades or additional controllers.
- Redundant Reliability (Ring Topology): In ring mode, the module enables a self-healing network. If a fiber/copper segment is damaged, the network automatically reroutes data through the backup path within 100 ms—critical for safety-critical applications (e.g., power plant auxiliary systems) where downtime risks equipment damage or safety hazards.
- Easy Integration & Scalability: Native compatibility with Bachmann’s FASTBUS ecosystem (e.g., FM212 master module, DI0248 I/O modules) allows plug-and-play integration. No custom programming is required—simply mount the module, connect the bus cables, and configure via Bachmann Solution Center. It supports up to 15 cascaded modules per network, enabling scalable expansion as the system grows.
- Cost-Effective Deployment: Reduces the need for additional master controllers by extending the reach of existing FASTBUS networks. For a manufacturing plant expanding its production line 200 m from the main control room, the BES212/N avoids the expense of a new controller, cutting hardware costs by 40–50%.
4. Typical Applications
- Renewable Energy Farms: In wind farms, the BES212/N connects remote wind turbine controllers (equipped with GMP232 grid modules) to the central SCADA system. It extends FASTBUS signals across 300–500 m between turbines, ensuring real-time transmission of power output, blade status, and grid connection data. Ring topology provides redundancy, preventing data loss during cable damage from weather or wildlife.
- Large-Scale Manufacturing: In automotive assembly plants with production lines spread across 100–200 m, the module extends FASTBUS to connect DI0248 I/O modules (monitoring proximity sensors, conveyor status) to the MX220 processor. It regenerates signals to avoid data corruption, ensuring synchronized control of robotic arms, painting booths, and quality inspection stations.
- Infrastructure & Utilities: In water treatment plants with pumps and valves distributed across a 400 m site, the BES212/N links field I/O modules (e.g., GIO212 universal I/O) to the central control system. It operates reliably in humid, chemical-exposed environments, ensuring continuous monitoring of water flow, pH levels, and pump status.
- Power Plant Auxiliary Systems: In thermal power plants, the module extends FASTBUS to connect auxiliary equipment (e.g., boiler feedwater pumps, cooling fans) to the SLC284 safety processor. Ring topology ensures redundant communication, critical for preventing auxiliary system failures that could disrupt power generation.
-

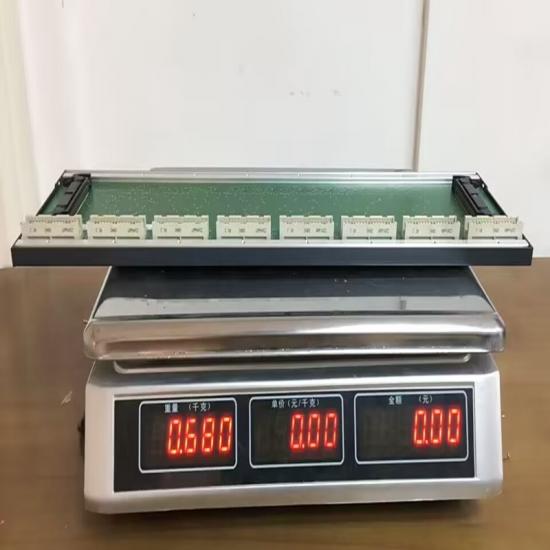

- The structure and details of the product：
