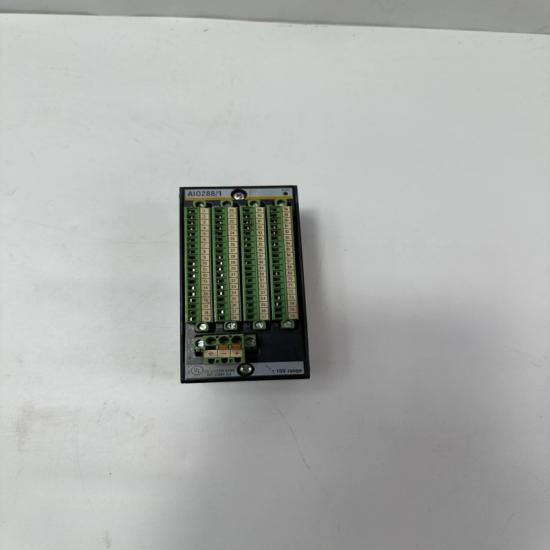

BACHMANN AIO288/1 Analog Input/Output Module

1. Product Overview

The BACHMANN AIO288/1 is a high-performance analog input/output module designed for precision measurement and control applications in industrial automation systems. This module combines 8 analog input channels and 8 analog output channels in a compact form factor, offering exceptional accuracy and flexibility for demanding process control environments.

2. Key Features

1. High-precision analog signal processing with 16-bit resolution

2. 8 universal analog input channels supporting multiple signal types

3. 8 isolated analog output channels with ±10V range

4. Integrated temperature measurement for Pt100/Pt1000 sensors

5. Comprehensive diagnostic functions including wire break detection

6. Galvanic isolation between channels and system

3. Technical Specifications

3.1 Input Channels

• Channels: 8 universal analog inputs

• Signal types:

  • Voltage: ±10V, ±1V

  • Current: 0-20mA, 4-20mA

  • Resistance: Pt100, Pt1000 (2/3/4-wire)

• Resolution: 16-bit

• Accuracy: ±0.05% of range (voltage), ±0.1% (current)

• Sampling rate: 100μs per channel

• Input impedance: >1MΩ (voltage), 250Ω (current)

3.2 Output Channels

• Channels: 8 isolated analog outputs

• Signal type: ±10V

• Resolution: 16-bit

• Accuracy: ±0.025% of range

• Settling time: <500μs

• Load capacity: 2kΩ minimum

3.3 General Specifications

• Isolation voltage: 500V AC (channel to system)

• Operating temperature: -40°C to +70°C

• Power supply: 24V DC (18-34V range)

• Communication: FASTBUS, CAN, PROFINET

• Certifications: CE, UL, RoHS compliant

4. Typical Applications

1. Process control systems in chemical/petrochemical plants

2. Wind turbine monitoring and control

3. Temperature control systems

4. Test and measurement equipment

5. Distributed control systems

6. Machine automation

7. Energy management systems

5. Installation and Configuration

1. Ensure proper grounding and shielding for analog signals

2. Verify signal types and ranges before connection

3. Use appropriate cable types for different signal categories

4. Configure via BACHMANN SolutionCenter software

5. Maintain proper ventilation and spacing in control cabinet

6. Follow EMC guidelines for industrial installations

6. Product Advantages

1. Exceptional measurement accuracy for precise control

2. Flexible configuration for diverse signal types

3. Fast response time for real-time applications

4. Robust industrial design for harsh environments

5. Comprehensive diagnostic capabilities

6. Seamless integration with BACHMANN control systems

The structure and details of the product：
