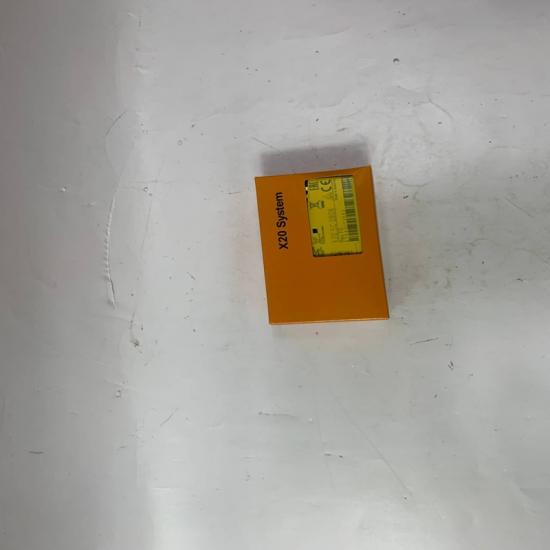

B&R X20SC0806 Secure Digital Module

Product Description

The B&R X20SC0806 is a digital I/O module from the X20 system, designed for safety-critical industrial automation applications. It combines 8 safety digital inputs and 6 safety digital outputs (24V DC), along with 4 pulse outputs, making it ideal for machine safety systems, emergency stop circuits, and SIL 3/PL e-compliant control applications .

Key Features & Advantages

1. Safety-Certified Design

   • SIL 3 (IEC 61508) and PL e (ISO 13849-1, Category 4) certified for high-integrity safety applications .

   • Dual-channel diagnostics for fault detection (e.g., short-circuit, open-wire) with <10µs OSSD response time .

2. Flexible I/O Configuration

   • 8 safety inputs (Type A): Supports 24V DC signals with configurable software filters (0–500ms) .

   • 6 safety outputs (Type B2): 0.2A sourcing outputs with integrated protection against surge currents .

   • 4 pulse outputs: Push-pull type, 50mA max, for sensor excitation or diagnostic signaling.

3. Robust Industrial Performance

   • 500V isolation between channels and backplane for noise immunity

   • IP20 protection and -25°C to +60°C operating range .

4. Easy Integration

   • Compatible with B&R X20 system and Automation Studio 4.0+ for configuration .

   • LED status indicators per channel for real-time monitoring .

Technical Specifications

Applications

• Safety interlocks for presses, robots, and conveyors .

• Emergency stop monitoring in packaging/HVAC systems .

• Sensor diagnostics via pulse outputs .

Installation Notes

• Use shielded cables for inputs/outputs to reduce EMI .

• Ensure proper terminal block alignment (X20 12-pin) .
