B&R X20CP0483 processor module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

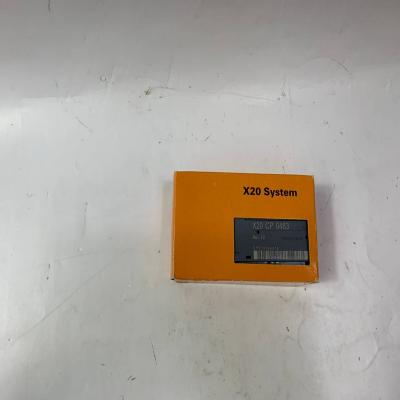

B&R X20CP0483 Processor Module

Product Description

The B&R X20CP0483 is a compact CPU module from the X20 Compact-S series, designed for industrial automation applications. It features an ARM Cortex-A9 processor (500 MHz) with 256 MB DDR3 SDRAM and 1 GB eMMC flash storage, making it suitable for real-time control tasks in OEM machinery, packaging, and CNC systems. The module supports POWERLINK V2, Ethernet, USB, and RS232/RS485 interfaces, enabling seamless integration into distributed control networks .

Key Features & Advantages

1. High-Performance Processing

   • 500 MHz ARM Cortex-A9 with 32 kB L1 cache and 512 kB L2 cache for fast task execution .

   • Integrated I/O processor for background data handling, reducing CPU load .

   • Short task cycle time: 0.8 ms for standard PLC tasks, with reACTION technology enabling 1 µs response times for high-speed applications .

2. Robust Communication Interfaces

   • POWERLINK V2 (100 Mbps): Supports real-time industrial Ethernet for motion control .

   • Ethernet (10/100 Mbps): For standard TCP/IP communication .

   • 2x USB 2.0, 1x RS232/RS485: Flexible connectivity for peripherals and legacy devices .

3. Compact & Maintenance-Free Design

   • Dimensions: 85 × 90 × 150 mm, weight: ~0.5 kg .

   • Fanless and batteryless, with IP20 protection for industrial environments .

4. Extended Storage & Diagnostics

   • 1 GB flash storage for application data (40 TB write endurance) .

   • LED indicators for CPU status, Ethernet, and POWERLINK diagnostics.

5. Wide Compatibility

   • Works with X20 I/O modules (e.g., digital, analog, motion control) via X2X Link .

   • Supports IEC 61131-3 programming (FBD, ST, etc.) in B&R Automation Studio .

Technical Specifications

Applications

• Packaging machines: High-speed synchronization via POWERLINK .

• CNC systems: Precision motion control with reACTION-enabled I/O .

• Energy management: Data logging and process monitoring .

Installation Notes

• Requires X20BB5x/6x/7x base module and X20PS9600 power supply .

• Use shielded cables for POWERLINK/Ethernet to minimize EMI .

The structure and details of the product：
