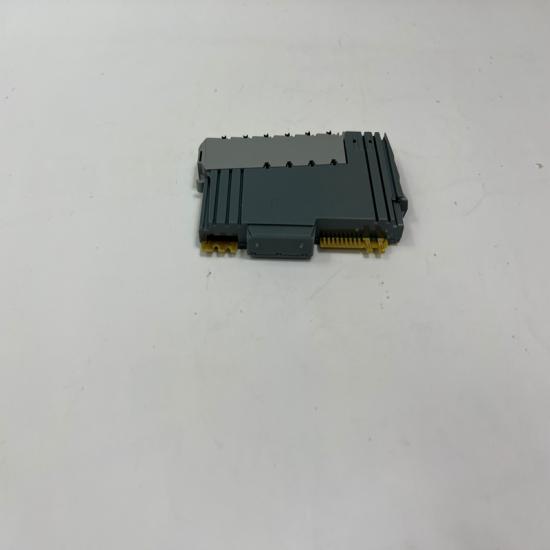

B&R X20PS9400 Power Supply Module

Product Overview

The B&R X20PS9400 is a 24V DC power supply module designed for industrial automation systems. It provides power to bus controllers, X2X Link interfaces, and internal I/O components in B&R’s X20 system. The module supports parallel operation for redundancy and features electrical isolation between the power supply and control circuits for enhanced safety.

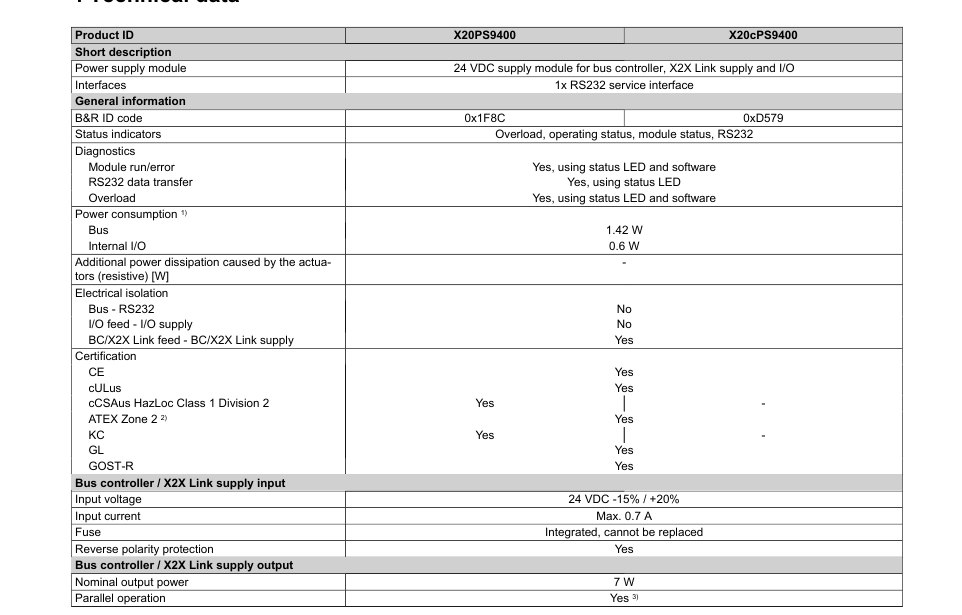

Key Features & Technical Specifications

1. Power Supply & Output

   • Input Voltage: 24V DC (-15% to +20%)

   • Output Power: 7W (reduced to 75% in parallel mode)

   • Redundancy Support: Multiple modules can operate in parallel for backup power.

2. Electrical Isolation & Protection

   • Isolation: Between bus controller/X2X Link power and I/O power

   • Protection: Reverse polarity protection, integrated fuse (non-replaceable)

   • Short-Circuit Protection: Built-in safeguards for overload conditions.

3. Communication & Diagnostics

   • RS232 Service Interface: For configuration and monitoring (max. 115.2 kbit/s)

   • Status LEDs: Indicate overload, operation status, and module errors.

4. Environmental & Mechanical Specs

   • Operating Temperature:

     • Horizontal Mounting: -25°C to +60°C

     • Vertical Mounting: -25°C to +50°C

   • Protection Rating: IP20 (dust-resistant)

   • Humidity Range: 5% to 95% (non-condensing)

   • Mounting Options: Horizontal or vertical installation.

5. Certifications & Compliance

   • CE, UKCA, ATEX (Zone 2), UL, GOST-R, DNV, ABS, BV

   • Suitable for hazardous environments (Class I, Div 2).

Applications

1. Industrial Automation: Power distribution in PLC and control systems

2. Energy & Power Systems: Redundant power for turbine and generator controls

3. Manufacturing & Process Control: Reliable power for machinery and production lines

4. Marine & Offshore: Harsh-environment power supply for shipboard automation.

Installation & Usage Notes

1. Power Requirements: Ensure stable 24V DC input within the specified range.

2. Mounting: Follow orientation guidelines (horizontal preferred for better cooling).

3. Redundancy Setup: Verify synchronization when using multiple modules in parallel.

4. Maintenance: Regularly check status LEDs and firmware updates via B&R Automation Studio.

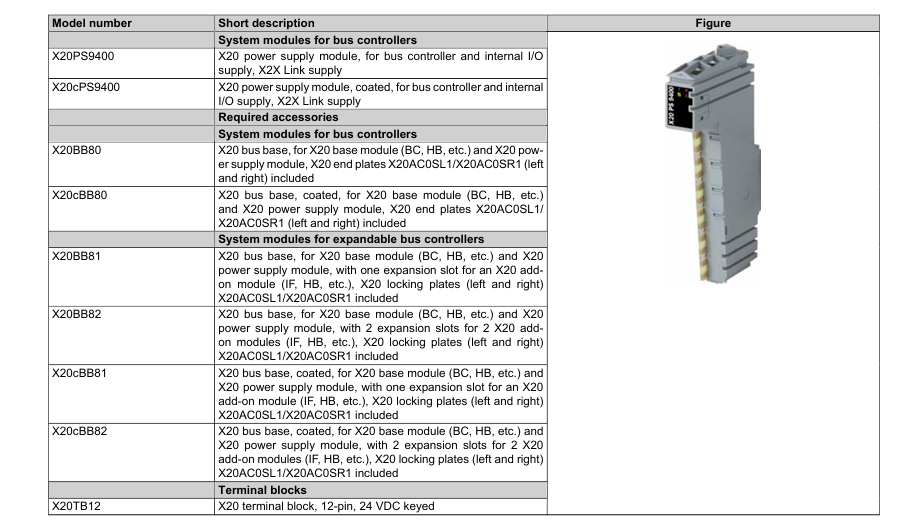

The structure and details of the product：
