B&R X20DO8322 Digital Output Module

Product Overview

The B&R X20DO8322 is an 8-channel digital output module designed for industrial automation systems. It provides 24V DC source-type outputs with 0.5A per channel (4A total), making it suitable for controlling actuators, relays, and other industrial devices. The module supports single-wire connection and features integrated output protection, including thermal shutdown for overcurrent/short-circuit conditions .

Key Features & Technical Specifications

1. Output Configuration

   • 8 digital outputs (source-type, FET-based)

   • Nominal voltage: 24V DC (-15% to +20%)

   • Nominal current: 0.5A per channel (4A total)

   • Peak short-circuit current: <12A (with auto-recovery after ~10ms)

   • Switching frequency: Up to 500 Hz (resistive loads)

2. Protection & Diagnostics

   • Integrated thermal shutdown for overcurrent/short-circuit protection

   • Internal freewheeling diode for inductive load switching

   • Status LEDs for per-channel monitoring (I/O function, operation, errors)

   • Leakage current: <5µA when off

3. Electrical & Environmental Specs

   • Isolation: 500V between channels and bus (no isolation between channels)

   • Power consumption:

     • Bus: 0.26W

     • Internal I/O: 0.8W

   • Operating temperature:

     • Horizontal mounting: -25°C to +60°C

     • Vertical mounting: -25°C to +50°C

   • Protection rating: IP20

4. Certifications

   • CE, UKCA, UL, ATEX (Zone 2), DNV, ABS, BV, EAC, KC

Applications

• Industrial automation (PLC-controlled machinery)

• Packaging & printing systems

• Energy & power distribution

• Marine & offshore equipment

Installation Notes

1. Mounting: Requires X20TB12 terminal block and X20BM11 bus module (sold separately) .

2. Wiring: Use shielded cables for noise reduction.

3. Load compatibility: Verify inductive load switching requirements (max. 50V DC braking voltage).

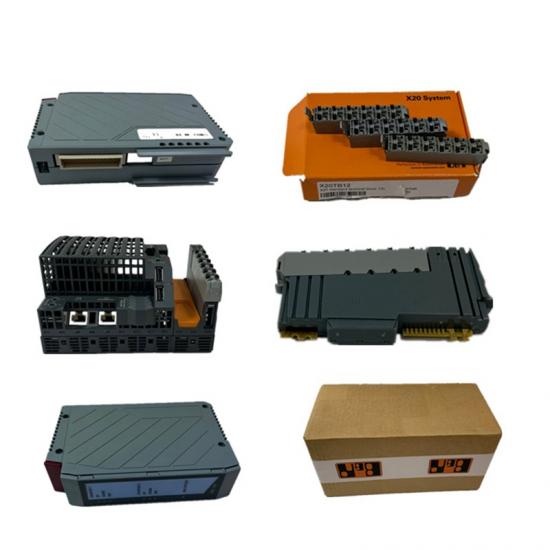

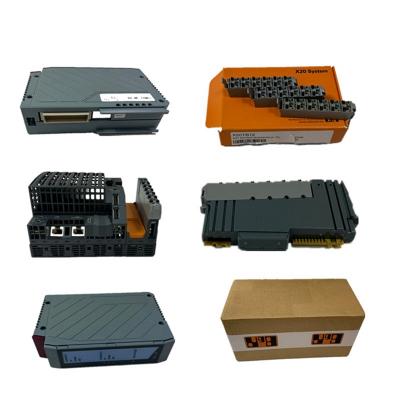

The structure and details of the product：
