B&R X20DO8322 Digital Output Module
Item NO.:
X20DO8322Payment:
T/TPrice:
$1350Product Origin:
AUSTRIAColor:
NEWProduct weight:
0.09KGLead Time:
In stockWe will arrange delivery within 3-5 days after receiving the payment.
Our express delivery: DHL and FedEx.
Quality packing for each product
Destination country all taxes & duty to be paid by buyer
Only part of the brand and model, if you have other product needs, please contact us.
The B&R X20DO8322 is an 8-channel Digital Output Module designed for the B&R X20 I/O System. It provides 24 VDC transistor outputs for controlling industrial field devices such as solenoid valves, relays, contactors, indicator lamps, and actuators.
The module uses source output (PNP) technology with 1-wire connection, and features integrated output protection functions including overload and short-circuit protection, making it suitable for reliable industrial automation applications.
| Parameter | Specification |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Model | X20DO8322 |
| Product Type | Digital Output Module |
| Series | X20 I/O System |
| Output Channels | 8 Digital Outputs |
| Output Voltage | 24 VDC |
| Output Type | Source Output (PNP) |
| Connection Type | 1-wire connection |
| Rated Output Current | 0.5 A per channel |
| Total Output Current | 4 A |
| Switching Delay | <300 μs |
| Switching Frequency | Max. 500 Hz (resistive load) |
| Output Protection | Thermal shutdown / Short-circuit protection |
| Isolation Voltage | 500 V between channel and bus |
| Bus Power Consumption | 0.26 W |
| Internal I/O Power Consumption | 0.8 W |
| Protection Rating | IP20 |
| Mounting | B&R X20 Bus System |
| Terminal Block | X20TB12 |
| Bus Module | X20BM11 / X20BM15 |

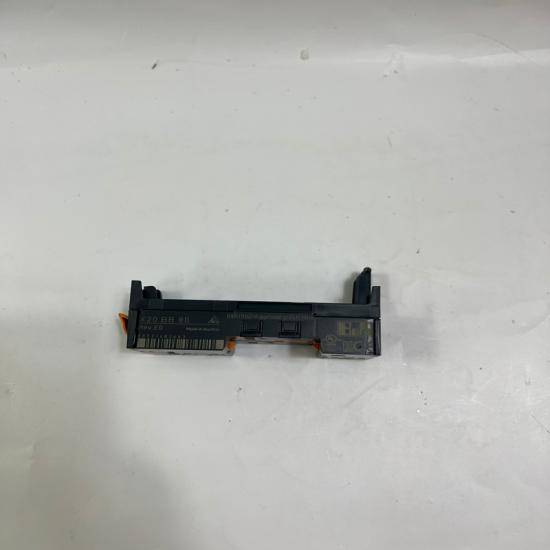

The structure and details of the product：
