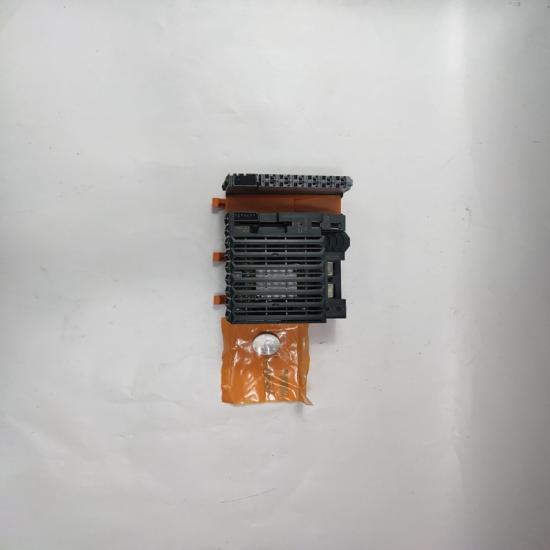

B&R X20BM01 Backplane Module

Product Description

The B&R X20BM01 is a Bus Module (Backplane Base Module) designed for the B&R X20 I/O System. It serves as the basic mechanical and electrical base for X20 electronic modules, providing the internal bus connection and power distribution between individual I/O modules.

The X20BM01 is mainly used as the foundation for creating power supply groups and potential groups within an X20 I/O station. The internal I/O power supply is interrupted to the left side, allowing flexible configuration of different power segments.

Detailed Specifications

Advantages & Features

• Basic backplane module for B&R X20 I/O systems
• Provides internal communication bus connection
• Supports modular expansion of X20 I/O stations
• Enables creation of independent power supply groups
• Separates electronic module and wiring components for easier maintenance
• Compact DIN rail mounting design
• Supports industrial environments with IP20 protection

Applications

• B&R X20 PLC Control Systems
• Distributed I/O Stations
• Factory Automation Equipment
• Machine Control Systems
• Packaging Machinery
• Robotics and Motion Control Systems
• Industrial Control Cabinets

Precautions

• Confirm compatibility with the B&R X20 system before installation.
• Install the correct electronic module on the corresponding bus module.
• Ensure proper DIN rail mounting.
• Check 24 VDC power distribution configuration.
• Disconnect power before replacing the module.
