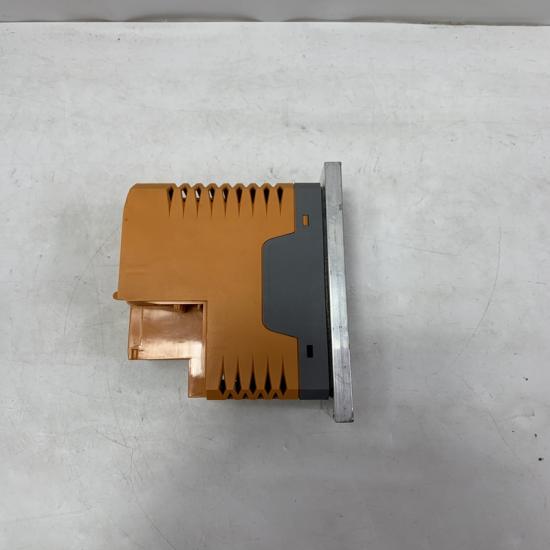

B&R 8BVI0220HCSS.000-1 Servo Drive Module

B&R 8BVI0220HCSS.000-1 Servo Drive Module (ACOPOSmulti Power Module)





The B&R 8BVI0220HCSS.000-1 is a high-power servo inverter / drive module from the B&R ACOPOSmulti system. It is a single-axis power stage module that controls AC servo motors with high precision and is designed for industrial multi-axis motion systems.

It is not a PLC, but the core power amplifier part of a motion control system.

Key Specifications

• Model: 8BVI0220HCSS.000-1
• Brand: B&R (Bernecker + Rainer)
• Series: ACOPOSmulti
• Product Type: Servo Drive / Inverter Power Module
• DC Bus Voltage:
  • 750 V DC nominal
• Motor Output:
  • 3-phase U/V/W servo motor output
• Continuous Power:
  • Up to ~16.2 kW class
• Peak Current:
  • Up to 55 A
• Switching Frequency:
  • 5 / 10 / 20 kHz selectable
• Cooling Type:
  • Cold plate or through-mount cooling
• Safety:
  • Supports SafeMOTION / openSAFETY

Function (Simple Explanation)

This module is used to drive and control servo motors with high power precision:

DC Bus (750V)
↓
8BVI0220HCSS Servo Drive Module
↓
3-phase output (U/V/W)
↓
Servo Motor
↑
Encoder feedback (via separate module like 8BAC0120)

So it handles:

• Motor power switching
• Torque control
• Speed control
• Positioning (via system controller)

Features & Advantages

• High power density (up to ~16 kW continuous)
• Very fast switching control (up to 20 kHz)
• Integrated protection:
  • Overload
  • Short circuit
  • Ground fault
• Modular ACOPOSmulti architecture (scalable system)
• Supports high-end multi-axis machines
• Safe motion support (industrial safety systems)
• Flexible cooling (cold plate / rack integration)

System Role (Important)

Typical B&R motion system:

PLC / Motion Controller
↓
ACOPOSmulti controller backplane
↓
8BVI0220HCSS Drive Module
↓
Servo Motor
↑
Encoder module (8BAC series)

So:

• ❌ Not a PLC CPU
• ❌ Not an encoder module
• ❌ Not a communication module
• ✔ It is a servo power stage (inverter module)

Applications

• CNC machine tools
• Robotics systems
• High-speed packaging lines
• Printing machinery
• Semiconductor equipment
• Multi-axis automation systems
