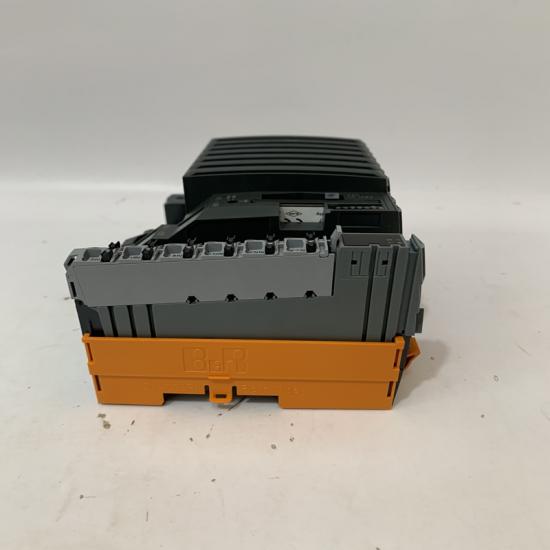

B&R 80VD100PD.C022-01 Drive Module

Product Overview

Brand: B&R (Bernecker & Rainer)
Series: ACOPOSmicro
Model: 80VD100PD.C022-01
Product Type: Servo Drive / Inverter Module
Function: The B&R 80VD100PD.C022-01 is an ACOPOSmicro inverter module designed for controlling two servo motors. It integrates POWERLINK communication, resolver feedback interfaces, digital I/O, and safety functions for compact multi-axis motion control applications.

Technical Specifications

General Data

• Brand: B&R
• Model: 80VD100PD.C022-01
• Series: ACOPOSmicro
• Type: Inverter / Servo Drive Module
• Application: Two-axis servo motor control
• Motor Connection: 2 servo motor outputs
• Feedback Interface: 2 × Resolver interfaces
• Communication: X2X Link / POWERLINK
• Protection Rating: IP20
• Mounting: Screw mounting with heat spreader on mounting plate or cold plate
• Weight: Approx. 750 g
• Dimensions: 65 × 134 × 95 mm

Power Specifications

• Control Supply Voltage: 24 VDC ±25%
• Power Supply Voltage: 24–64 VDC ±25%
• CPU Power Consumption: Max. 8 W
• Continuous Power Consumption: Approx. 1.31 kW
• Inrush Current: Max. 10 A
• Reverse Polarity Protection: Yes
• Overvoltage / Undervoltage Monitoring: Supported

Motor Control Specifications

• Number of Motor Axes: 2
• Continuous Output Current: 8 A RMS
• Peak Current: Up to 11.3 A RMS (depending on operating conditions)
• Maximum Motor Current: 10.6 A RMS / 15 A peak per motor
• Maximum Module Current: 30 A peak
• Switching Frequency: 5 / 10 / 20 / 40 kHz
• Maximum Output Frequency: 598 Hz
• Motor Cable Length: Max. 25 m

Communication Interfaces

POWERLINK

• Real-time Ethernet communication
• High-speed connection with B&R PLC systems
• LED status indication
• Supports synchronized motion control applications

Resolver Interface

• Quantity: 2 channels
• Resolver feedback support
• Angular position resolution: 14 bits/revolution
• Short-circuit protection included

I/O Specifications

Digital Inputs

• Quantity: 2
• Voltage: 24 VDC
• Input Type: Sink
• Input Current: Approx. 7.5 mA
• Can be used as trigger inputs
• Switching threshold:
  • ON: >15 VDC
  • OFF: <5 VDC

Enable Input

• Quantity: 1
• Nominal Voltage: 24 VDC
• Safety enable function supported

Digital Output

• Quantity: 1
• Voltage: 24 VDC
• Current: 1 A

Advantages & Features

Dual-Axis Servo Control

Supports two servo motors in one compact module, reducing cabinet space and simplifying machine design.

High-Speed POWERLINK Communication

Provides deterministic real-time communication for synchronized motion control.

Resolver Feedback Support

Allows accurate motor position feedback for demanding motion applications.

Compact ACOPOSmicro Design

Small size makes it suitable for space-limited automation equipment.

Integrated Diagnostics

Provides LED status indicators and software diagnostics for easier maintenance.

Flexible Industrial I/O

Built-in digital inputs and outputs allow direct connection to sensors and control signals.

Typical Applications

• Industrial automation equipment
• Packaging machinery
• Robotics systems
• Pick-and-place machines
• CNC equipment
• Assembly automation
• Precision motion control systems
• Machine tools

Compatible Accessories

• B&R ACOPOSmicro terminal block sets
• Resolver cables
• Servo motor power cables
• B&R POWERLINK communication cables

Precautions

• Confirm compatibility with B&R ACOPOSmicro systems before installation.
• Verify motor voltage, current, and resolver type.
• Ensure 24–64VDC power supply is within specification.
• Configure motor parameters correctly in Automation Studio.
• Use proper grounding and EMC protection.
• Install terminal blocks separately as required.
• Ensure sufficient heat dissipation during operation.
• Disconnect power before wiring or replacement.
