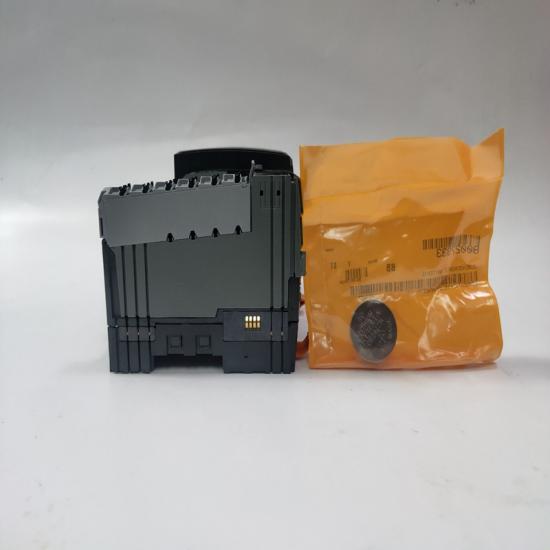

B&R 5DLSDL.1000-00 Display Module

Product Overview

Brand: B&R (Bernecker & Rainer)
Series: Automation Panel 900
Model: 5DLSDL.1000-00
Product Type: Display Interface Module / SDL Receiver Module
Function: The B&R 5DLSDL.1000-00 is an Automation Panel Link SDL (Smart Display Link) module used for connecting B&R Industrial PCs with Automation Panel 900 displays. It transmits display signals, touch screen data, USB 1.1, matrix keys, LED signals, and service data through a single SDL cable.

Technical Specifications

General Data

• Brand: B&R
• Model: 5DLSDL.1000-00
• Series: Automation Panel 900
• Module Type: SDL Display Link Receiver
• B&R ID Code: 0x1C53
• Interface: SDL (Smart Display Link)
• Compatible System: B&R Automation Panel 900
• Protection Rating: Industrial panel component
• Installation: Display panel mounting

Communication Interface

SDL (Smart Display Link)

• Single cable communication interface
• Transmits:
  • Display data
  • Touch screen signals
  • USB 1.1 data
  • Matrix key signals
  • LED data
  • Service information
• Maximum transmission distance:
  • Up to 40 m between B&R Industrial PC and Automation Panel

Electrical Specifications

• Supply Voltage: 24 VDC ±25%
• Maximum Current: 4.2 A
• Typical Power Consumption: 3 W
• Overvoltage Category: II according to EN 61131-2
• Connection: 24VDC power connection

Mechanical Features

• Mounting: Integrated into Automation Panel 900 systems
• Panel Interface: SDL IN
• Panel OUT: Not available
• Locating Screws: 2 pcs
• Maximum Tightening Torque: 0.5 Nm

Advantages & Features

Single Cable Communication

SDL technology allows multiple communication signals to be transferred through one cable, reducing wiring complexity.

Long-Distance Display Connection

Supports remote installation of Automation Panel displays up to 40 meters away from the industrial PC.

Integrated USB Transmission

USB 1.1 communication is transferred through SDL without requiring additional extension modules.

High System Integration

Combines display, touch, keyboard, LED, and service communication into one interface.

Reliable Industrial Design

Designed for B&R industrial automation environments with stable communication performance.

Easy Maintenance

Simplifies system wiring and troubleshooting in industrial control applications.

Typical Applications

• Industrial HMI systems
• Machine operator panels
• Factory automation equipment
• CNC machines
• Packaging machinery
• Robotics systems
• Production line control
• Industrial PC visualization systems

Precautions

• Confirm compatibility with B&R Automation Panel 900 systems before installation.
• Use the correct SDL cable for connection.
• Ensure 24VDC power supply polarity is correct.
• Do not exceed the recommended SDL cable length.
• Protect cables from excessive bending and mechanical damage.
• Disconnect power before replacing the module.
• Check display and touch communication after installation.
• Ensure proper grounding and EMC protection.
