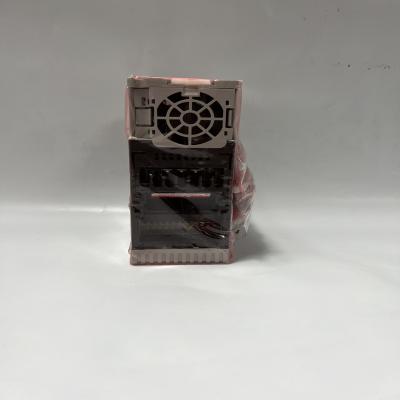

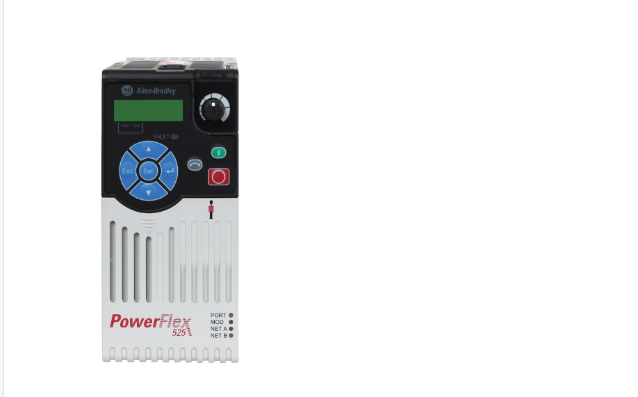

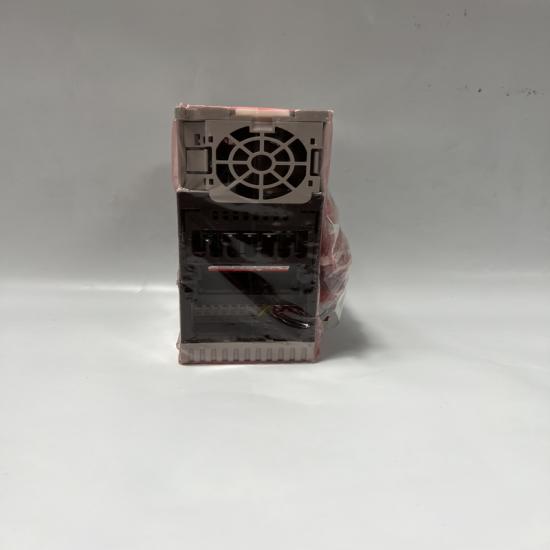

Allen-Bradley 25B-D4P0N114 PowerFlex 525 AC Drive

Product Description

The 25B-D4P0N114 is a PowerFlex 525 series AC drive designed for industrial motor control applications, offering 1.5 kW (2 HP) output power with 380–480V AC input. It features embedded EtherNet/IP communication, USB programming, and modular design, making it ideal for pumps, fans, conveyors, and mixers in industrial automation .

Key Features

Motor Control & Performance
- Sensorless Vector Control (SVC) for improved low-speed torque .
- 150% overload for 60 sec (200% for 3 sec) for heavy-start applications .
Communication & Integration
- Embedded EtherNet/IP with dual-port switch for daisy-chaining .
- USB programming port for quick parameter adjustments .
Safety & Protection
- Safe Torque Off (STO) certified for PLd/SIL2 Cat 3 safety .
- Short-circuit and overvoltage protection .
Compact & Modular Design
- Removable control module for pre-configuration .
- DIN rail or panel mounting options .
Environmental Adaptability
- Operating temperature: 0°C to +60°C (with derating above 50°C) .
- IP20 protection (requires enclosure for harsh environments) .

Technical Specifications

Parameter	Value
Model	25B-D4P0N114
Input Voltage	380–480V AC, 3-phase
Output Power	1.5 kW (2 HP)
Output Current	4.0 A
Control Method	V/F, Sensorless Vector
Communication	EtherNet/IP, USB
Dimensions (W×H×D)	90 × 158 × 130 mm
Weight	~1.5 kg

Applications

Pump & Fan Control (energy-saving speed regulation) .
Conveyor Systems (adjustable speed for material handling) .
Packaging Machinery (process synchronization).

Installation & Usage Notes

Wiring
- Use shielded cables for control signals to reduce EMI .
- Ensure proper grounding per NEC/CE standards .
Configuration
- Configure motor nameplate data (voltage, current, RPM) .
- Adjust acceleration/deceleration ramps for load requirements .
Maintenance
- Regularly check cooling vents for dust accumulation .
