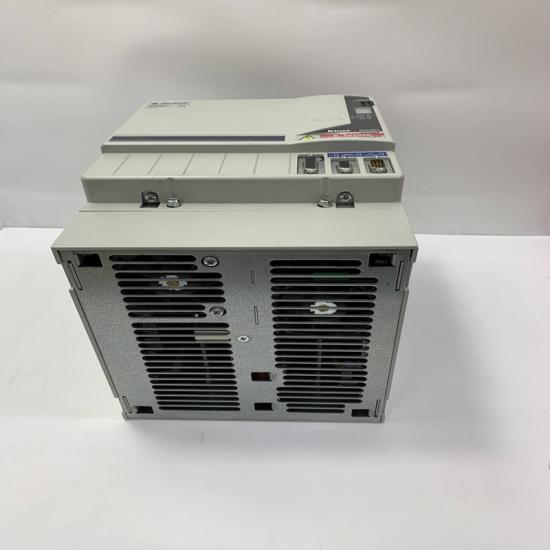

Allen-Bradley 2094-BC04-M03-S Servo Control Module (Kinetix 6000 IAM)





Product Overview

The Allen-Bradley 2094-BC04-M03-S is a Kinetix 6000 Integrated Axis Module (IAM) used in multi-axis servo motion control systems.

It is the main power + converter module in a Kinetix 6000 shared DC bus system, providing energy to multiple servo axis modules.

Key Specifications (verified)

• Brand: Allen-Bradley (Rockwell Automation)
• Series: Kinetix 6000
• Model: 2094-BC04-M03-S
• Type: Integrated Axis Module (Converter + Inverter + Control base)
• Input Voltage: 324–528 VAC, 3-phase (400/480V class)
• Frequency: 47–63 Hz
• DC Bus Output: ~650 VDC shared bus system
• Current Rating: ~44 A RMS input (system dependent)
• Power Class: ~28 kW converter class system
• Safety Function: Safe Torque Off (STO)
• System Type: Multi-axis shared DC bus architecture

What It Does (Simple Explanation)

This module is the core power unit of a Kinetix 6000 rack system:

1. AC 3-phase power enters the module
2. It converts AC → DC bus (~650V)
3. The DC bus is shared with all axis modules
4. Each axis module drives its own servo motor

Key Features

• Integrated converter + system control function
• Shared DC bus architecture for multi-axis systems
• Supports high-performance servo motion control
• Safe Torque Off (STO) safety function
• High efficiency industrial drive design
• Modular expansion with multiple axis modules

Advantages

• Reduces wiring complexity (single DC bus system)
• Enables synchronized multi-axis motion
• High power capacity for industrial machines
• Strong integration with Rockwell PLC systems
• Stable performance for continuous operation

Applications

• Packaging machines
• Printing equipment
• Robotics systems
• CNC and precision motion systems
• Multi-axis assembly lines
• High-speed automation equipment

Important Precautions

•
• Must be used with:
  • Kinetix 6000 power rail system
  • Axis modules (BM series)
  • SERCOS / Logix motion controller
• High voltage hazard:
  • DC bus can remain charged after power-off
• Incorrect system matching may cause:
  • DC bus faults
  • axis communication errors
  • full system shutdown
• Proper cooling and rack configuration required
