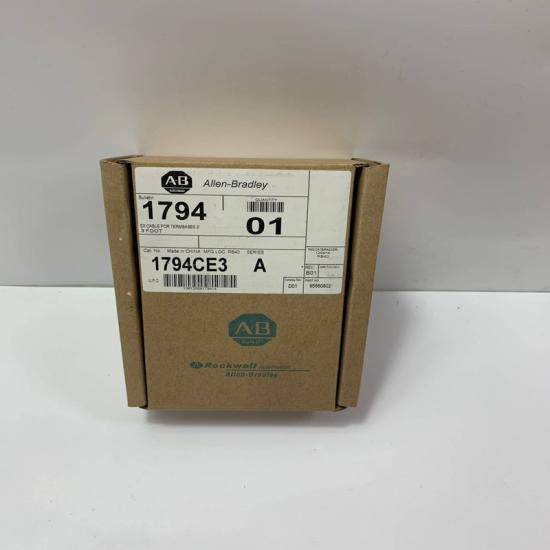

Allen-Bradley 1794-CE3 FLEX I/O Terminal Base Unit

1. Product Description

The 1794-CE3 is a 3-foot (0.9m) extension cable designed for Allen-Bradley’s FLEX I/O system, enabling flexible module arrangement in industrial automation setups. It allows users to split a single row of I/O modules into two smaller rows or arrange them in vertical and horizontal configurations, optimizing space in control panels .

2. Key Features

Flexible Layout Options – Supports horizontal or vertical mounting, enabling customized I/O module arrangements .
Tool-less Installation – Features DIN rail or panel mounting for quick setup without additional hardware .
Wide Compatibility – Works with FLEX I/O modules and adapters, including 1794-FLA for FlexLogix controllers .
Robust Industrial Design – Operates in 0°C to 60°C (32°F to 140°F) environments, suitable for enclosed cabinets .
Open-style Enclosure – No external housing, allowing for compact integration in control systems .

3. Technical Specifications

Parameter	Specification
Cable Length	3 ft (0.9 m)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Mounting Options	DIN rail, panel, or wall-mounted
Compatibility	FLEX I/O 1794 series modules & adapters
Certifications	CE, UL, CSA, GOST (varies by region)

4. Applications

Distributed I/O Systems – Extends local I/O configurations in FlexLogix and ControlLogix setups .
Space Optimization – Splits long I/O rows into dual-row or mixed vertical/horizontal layouts .
Industrial Automation – Used in manufacturing, energy, and process control for modular I/O expansion .

5. Installation & Precautions

Avoid Overbending – Maintain a minimum bend radius to prevent cable damage.
Temperature Limits – Do not exceed 60°C ambient temperature .
Compatibility Check – Ensure proper alignment with 1794-FLA adapters for FlexLogix integration.
