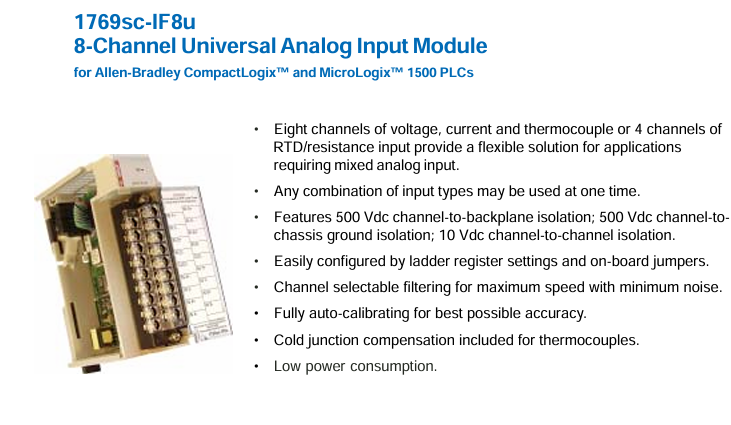

Allen-Bradley 1769SC-IF8U Compact I/O 8-Channel Universal Analog Input Module

Core Functionality

The Allen-Bradley 1769SC-IF8U is a universal 8-channel analog input module from the Compact I/O series, designed to replace dedicated analog, thermocouple, and RTD modules with a single configurable unit. It supports 32 programmable input types per channel, including voltage, current, thermocouples, and RTDs, making it ideal for space-constrained industrial applications requiring flexible signal acquisition .

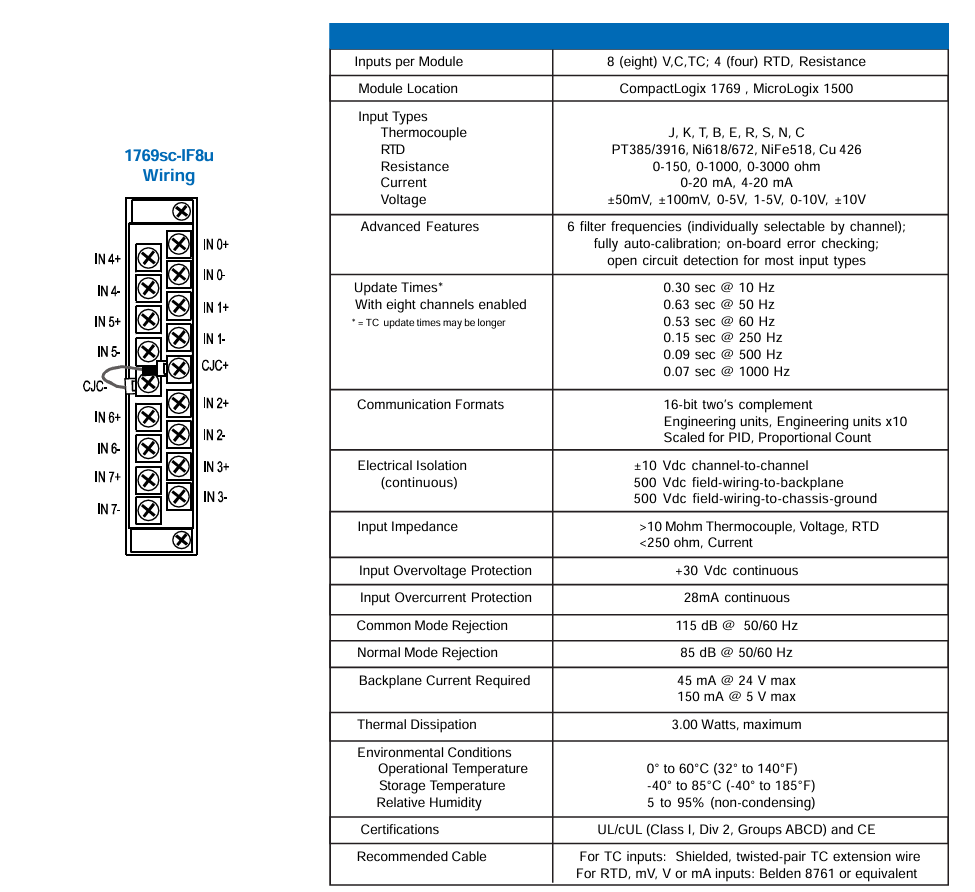

Key Technical Specifications

Key Features & Benefits

1. Universal Input Flexibility

   • Replaces multiple dedicated modules (analog, RTD, thermocouple) with one configurable unit, reducing cabinet space and cost .

   • Per-channel programming for mixed signal types (e.g., 4–20mA sensors + Type J thermocouples) .

2. High Accuracy & Diagnostics

   • 16-bit resolution for precise analog measurements .

   • Open-circuit detection and over/under-range alerts for proactive maintenance .

3. Robust Industrial Design

   • DIN-rail or panel-mountable with finger-safe terminals .

   • IP20 protection (requires control cabinet installation) .

4. Seamless Integration

   • Compatible with CompactLogix 5370/5380 and Compact GuardLogix controllers .

   • Configurable via Studio 5000 Logix Designer with auto-generated I/O tags .

5. Safety & Compliance

   • SIL 2/PLd capable when used with safety controllers .

   • Conformal coating option for harsh environments .

Typical Applications

• Process Control: Batch monitoring with mixed sensor types (e.g., pressure transmitters + RTDs) .

• Energy Management: Power meter current/voltage input aggregation .

• HVAC Systems: Temperature (RTD) and airflow (4–20mA) monitoring .

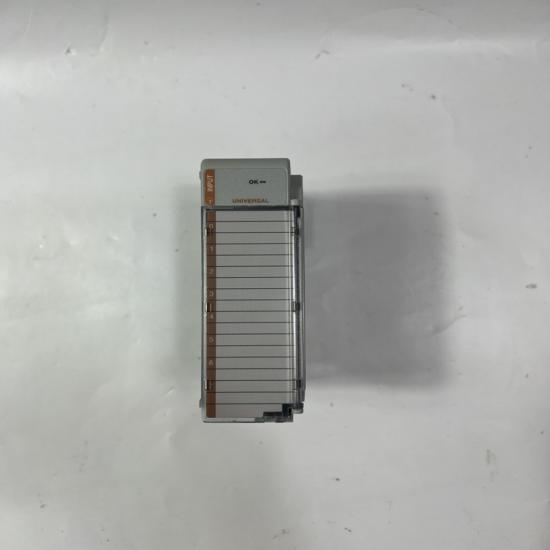

The structure and details of the product：
