Allen-Bradley 1769-PA4 CompactLogix I/O Power Supply

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

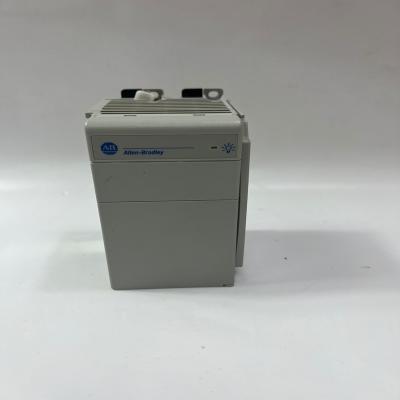

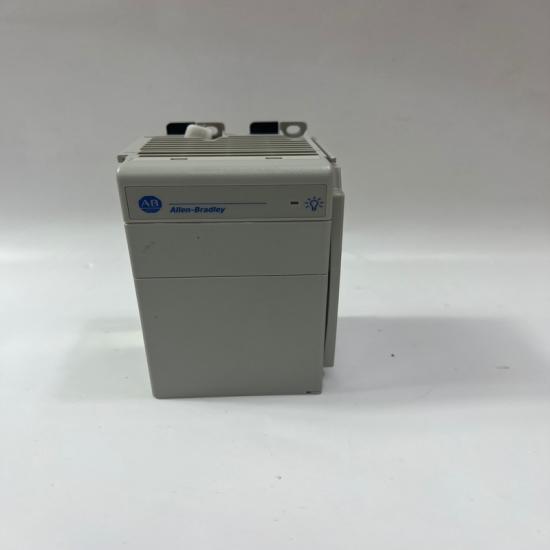

Allen-Bradley 1769-PA4 CompactLogix Power Supply

Product Description

The 1769-PA4 is a power supply module designed for Allen-Bradley CompactLogix control systems, providing 85–265V AC input and delivering 5V DC (4A) and 24V DC (2A) outputs to power CompactLogix controllers, I/O modules, and communication interfaces .

Key Features

1. Wide Input Voltage Range

   • 85–132V AC or 170–265V AC (selectable via switch) .

   • 47–63 Hz frequency compatibility .

2. High Power Capacity

   • 4.0A @ 5V DC and 2.0A @ 24V DC .

   • Supports up to 16 modules (8 on each side) .

3. Compact & Modular Design

   • DIN rail or panel mounting (dimensions: ~70 × 87 × 118 mm) .

   • Hot-swappable (RIUP compliant) for reduced downtime .

4. Safety & Protection

   • Non-replaceable fuse for overcurrent protection .

   • LED status indicators for power monitoring .

5. Environmental Specifications

   • Operating temperature: 0°C to +60°C .

   • Protection rating: IP20 (requires enclosure for harsh environments) .

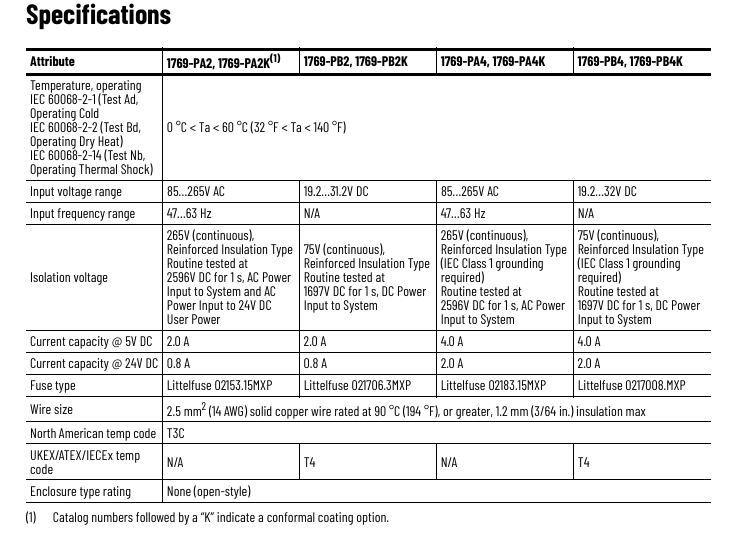

Technical Specifications

Applications

• CompactLogix L3x controllers (e.g., 1769-L31, 1769-L32E) .

• Industrial automation (motor control, conveyor systems) .

• Process control (pump stations, HVAC systems) .

Installation & Usage Notes

1. Wiring

   • Ensure proper grounding to avoid EMI interference .

   • Use shielded cables for noise immunity .

2. Maintenance

   • Regularly check terminal connections for corrosion .

   • Avoid overloading (max 4A @ 5V DC, 2A @ 24V DC) .

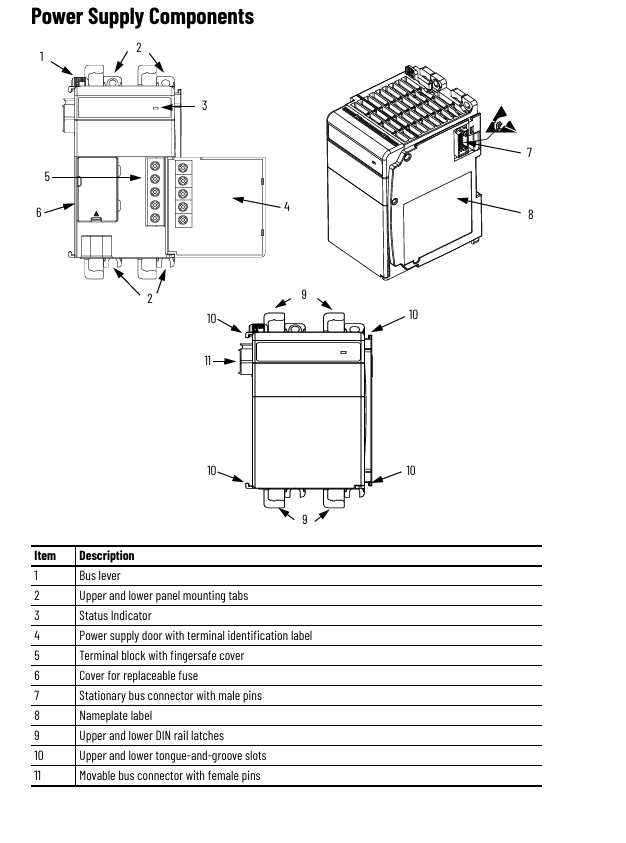

The structure and details of the product：
