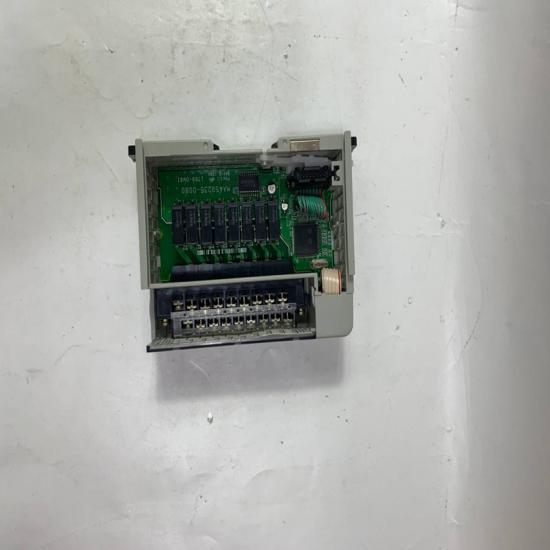

Allen-Bradley 1769-OW8 Relay Output Module

Allen-Bradley 1769-OW8 Relay Output Module

Product Description
Allen-Bradley 1769-OW8 is a Compact I/O relay output module designed for CompactLogix™ and MicroLogix™ 1500 control systems. It provides 8 relay output channels for switching AC and DC loads in industrial automation applications.

Technical Parameters

• Brand: Allen-Bradley
• Model: 1769-OW8
• Product Type: Relay Output Module
• Series: Compact I/O 1769 Series
• Output Channels: 8 Relay Outputs
• Output Type: Normally Open Relay Contact
• Output Voltage Range: 5…265V AC / 5…125V DC
• Maximum Current: Up to 2.5 A per output point
• Isolation Voltage: 1836V AC for 1 second
• Mounting: DIN Rail or Panel Mount
• Compatible Systems: CompactLogix / MicroLogix 1500 platforms
• Power Supply: 1769 Compact I/O system power

Advantages & Features

• 8-channel relay output design for flexible load control
• Supports both AC and DC voltage applications
• Provides electrical isolation between controller and field devices
• Suitable for controlling various industrial equipment
• Compact design saves cabinet installation space
• Reliable switching performance and long service life

Applications

• Industrial automation systems
• Factory production lines
• Motor starter and actuator control
• Machine control equipment
• HVAC and building automation systems
• Process control applications

Notes

• Confirm voltage and current requirements before wiring.
• Use proper protection devices for inductive loads.
• Ensure compatibility with the PLC controller and I/O configuration.
• Follow correct grounding and installation procedures.
